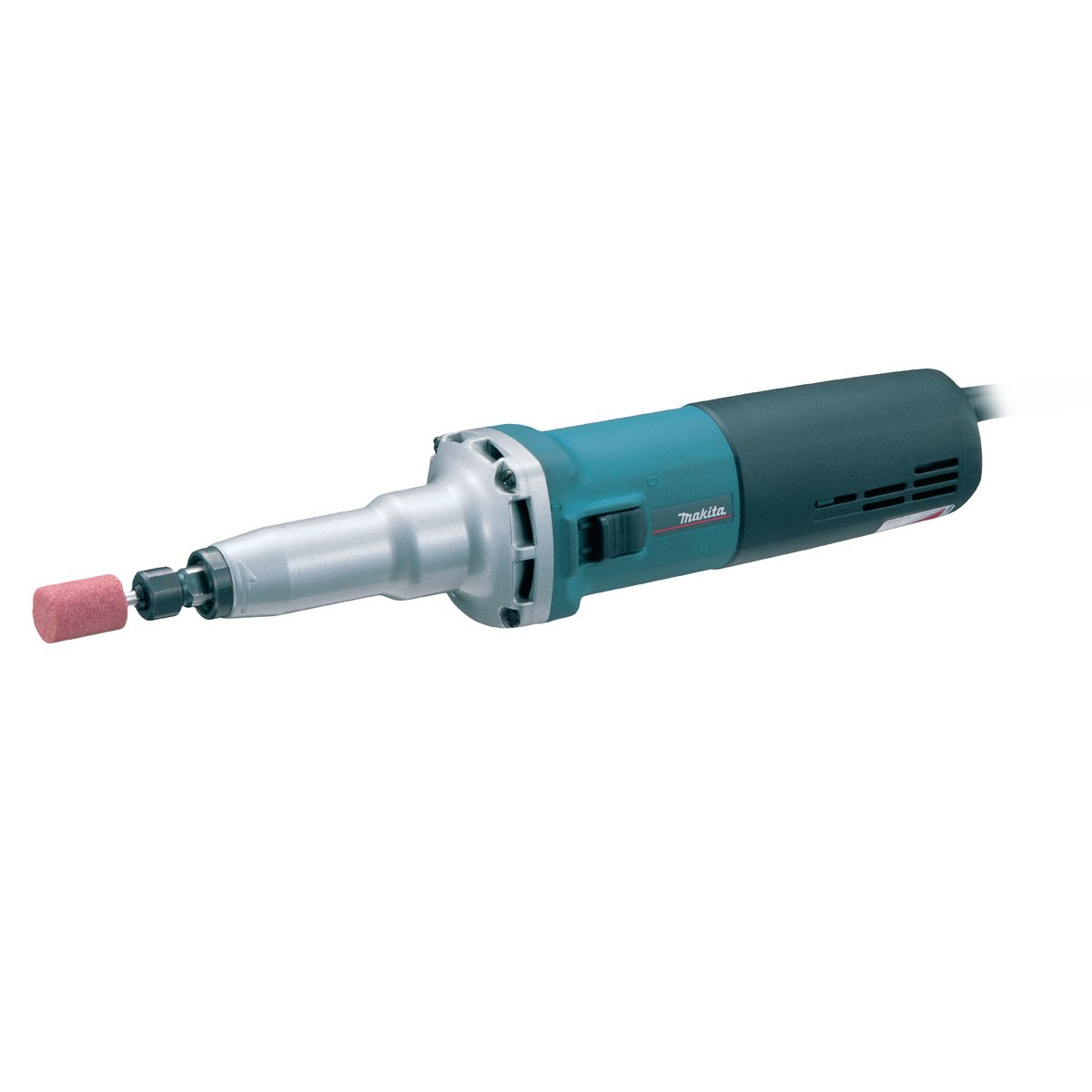

Makita GD0800C 1/4-Inch Die Grinder

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Item Weight
3.5 pounds
Brand Name
120  Volts
Power Source Type
1 Year

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 20 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Powerful 6.6 AMP motor for heavy professional die grinding applications
  • Electronic speed control maintains constant speed under load
  • Internal labyrinth construction protects bearings and motor from dust and debris for long tool life
  • Super Joint System (SJS) helps prevent gear damage
  • 1 year warranty
  • Super Joint System (SJS) technology helps prevent gear damage caused by accidental wheel binding
  • High power 6.6 AMP motor
  • Variable speed control dial enables user to match the speed to the application
  • Soft start feature for smooth start-ups
  • Slender double-neck aluminum gear housing for easy handling
  • Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
  • Double insulated
  • 1/4"" Collet Cone (192986-3)
  • Side Handle (192985-5)
  • Wrench #13 (781203-2)
  • Wrench #19
  • GS5000
  • 9557PBX1
  • 9564P
  • GA7031Y
  • GA9031Y
  • GA6020
  • GA5020Y
  • GA4534
  • GA4530
  • GA4030K
  • GD0601
  • 9565PC
  • 9564PC
  • 9566PC
  • GA6010Z
  • GA5020
  • GA5010Z
  • GD0600
  • GA9040S
  • GA9020
  • GA7040S
  • GA7020
  • GA7021
  • GA7011C
  • 9558PB
  • 9557PB
  • 9557NB
  • 9566CV
  • 9015A
  • GA7001L
  • 9005B
  • 9565CV
  • 9564CV

Package Details

Shipping Weight: 5.29 pounds
Package Size: 18.03 x 5.59 x 3.94 inches

Product Description

Makita's 1/4-Inch SJS Die Grinder combines 6.6 AMP power with comfort and motor-protection features for longer-lasting grinding performance. The GD0800C is engineered with Makita's innovative Super Joint System (SJS) to protect the gears for longer tool life.

View larger
GD0800C Features
POWER - High-speed motor (7,000 - 28,000 RPM) for maximum production
PERFORMANCE - Super Joint System (SJS) helps prevent gear damage
COMFORT - Slim double-neck design
DESIGN - Electronic speed control maintains constant speed even under load
INCLUDES - 1/4" collet cone, wrenches and side handle

Tool Specifications
No load speed7,000-28,000 RPM
Spindle thread5/8"-11 UNC
Overall length14-5/8"
Net weight3.5 lbs.
6.6 AMP Power with SJS to Protect Gears
The GD0800C is powered by a 6.6 AMP motor that delivers 7,000 to 28,000 RPM with soft start for smooth start-ups. The electronic speed control maintains constant speed under load, and a variable speed control dial allows the user to match the RPM to the application. Labyrinth construction protects the motor with a complex set of channels, prohibiting dust and contamination. In addition, the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation. The GD0800C is engineered with SJS, an innovation from Makita that protects the gears by automatically disengaging the motor should the grinding wheel accidentally catch or bind.

Comfort and Ergonomics
The GD0800C weighs just 3.5 pounds and is built with comfort and ergonomic features for extended use. The slender double-neck aluminum gear housing is designed for easy handling, and the slide switch is positioned on the small circumference barrel grip for easy operation. A side handle can be easily installed on the side of the tool.

Versatile Design for a Range of Applications

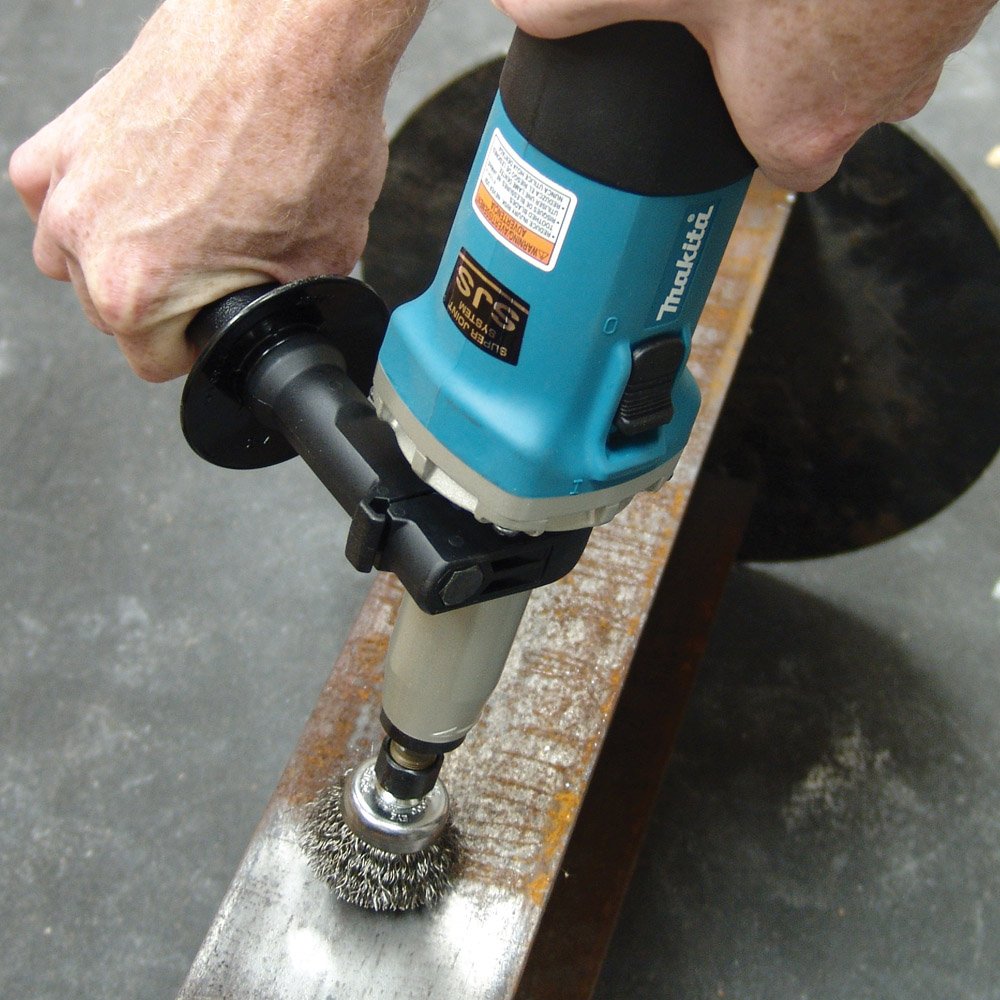

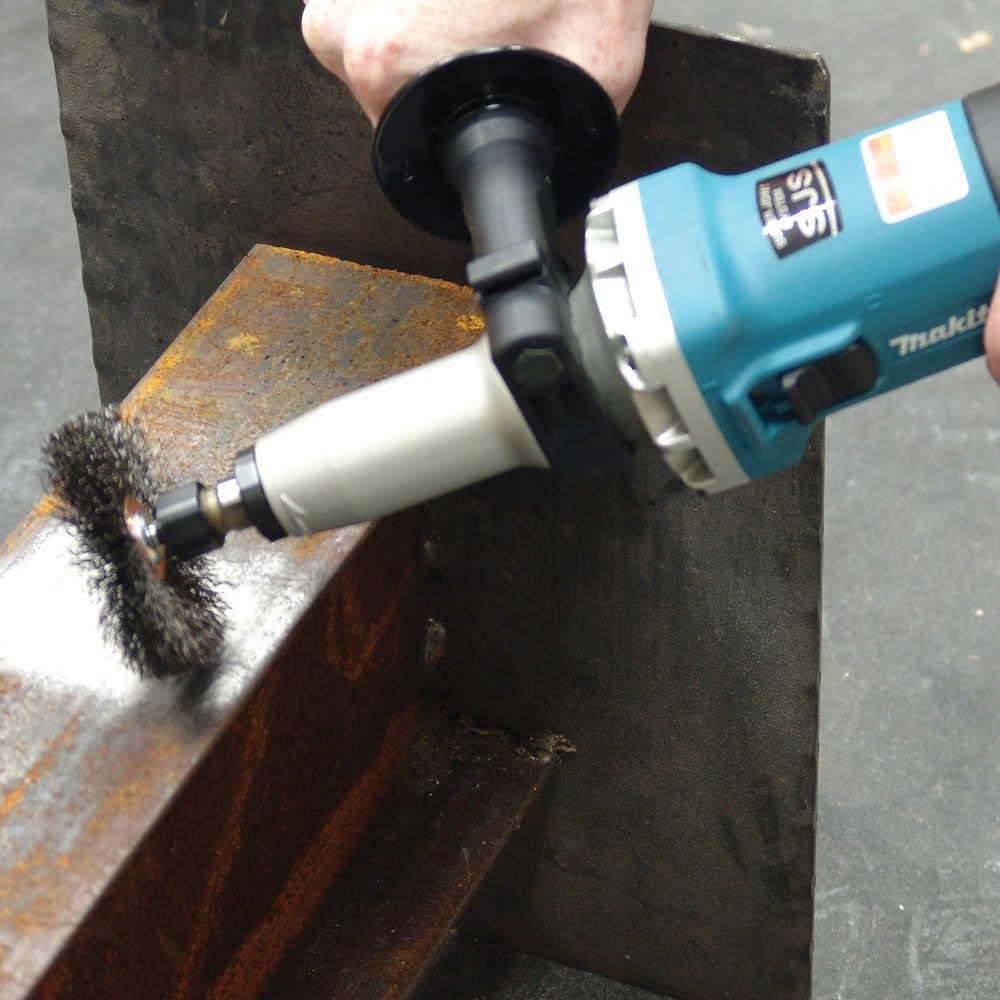

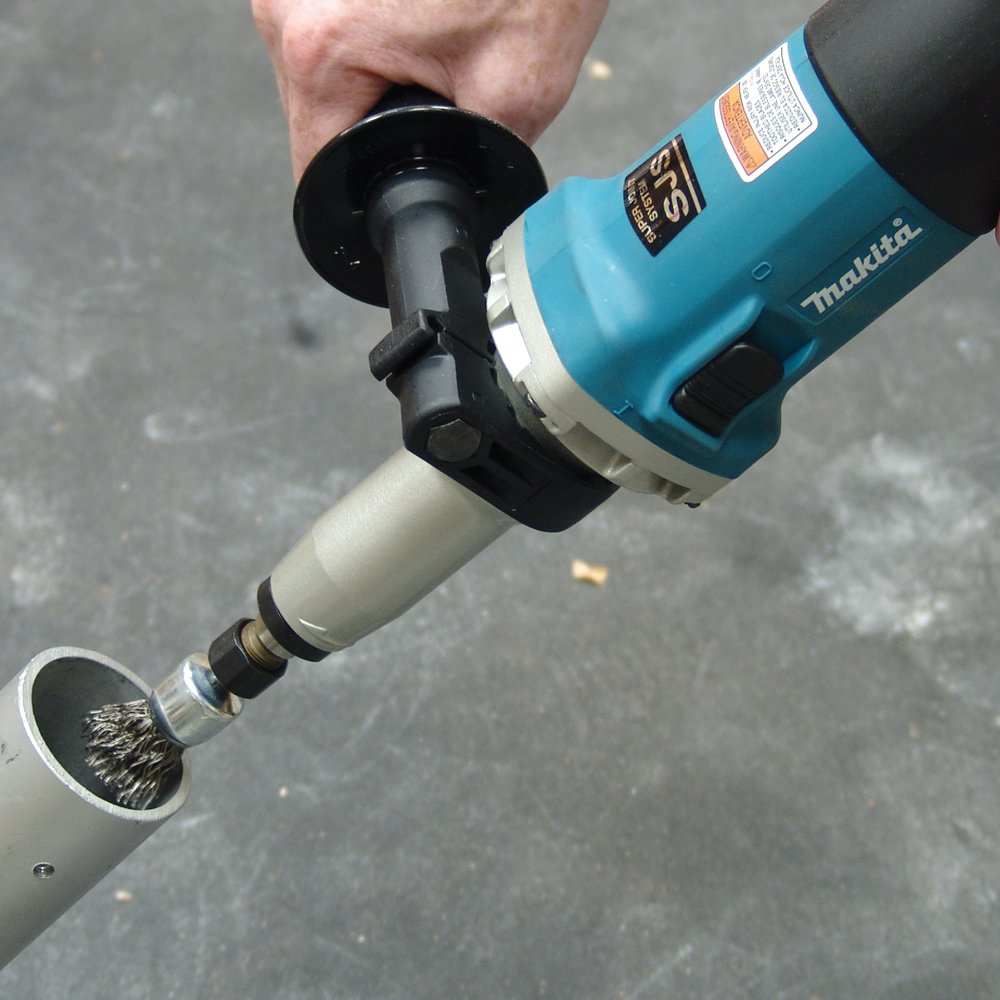

The GD0800C is a versatile and powerful die grinder engineered for a range of applications including pipe fittings and small scale grinding. The GD0800C is built for welders, plumbers, ship builders, automotive technicians, HVAC, and general contractors seeking a best-in-class industrial quality die grinder. The GD0800C is just another example of Makita's commitment to innovative technology and best-in-class engineering.

About Makita's Super Joint System (SJS)
Super Joint System (SJS) is an innovation from Makita engineering where the motor armature and spiral bevel gear are linked by a coil spring. If the grinding wheel catches or binds, the coil spring relaxes and disengages the gears from the motor. As the grinding wheel stops, the gears and motor are protected. Makita's growing line of SJS-equipped grinders includes models ranging from a 1/4-inch die grinder to a 7-inch angle grinder.

About Makita
Makita is a worldwide manufacturer of industrial quality power tools and offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are more compact and energy efficient, yet deliver industrial strength power and results. Makita U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit Makita is Best in Class Engineering.

Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. Please see for complete details.

What's in the Box
Makita GD0800C 6.6 AMP 1/4-Inch SJS Die Grinder, 1/4-inch collet, wrenches, and side handle.

From the Manufacturer

This 1/4-inch, variable-speed die grinder from Makita features electronic speed control for constant speeds under load. The slender double-neck die-cast aluminum gear housing on this unit means easy handling. Its labyrinth construction, a complex series of channels, protects the bearings and motor from dust and debris for long tool life. A speed control dial means optimal speed for various materials. Makita’s Super Joint System protects the gear, collet, and coupling by absorbing shock caused by accidental wheel lock. This unit is double insulated and includes a collet cone, and no. 13 and 19 wrenches.


  • Electronic speed control maintains constant speed under load
  • Slender double-neck die cast aluminum gear housing for easy handling
  • Internal labyrinth construction protects bearings and motor from dust and debris for long tool life
  • Speed control dial for setting the optimal speed for various materials
  • "SJS" Super Joint System absorbs shocks caused by accidental wheel lock during operation to protect gear, collet and coupling for longer tool life
  • Double insulated

What's in the Box

  • 1/4" Collet Cone (192986-3)
  • Side Handle (192985-5)
  • Wrench #13 (781203-2)
  • Wrench #19 (781206-6)


  • Collet: 1/8" - 1/4"
  • No load speed: 7,000 - 28,000 rpm
  • Amps: (115V) 6.6
  • Overall length: 14-5/8"
  • Net weight: 3.5 lbs.
  • Shipping weight: 5.2 lbs.
