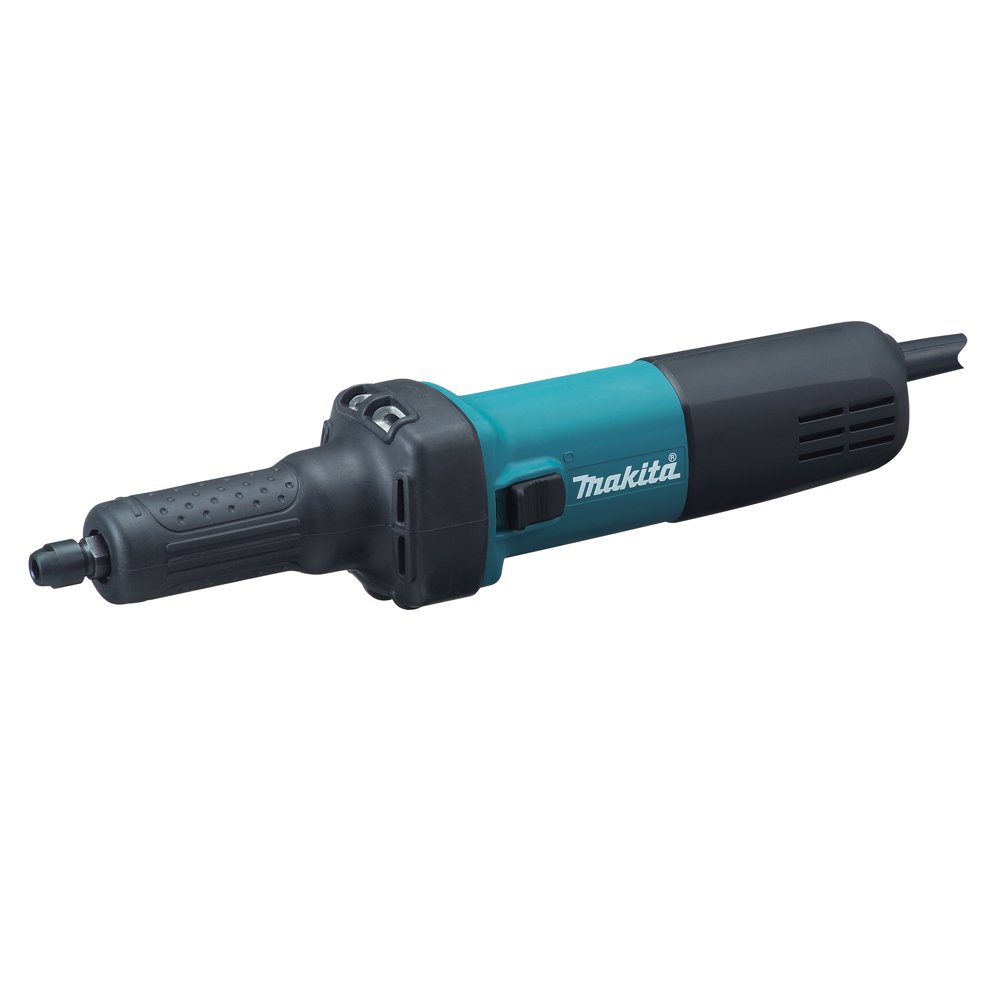

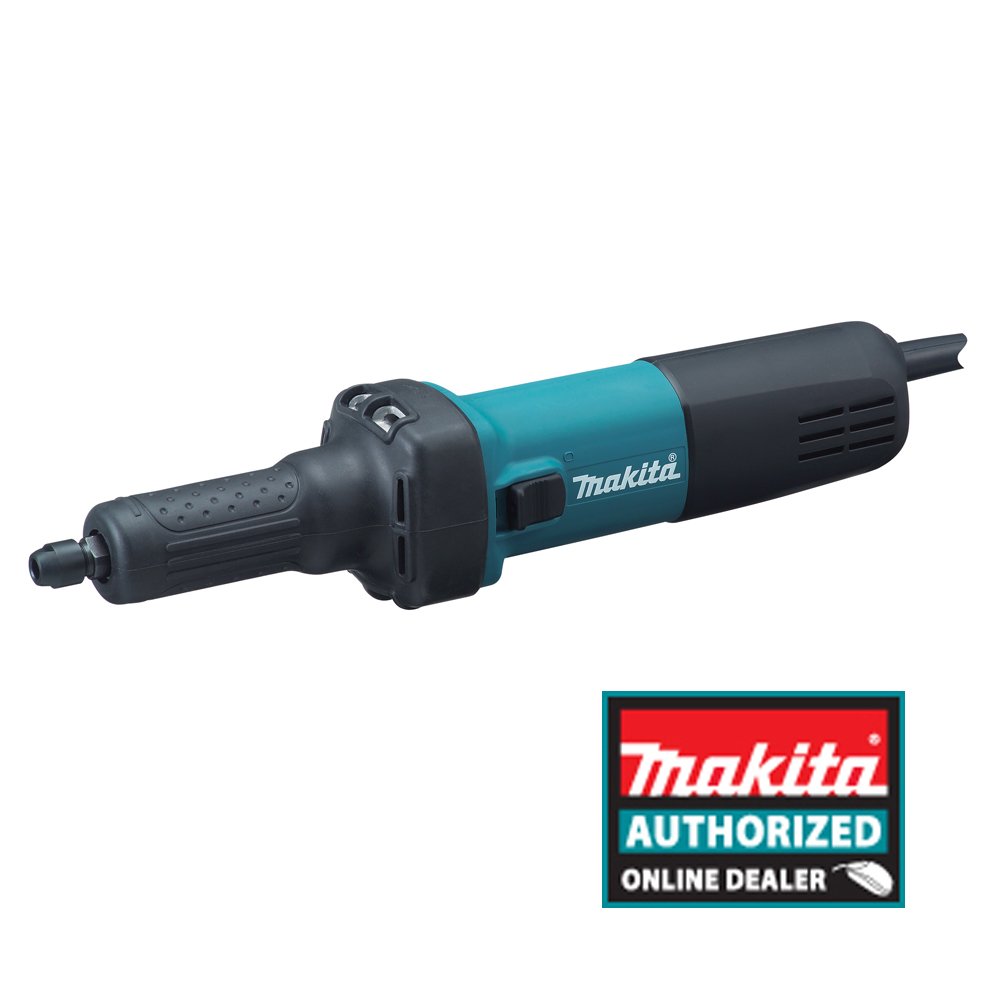

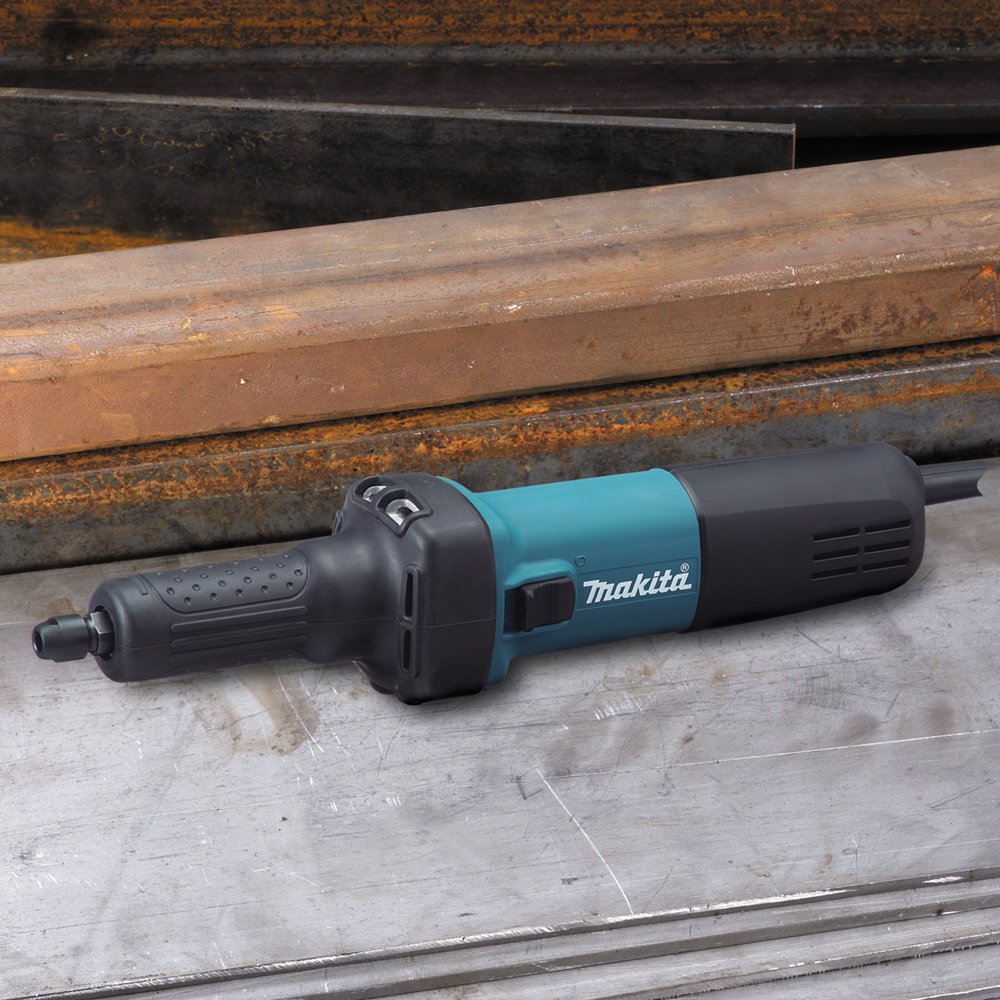

Makita GD0601 1/4-Inch Die Grinder

Be the first to review this item

ASIN B001ASC73E

Specifications for this item
External Testing Certification
0
Part Number
GD0601
Item Weight
3.5 pounds
UPC
088381078696
Brand Name
Makita
EAN
0088381078696
Power Source Type
electric-powered
Warranty
One Year Warranty
UNSPSC Code
27112749

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 19 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Includes: 2 ea.wrench #13 (781039-9) and collet cone 1/4"(763625-8)
  • Powerful motor with fast 25,000 RPM
  • Easy-to-handle at only 3.7 lbs.
  • Protective zig-zag varnish seals the armature from dust and debris for longer tool life
  • Solid aluminum housing with stepped neck for added durability
  • Vent slots designed to direct exhaust air away from the user
  • Round-shaped collet nut reduces the possibility of damage
  • AC/DC switch for use with alternative power source
  • Easy-to-operate slide switch
  • High heat resistance
  • 1/4"" Collet Cone (763625-8)
  • 2 ea. Wrench (781039-9)
  • GS5000
  • 9557PBX1
  • 9564P
  • GA7031Y
  • GA9031Y
  • GA6020
  • GA5020Y
  • GA4534
  • GA4530
  • GA4030K
  • 9565PC
  • 9564PC
  • 9566PC
  • GA6010Z
  • GA5020
  • GA5010Z
  • GD0600
  • GA9040S
  • GA9020
  • GA7040S
  • GA7020
  • GA7021
  • GA7011C
  • 9558PB
  • 9557PB
  • 9557NB
  • 9566CV
  • 9015A
  • GD0800C
  • GA7001L
  • 9005B
  • 9565CV
  • 9564CV

Package Details

Shipping Weight: 9.7 pounds
Package Size: 18.2 x 4.4 x 3.8 inches

Product Description

Amazon.com

Makita's 1/4-Inch Die Grinder (model GD0601) combines power and speed with motor-protection features for improved grinding performance. The GD0601 is engineered with a powerful AC/DC motor with 25,000 rpm in a slim body design, and a conveniently located slide-switch for on/off function. This combination of power and ease-of-use features makes the GD0601 ideal for a range of grinding tasks.

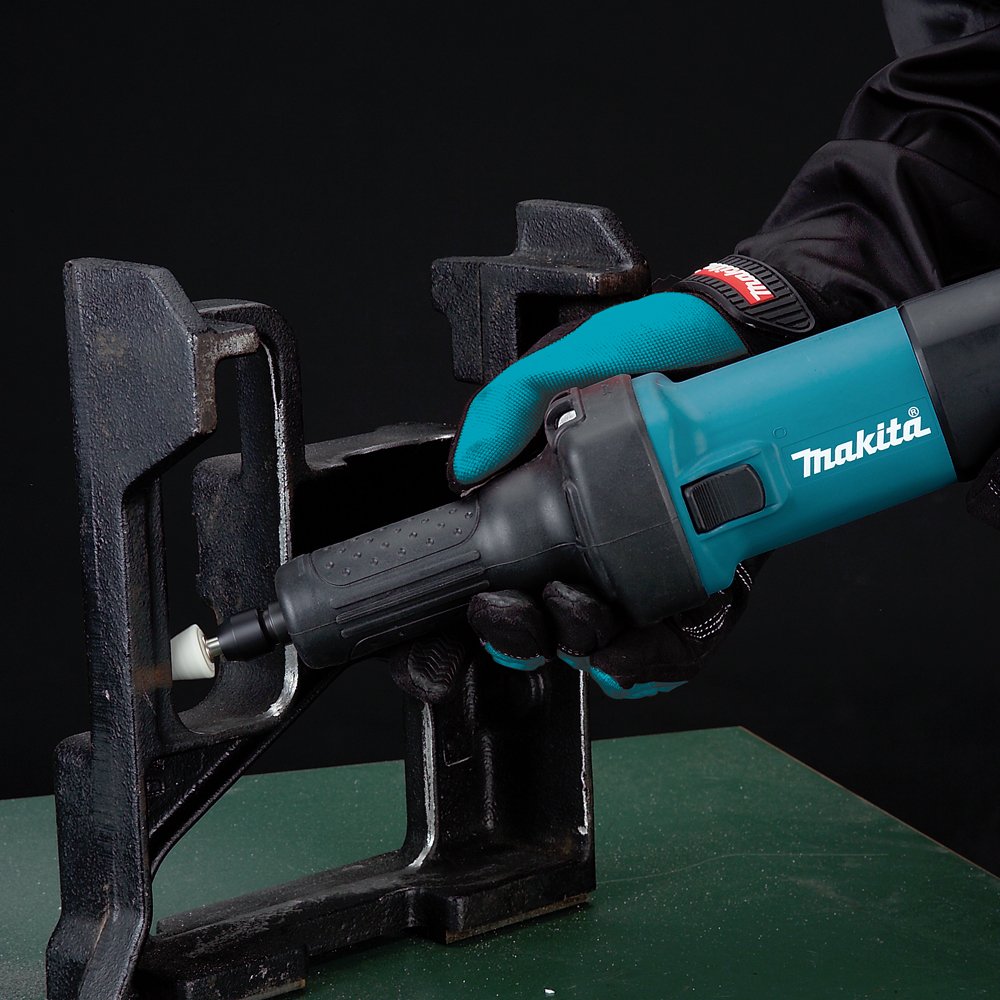

Key Action Shot
View larger
Feature 1Feature 2
Feature 3Feature 4
GD0601 Features
POWER - High-speed motor (25,000 rpm) runs cooler under continuous use for longer life

COMFORT - Slim barrel grip design for easy handling and weighs only 3.7 pounds

CONVENIENCE - Easy-to-operate slide-type on/off switch; AC/DC switch

DESIGN - Vent slots designed to direct the exhaust air away from the user

INCLUDES - 1/4-inch collet cone and wrenches

Tool Specifications
Tool Spec
Collet Size1/4"
No Load Speed25,000 rpm
Max Wheel Diameter1-1/2"
AMPS (120V)3.5
Overall Length14-1/8"
Net Weight3.7 lbs.
3.5 AMP Motor Delivers 25,000 RPM
The GD0601 is engineered with a Makita-built industrial motor that delivers 25,000 rpm. The motor is housed with front and rear air vents to run cooler under continuous use, extending the life of the grinder. The GD0601 includes an AC/DC switch for use with alternative power sources.

Motor Protection Features for Longer Tool Life
To protect the motor from debris, the grinder is built with a labyrinth construction that seals the motor and bearings by creating a complex set of channels, extending the life of the tool. In addition, the armature is sealed by a protective zig-zag varnish which prevents contamination by creating a barrier under rotation.

Comfort and Ergonomics
Makita has engineered comfort and ergonomics into the grinder for professional use all day long. The slide-switch is positioned on the small circumference barrel grip for improved handling and operation. The grinder has solid aluminum housing with a stepped-neck design, and is protected by a removable rubber boot. The front and rear air vents are engineered to keep the motor cool and blow debris away from the user for improved visibility.

Versatile Design for a Range of Applications
The GD0601 is built for a range of applications including pipe fittings and small-scale grinding. It is ideal for welders, plumbers, ship builders, automotive, HVAC, and more. The GD0601 is just another example of Makita's commitment to innovative technology and best-in-class engineering.

About Makita Grinders
Makita offers a wide range of grinders with power and protection features for industrial grinding and metalworking. Makita grinders are engineered with labyrinth construction to seal and protect the motor and bearings from contamination, and the protective zig-zag varnish seals the armature from dust and debris for longer tool life. Makita's growing line of grinders includes models ranging from a 1/4-inch die grinder to 9-inch angle grinders.

Makita LogoAbout Makita
Makita is a worldwide manufacturer of industrial quality power tools and offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are more compact and energy efficient, yet deliver industrial strength power and results. Makita U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit makitatools.com. Makita is Best in Class Engineering.

Warranty
Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. Please see makitatools.com for complete details.

What's in the Box
Makita GD0601 1/4-inch Die Grinder includes: 1/4-inch collet cone and wrenches.


From the Manufacturer

1/4" die grinder, easy to handle at only 3.5lbs with powerful 3.5 AMP motor with fast 25,000RPM.Anti-dust motor section.Solid aluminum housing with stepped neck for added durability.Vent slots designed to direct exhaust air away from the user.Round-shaped collet nut reduces the possibility of damage.Switch lever conveniently located for one hand operation.
