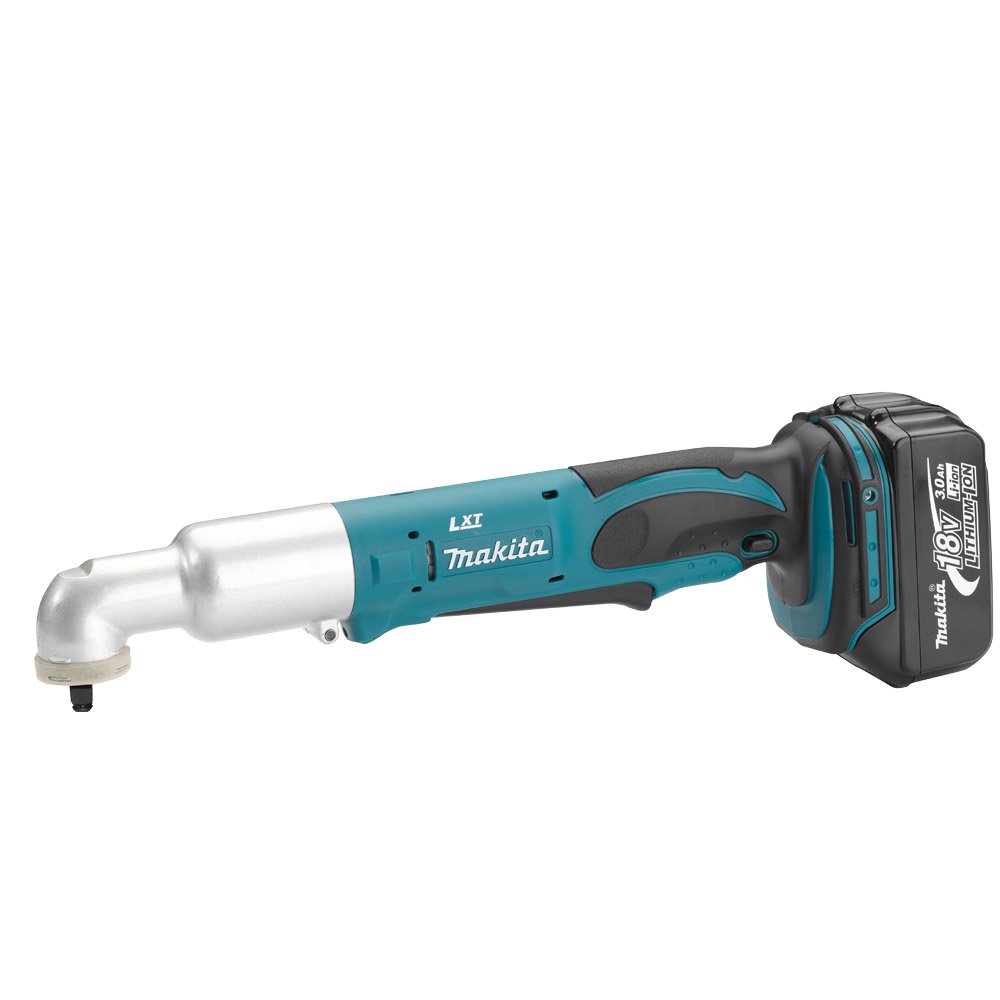

Makita BTL063 18-Volt LXT Lithium-Ion Cordless 3/8-Inch Angle Impact Wrench Kit

Be the first to review this item


Specifications for this item
Part Number
Item Weight
12.4 pounds
088381089104 , 094706341727
Brand Name
0094706341727 , 0088381089104
Power Source Type
3-year warranty on tool and 1-year warranty on battery & charger

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Makita-built variable speed motor delivers 530 in.lbs. of Max Torque, with 0-2,000 RPM and 0-3,000 IPM
  • Ergonomic, long narrow body design provides maximum reach in close quarters situations; weighs only 3.7 lbs. for reduced operator fatigue
  • Designed with convenient features such as a built-in L.E.D. light that illuminates the work area, and lbs. and a rugged tool belt clip
  • Makita LXT lithium-ion battery and charger produces 430% total lifetime work with 2.5X more cycles
  • 3-year warranty on tool; 1-year warranty on batteries and charger.
  • Makita-built motor delivers 44 ft.lbs. of Max Torque
  • Variable speed (0-2,000 RPM & 0-3,000 IPM) for a wide range of fastening applications
  • Compact 2-1/4"" angle head height for use in close quarters
  • Long, ergonomic body design provides maximum reach and weighs only 3.3 lbs. for reduced operator fatigue
  • Large conveniently located paddle switch for comfortable operation
  • Built-in L.E.D. light with afterglow illuminates the work area

Package Details

Shipping Weight: 12.4 pounds
Package Size: 23.3 x 10.2 x 7.2 inches

Product Description

Makita's 18V LXT Lithium-Ion Cordless 3/8-Inch Angle Impact Wrench delivers cordless impact power into tough to reach spaces. The versatile BTL063 packs plenty of torque for a wide range of fastening and loosening tasks, yet it weighs just 3.7 pounds with a slim design and over one foot of tool extension. The 3/8-inch square drive will fit impact-rated socket sets, making the BTL063 ideal for auto repair and product assembly.

View larger
BTL063 Features
POWER - Delivers 530 in.lbs. of Max Torque (0 - 3,000 IPM and 0 - 2,000 RPM) in tight spaces
COMFORT - Only 3.7 lbs. with ergonomic grip
CONVENIENCE - Built-in L.E.D. light and long narrow body for work in tight spaces
PERFORMANCE - LXT Li-Ion batteries charge in 30 minutes, run longer and deliver 2.5X more cycles
INCLUDES - (2) 18V LXT Lithium-Ion batteries, rapid charger and bag

Tool Specifications
Square drive3/8"
No load speed0-2,000 RPM
Impacts per minute0-3,000 IPM
Maximum torque530 in.lbs.

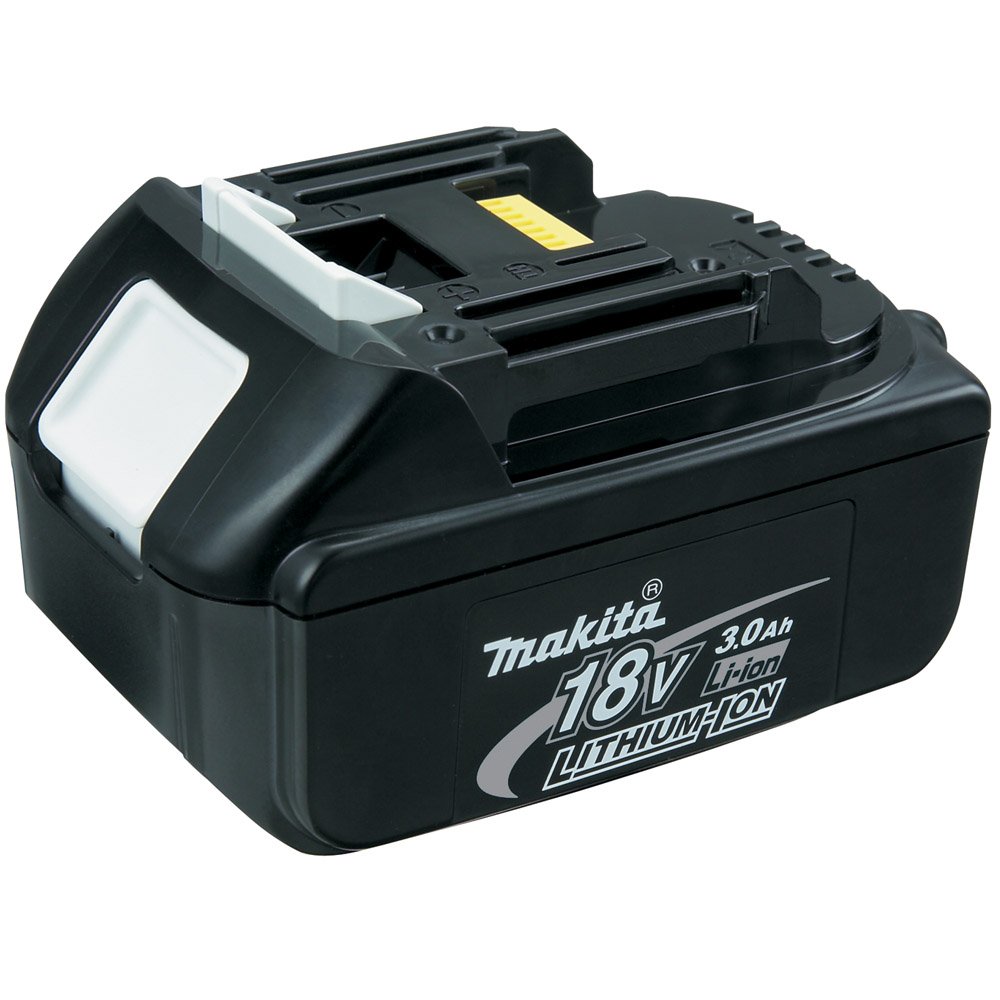

Battery18V LXT Lithium-Ion
Overall length15-1/4"
Net weight3.7 lbs. (w/battery)
Makita-Built Motor Engineered for Versatile Power
The BTL063 features a Makita-built four-pole maximum torque motor that delivers 530 in.lbs. of torque, 0-2,000 RPM, and 0-3,000 impacts per minute for a wide range of fastening tasks. Makita's proprietary hammer and anvil impact mechanism are manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power.

Ergonomic Design in a Compact Size

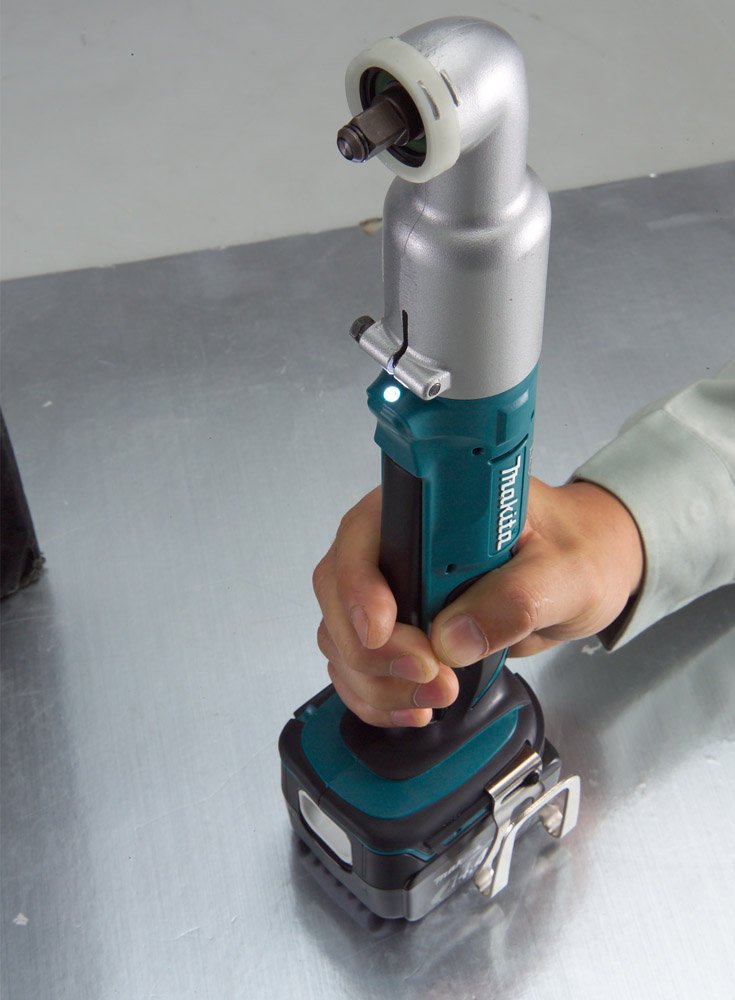

The BTL063 weighs just 3.7 pounds with over one foot of tool extension for extra reach into tough to reach spaces. In addition, the impact housing can be rotated into one of 8 radial positions for difficult hand/angle positions. The BTL063 is equipped with a soft grip handle and a large, conveniently located paddle switch for comfortable operation. The phosphorescent bumper ring is designed for quick location in dark spaces, and a built-in L.E.D. light illuminates the work surface for more efficient work. The convenient belt clip mounts on either side of the tool.

Versatile Design for a Range of Applications
The BTL063 brings cordless impact power into tough to reach spaces. The compact, angled design makes the BTL063 perfect for automotive, assembly, garage door installation, steel framing, roofing, electrical, and any other job that requires a best-in-class engineered angle impact wrench. The BTL063 is just another example of Makita's commitment to innovative technology and best in class engineering.

About Makita's 18V LXT Lithium-Ion Cordless Tool Series
As one of the pioneers driving the cordless tool revolution, Makita changed the game with its breakthrough 18V LXT Lithium-Ion Cordless Series. Three years after its debut, Makita's LXT Series has grown from seven to over 35 tools, providing a wide range of cordless solutions for professional tradesmen. Makita also added 18V Compact Lithium-Ion for cordless power in a more compact size.

About Makita
Makita is a worldwide manufacturer of industrial quality power tools, and offers a wide range of industrial accessories. Makita applies leading-edge innovation to produce tools that are stronger, lighter, more powerful and easier to use. Makita USA, Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit the website at Makita is Best in Class Engineering.

Every Makita Lithium-Ion tool is backed by Makita's 3-Year Warranty that covers repair due to defects in materials or workmanship up to three years from the date of original purchase. Makita Lithium-Ion batteries and chargers have a limited 1-year warranty. Please see for complete details.

What's in the Box

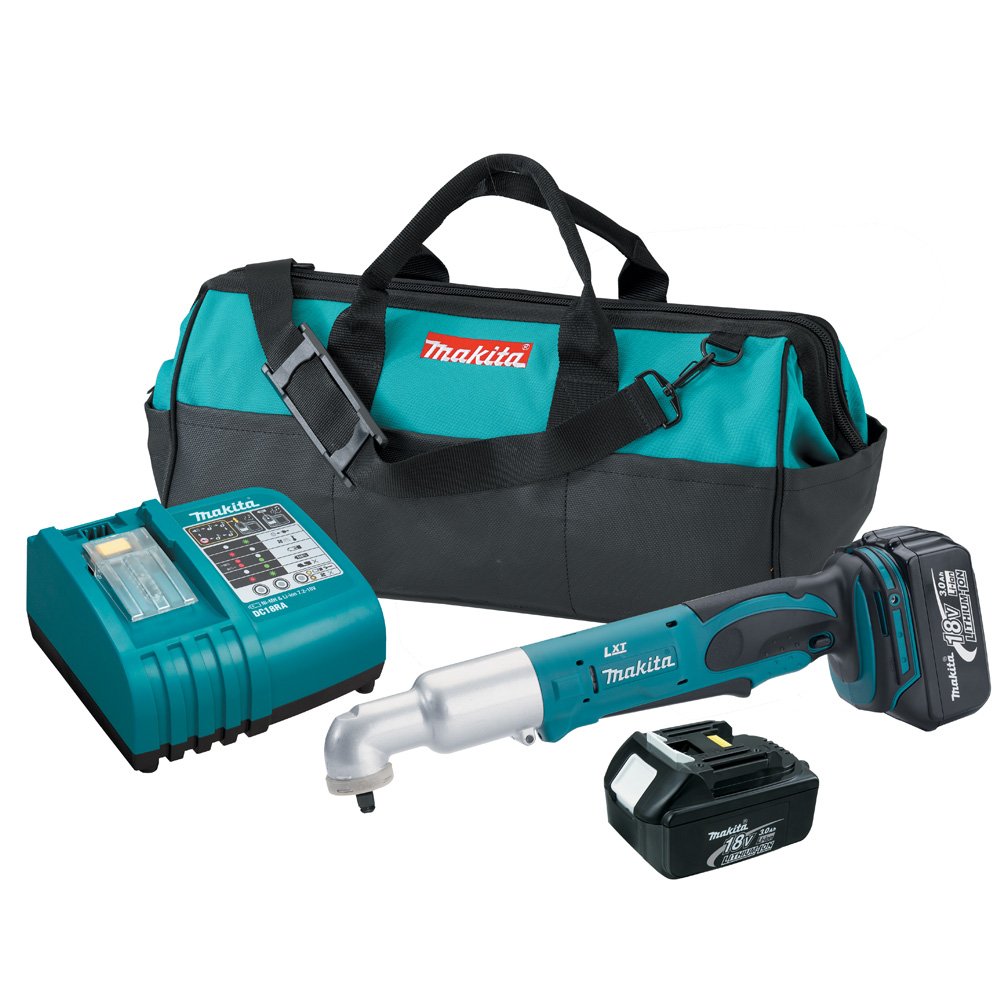

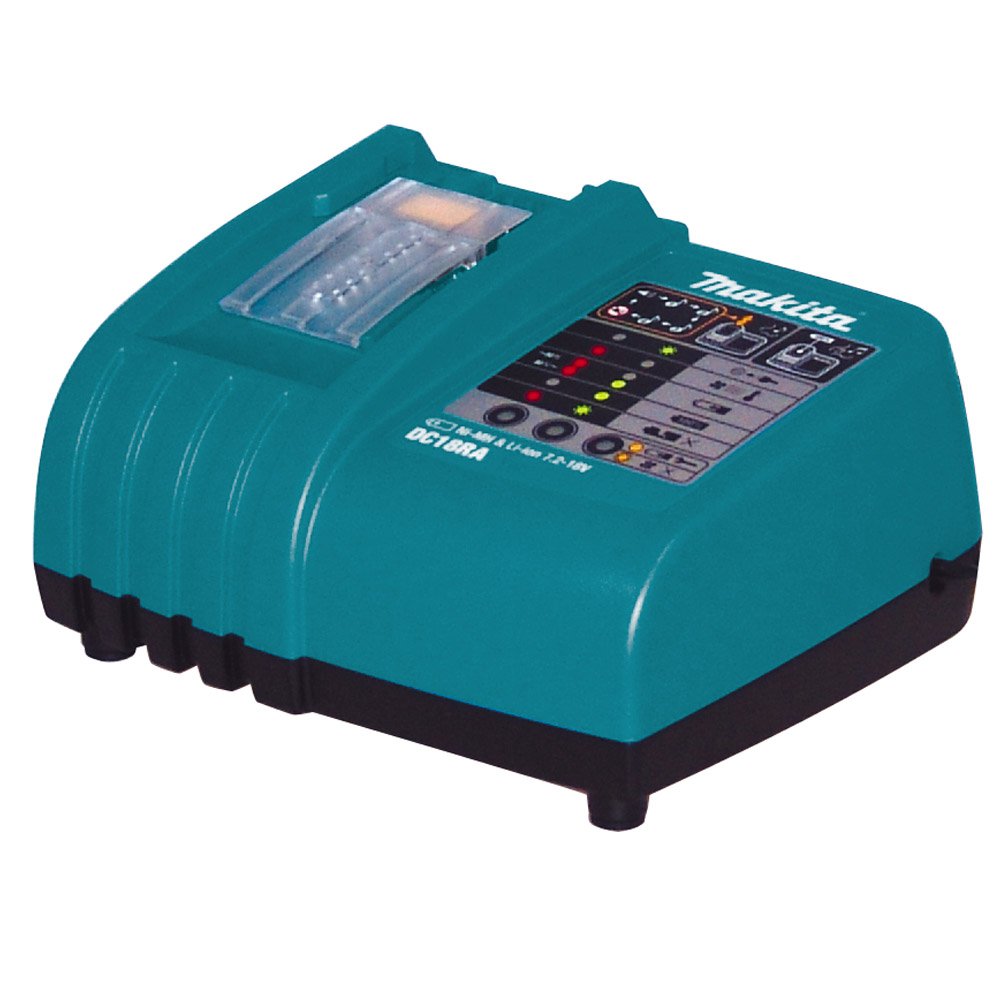

Makita BTL063 18V LXT Lithium-Ion Cordless 3/8-Inch Angle Impact Wrench, two 18V LXT Lithium-Ion batteries, 30-Minute Rapid Optimum Charger, tool belt clip, and tool bag.

Other Makita Lithium-Ion Series
More 18V Lithium-Ion Tools from Makita
See the entire 18V Lithium-Ion Lineup
Driver-DrillsImpact DriversImpact Wrenches
ConcreteMetalworkingCombo Kits
BHR240BCS550BPB180LXT1500 15-Tool KitLXT1200 12-Tool KitLXT902 9-Tool Kit

From the Manufacturer

Makita’s compact right angle impact wrench BTL063 is great for tightening and loosening in tight places. It is powered by an 18volt LXT lithium-ion battery. With a variable speed switch 0-2000 RPM it is used for a range of applications from auto repair to product assembly. This specialty tool validates Makita’s Best in Class engineering design.
