Makita AN610H 2-1/2 Inch High Pressure Siding Coil Nailer

Be the first to review this item

ASIN B003QP4AFW

Specifications for this item
Number of Items
1
Part Number
AN610H
Item Weight
8 pounds
UPC
088381074261
Brand Name
Makita
EAN
0088381074261
Power Source Type
air-powered
Warranty
1 year

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 15 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Innovative high pressure technology enables the nailer to operate at 320 PSI for more consistent flush nailing.
  • Superior power-to-weight ratio: up to 30% less weight and up to 30% smaller than conventional siding nailers.
  • "Tool-less" depth adjustments engineered for more precise flush and countersink nailing.
  • Two-mode selector switch allows operator to select sequential or contact nailing options.
  • Multi-directional exhaust port directs exhaust air away from operator.
  • Innovative High Pressure technology enables the nailer to operate at 140-320 PSI for more consistent flush nailing
  • Superior power-to-weight ratio: up to 30% less weight and up to 30% smaller than conventional siding nailers
  • ""Tool-less"" depth adjustments engineered for more precise flush and countersink nailing
  • 2-mode selector switch allows operator to select sequential or contact nailing options
  • Multi-directional exhaust port directs exhaust air away from operator
  • High capacity canister holds up to 400 nails for high production applications
  • Drives standard plastic and wire collated siding nails for more versatility
  • Easy-load nail canister system with nail size adjustment base for increased productivity
  • Tool hook allows nailer to remain close by
  • Rubberized handle for better fit and added comfort
  • See-through nail canister shows when nailer needs reloading
  • No-mar tip engineered to prevent damage to material
  • Large rubberized bumpers for added durability
  • No-mar Tip (421574-2)
  • Safety Goggles (191687-A)
  • Oil Supply (194381-3)
  • Tool Case (824490-1)
  • AN902
  • AN911H
  • AN453
  • AT2550A
  • AT1150A
  • AN923
  • AF505
  • AF633
  • AN611
  • AT638

Package Details

Shipping Weight: 8.35 pounds
Package Size: 15.7 x 15.5 x 5.8 inches

Product Description

Amazon.com

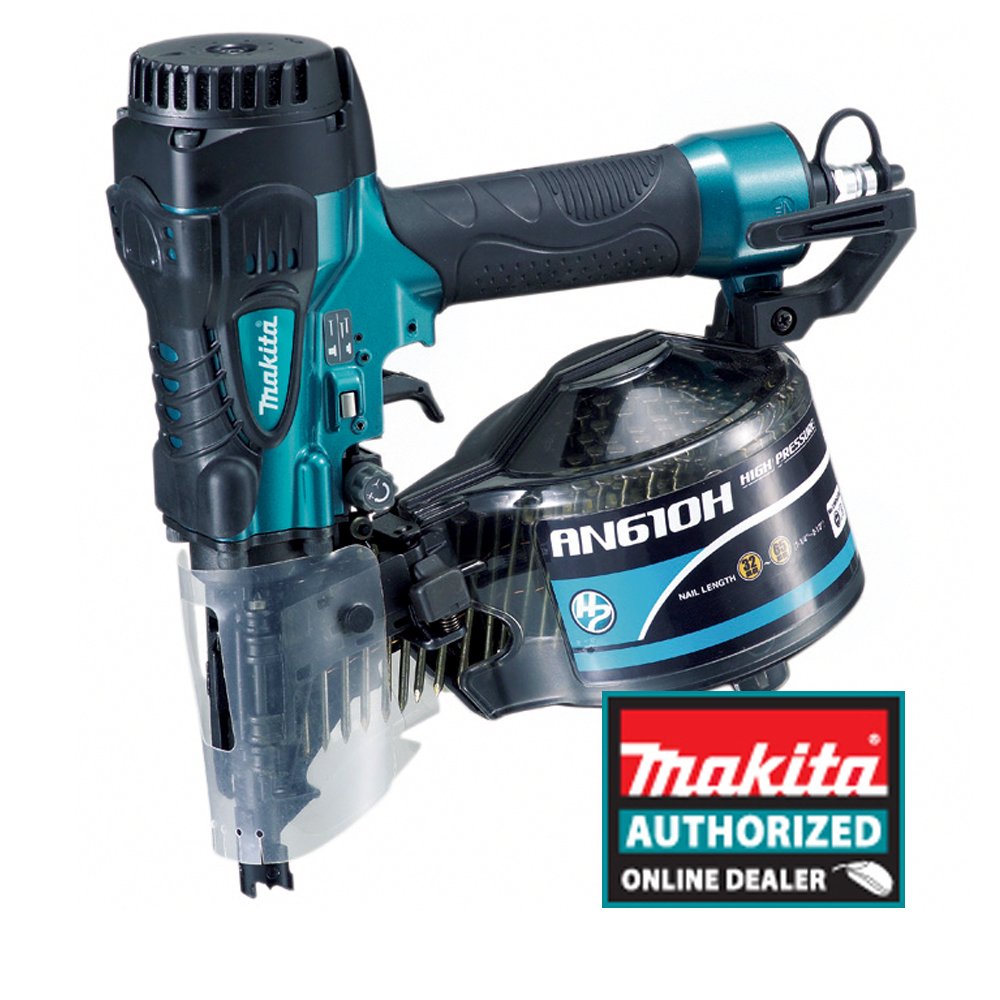

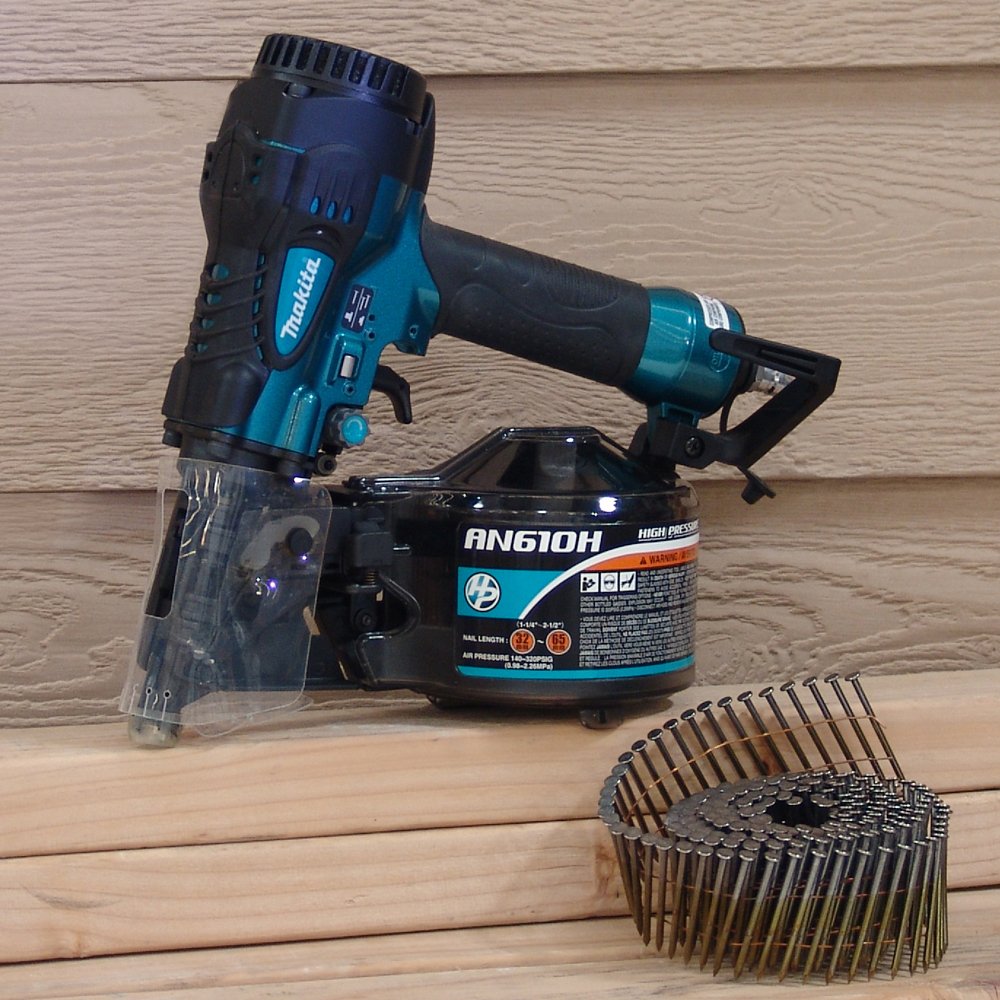

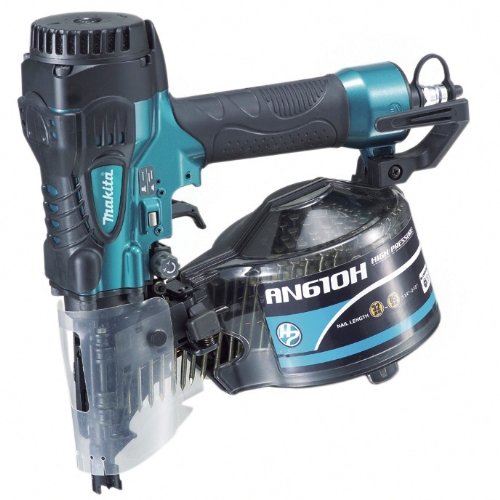

Makita's 2-1/2-inch High Pressure Siding Coil Nailer, model AN610H, features high pressure technology for more consistent flush nailing with less weight and a more compact size.

Key Action Shot

View larger
Feature 1Feature 2
Feature 3Feature 4
AN610H Features
INNOVATION - Innovative high-pressure technology enables nailer to operate at 320 PSI for more consistent flush nailing

ERGONOMICS - Up to 30% less weight and up to 30% smaller than conventional siding nailers

EFFICIENCY - "Tool-less" depth adjustment engineered to more precise flush and countersink nailing

VERSATILE - Two-mode selector switch allows user to select sequential or contact driving options

INCLUDES - No-mar tip, safety goggles, oil supply and tool case

Tool Specifications
Tool Spec
Operating Air Pressure (PSI)140 - 320
NailSize1-1/4" - 2-1/2"
 Shank
Diameter
.099" - .113"
 CollationPlastic and Wire
Magazine Capacity200 - 400
Size (L x W x H)11-1/8" x 5-3/8" x 10-7/8"
Net Weight (lbs.)4.2
The AN610H can operate at high pressure (140-320 PSI), and with its high-pressure capacity and superior power-to-weight ratio is up to 30% more compact than a conventional nailer. The AN610H also weighs less -- only 4.2 pounds -- yet holds up to 400 nails in sizes ranging from 1-1/4-inches to 2-1/2-inches. With increased pressure for driving each nail, the AN610H delivers more consistent flush nailing. "Tool-less" depth adjustments have been engineered to provide the option of precise flush or countersink nailing, and a two-mode selector trigger switch allows the user to select sequential or contact nailing options.

The AN610H has an easy-load nail canister and a see-through window. The canister base adjusts easily for various nail sizes, delivering faster, more efficient loading for increased productivity. For user comfort, there are large rubberized grips, a tool hook to keep the nailer close by while not in use, and a multi-directional exhaust port to direct exhaust air away from the user.

The AN610H is just another example of Makita's commitment to innovative technology and best-in-class engineering.

HP LogoMakita High Pressure Compressor Technology
Makita delivers the future of pneumatics with new high-pressure technology. The new technology dramatically increases air pressure created in the compressor and delivered to pneumatic nailers. The result is a superior power-to-weight ratio and a more efficient system than conventional compressors and nailers. Makita high-pressure technology is engineered to meet the demand for pneumatic nailers that are more compact with less weight and a better fit, yet have the capacity to drive nails into a wide range of materials including the increasingly dense engineered lumber used in framing construction. Makita High Pressure Pneumatics delivers increased efficiency, productivity and performance.

Makita LogoAbout Makita
Makita is a worldwide manufacturer of industrial quality power tools and offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are more compact and energy efficient, yet deliver industrial strength power and results. Makita U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit makitatools.com. The Makita Teal color is the trade dress of Makita Corporation and is protected under common law and registered with the U.S. Patent and Trademark Office. Makita is Best in Class Engineering.

Warranty
Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. Please see makitatools.com for complete details.

What's in the Box
Makita AN610H 2-1/2-inch High Pressure Siding Coil Nailer, no-mar tip, safety goggles, oil supply and tool case.


From the Manufacturer

Makita Has the solution. Introducing Makita High Pressure Technology compact in size with less weight and better fit, Makita delivers more power than most conventional siding nailer nailers. Makita gives contractors ONE nailer to handle all their framing needs. The Makita High Pressure system is designed for use with larger nails for engineered materials. New building codes are requiring larger nails to fasten engineered materials. Many contractors are using two different nailers to handle their framing needs. Makita is the leader in technology and has the solutions for new building codes. Makita High Pressure Technology. High Pressure Technology allows Makita to design pneumatic nailers that deliver: MORE POWER, MORE COMPACT. Benefits that the end user will experience immediately. Makita's new AN610H 2-1/2" high pressure siding coil nailer is designed up to 30% smaller than non-high pressure siding nailers, delivering increased operator comfort.
