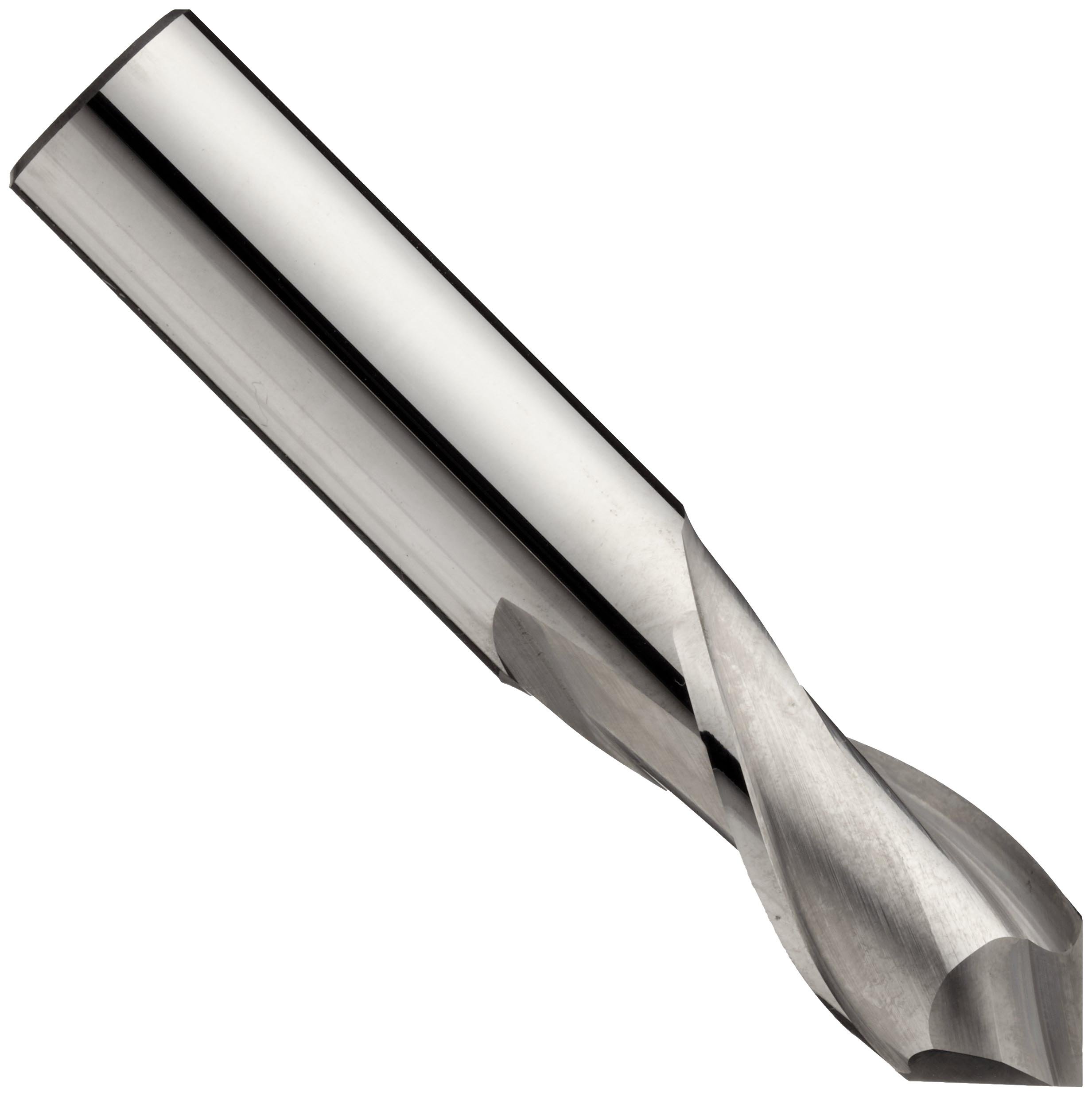

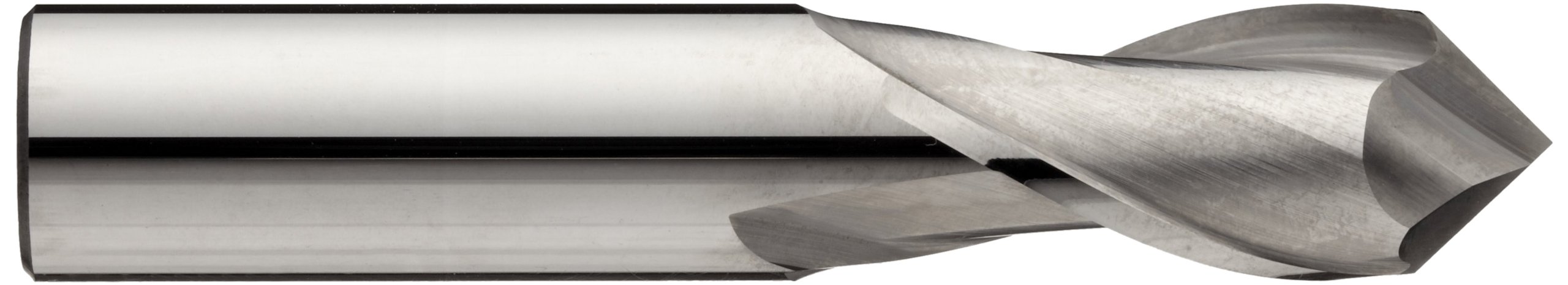

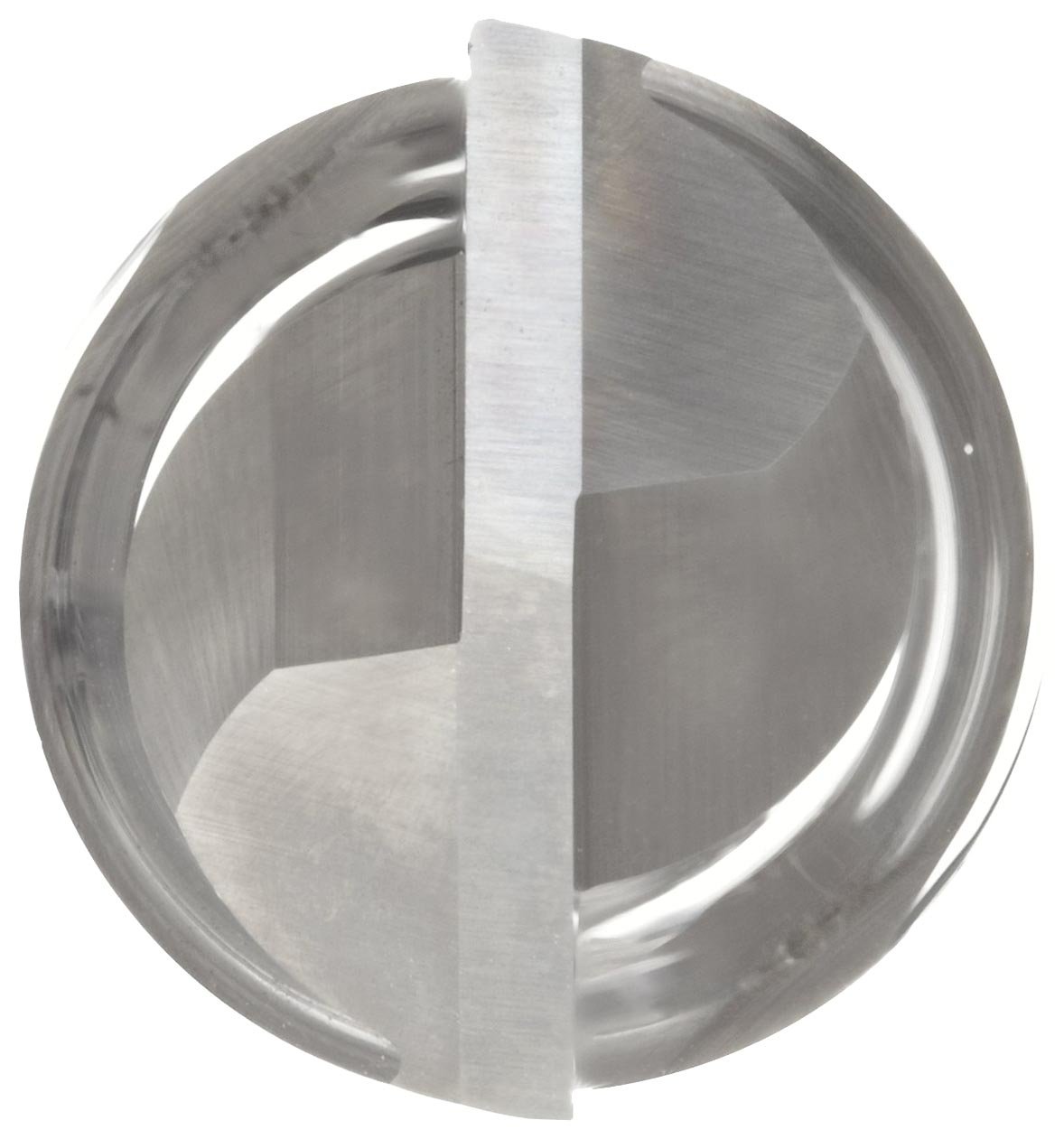

Magafor 8090 Carbide Micro Drill Mill, Inch and Metric, Uncoated (Bright) Finish, 90 Deg Point Angle, 2 Flutes, 1-1/2" Overall Length, 1.4mm Cutting Diameter, 3mm Shank Diameter

Be the first to review this item

ASIN B003EIKUVE

Specifications for this item
Finish Types
Uncoated (Bright)
Flute Length
0.110  inches
Body Style
Single End
Part Number
80900140
Shank Width
0.118  inches
Trade Size
Micro
Shank Diameter
3  millimeters
Cutting Angle
90  Degrees
Brand Name
Magafor
Cutting Length
0.11  inches
Cut Type
General Purpose
Number of Flutes
2
Cutting Direction
Right Hand
Number of Items
1
Specific Uses For Product
Chamfering^Drilling^Interpolation Milling^Side Milling^Spotting^V-Grooving
End Cut Type
Center Cutting
Tolerance Held
+0.001/-0 inches
Drill Point
90 degrees
Material Type
Carbide
Outside Diameter
1.4  millimeters
Size Name
1.4 millimeters
Manufacturer Series Number
8090
Compatible Material
Aluminum Alloys , Cast Iron , Copper Alloys , Nickel Alloys , Stainless Steel , Steel Alloys , Titanium Alloys
Shank Type
Round
UNSPSC Code
27112800
Cutting Diameter
1.4  millimeters
Overall Length
1-1/2  inches
System of Measurement
Inch and Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Jul 25? Order in-stock items in the next 23 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • This multi use bits can be used for Spotting, Grooving, Engraving, Profiling, Interpolation, Drilling and Chamfering
  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications

Package Details

Shipping Weight: 0.02 pounds
Package Size: 2.1 x 0.6 x 0.5 inches

Product Description

MAGAFOR is recognized as a leader in the production of precision cutting tools. With more than 250 ranges and 8 000 dimensions, MAGAFOR offers the solution adapted to your machining. Forms, materials, lengths are as many criteria generating of the specific ranges
