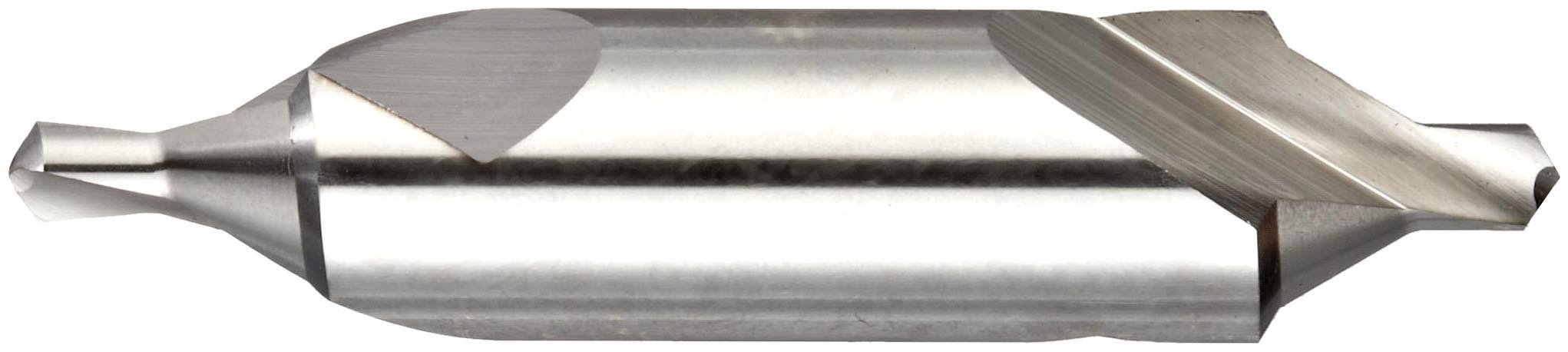

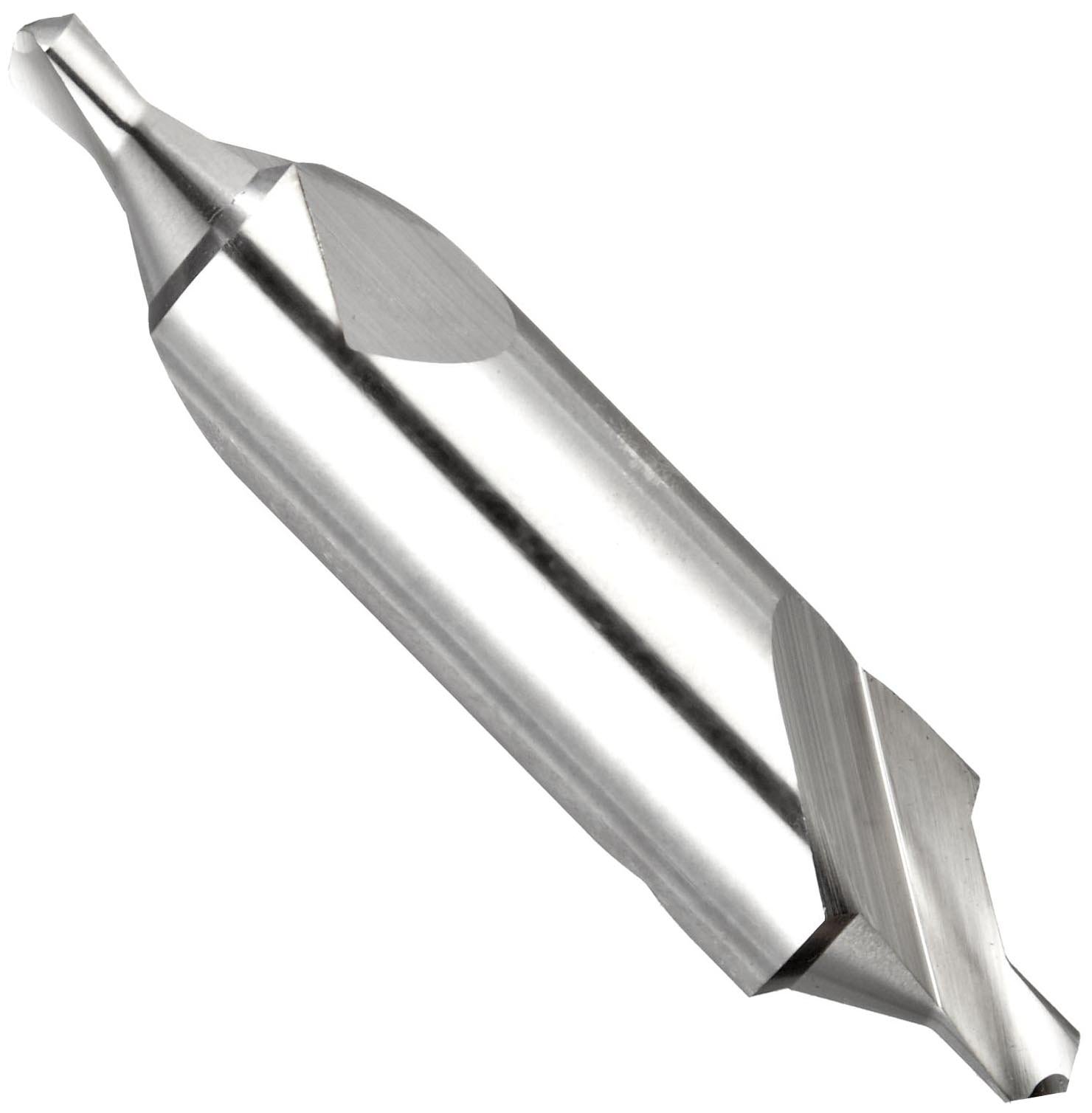

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Magafor 135 Series High Speed Steel Combined Drill and Countersink, Uncoated (Bright) Finish, Bell Style, 60-Degree Countersink, 120-Degree Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series Number
135 Series
Finish Types
Uncoated (Bright) Finish
Material Type
High Speed Steel
Style Name
Bell
Brand Name
Magafor

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 23 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Trade Size Body Diameter Drill Point Diameter Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-9 of 9
#12 0.1875" 0.062" 1.875" 1351200 B003EIKN16 3 $6.13 Buy Options
#13 0.25" 0.093" 2" 1351300 B003EIKN2A 4 $6.30 Buy Options
#14 0.3125" 0.109" 2.125" 1351400 B003EIKN2U 2 $6.55 Buy Options
#15 0.4375" 0.156" 2.75" 1351500 B003EIKN3E 1 $10.12 Buy Options
#16 0.5" 0.187" 3" 1351600 B003EIKN3Y 1 $15.40 Buy Options
#17 0.625" 0.218" 3.25" 1351700 B003EIKN4I 1 $23.19 Buy Options
#18 0.75" 0.25" 3.5" 1351800 B003EIKN5M 1 $29.11 Buy Options
#19 0.875" 0.312" 3.625" 1351900 B003EIKN66 1 $47.91 Buy Options
#20 1" 0.375" 3.75" 1352000 B003EIKN7A 1 $58.13 Buy Options

Key Features

  • Bell-style combined drill and countersink creates a center hole with a 60-degree countersink and provides an additional chamfered section to maintain an accurate center hole in multi-step applications

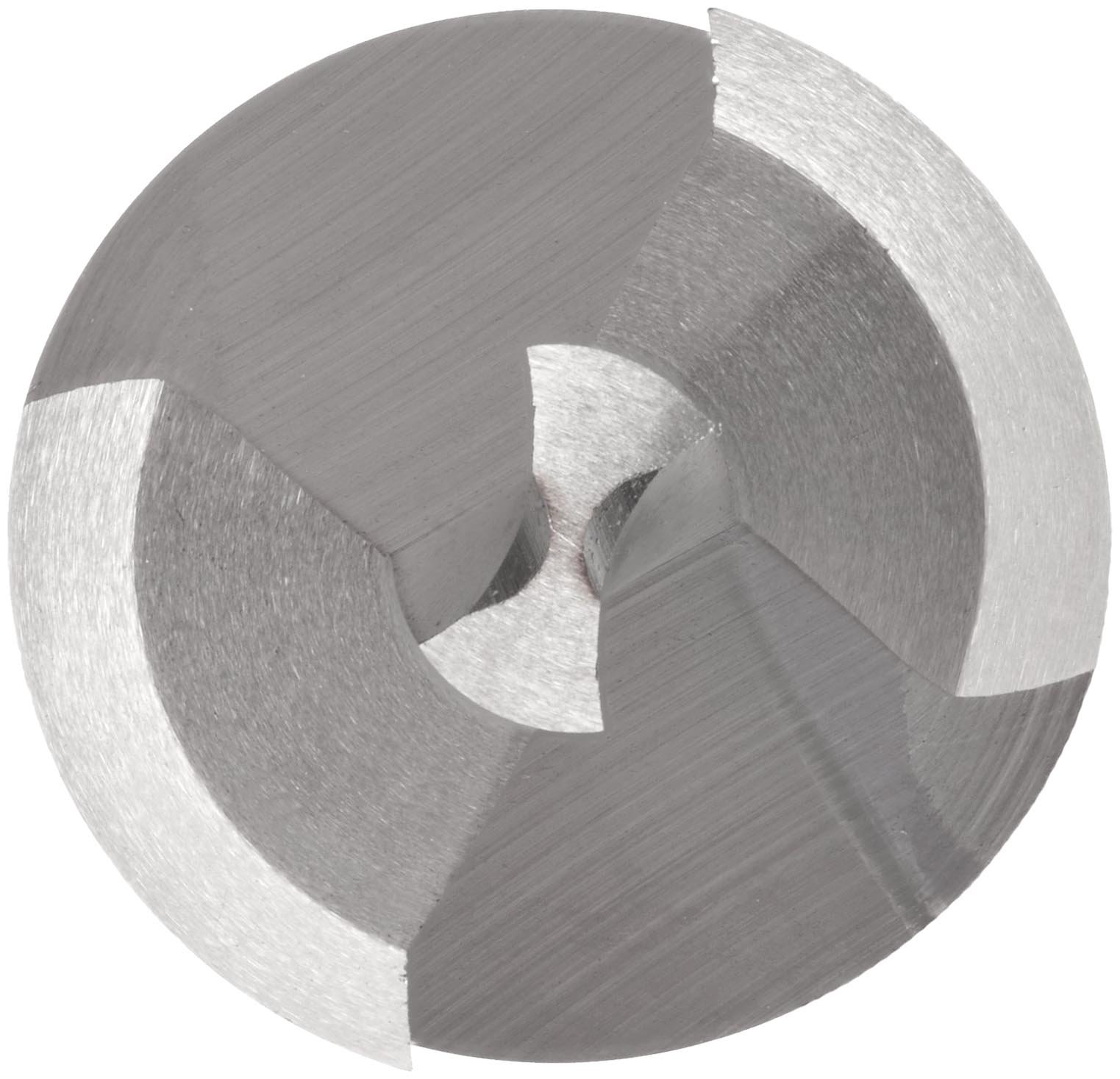

  • 118-degree point drills a center hole while the two spiral flutes clear chips away to prevent clogging
  • High-speed steel (HSS) provides hardness for wear resistance
  • Uncoated (bright) finish has no additional surface treatment or coating
  • Double-ended to provide two cutting ends

Product Description

The Magafor 135 series high-speed steel combined drill and countersink with uncoated (bright) finish has a bell style to create a center hole with a 60-degree countersink and is suitable for maintaining an accurate center hole in multi-step applications. The bell-style countersink includes a 120-degree chamfered section between the countersink and the material surface, providing clearance and reducing the possibility of damaging the center hole or countersink when exposed to multiple machining operations. The 118-degree point drills a center hole, while the two spiral flutes clear chips away to prevent clogging. High-speed steel (HSS) provides hardness for wear resistance, and the uncoated finish has no additional surface treatment or coating. The tool is double-ended to provide two cutting ends. The round shank accommodates most drill chucks.

Combined drill and countersinks are fluted cutting tools that drill a shallow hole with a conical or gradually widened opening, also known as a countersink, into the surface of a workpiece. These tools, also called combined drill countersinks, drill-point countersinks or center drills, are commonly used to create center holes that act as a bearing surface for a machine center. Some types reduce the two-step process of creating a countersunk pilot hole into one.

Magafor manufactures precision cutting tools, including counterbores, countersinks, deburring tools, and end mills. The company, founded in 1937, is headquartered in Fontenay-sous-Bois, France.
