Magafor 1055 Series Cobalt Steel Combined Drill and Countersink, Uncoated (Bright) Finish, Plain Style, 60-Degree Countersink

Be the first to review this item

Product Specifications
Manufacturer Series Number
1055 Series
Finish Types
Uncoated (Bright) Finish
Material Type
Cobalt Steel
Style Name
Plain
Cutting Angle
60  Degrees
Brand Name
Magafor

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 3 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Trade Size Body Diameter Drill Point Diameter Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-8 of 8
#1 0.125" 0.046" 1.25" 1055010 B003EIKMHQ 1 $10.28 Buy Options
#2 0.1875" 0.078" 1.875" 1055020 B003EIKMIA 2 $10.66 Buy Options
#3 0.25" 0.109" 2" 1055030 B003EIKMIU Temporarily out of stock. Order now and we'll deliver when available. $11.12 Buy Options
#4 0.3125" 0.125" 2.125" 1055040 B003EIKMJE 2 $11.70 Buy Options
#5 0.4375" 0.187" 2.75" 1055050 B003EIKMJY 1 $17.92 Buy Options
#6 0.5" 0.218" 3" 1055060 B003EIKMKI 3 $27.10 Buy Options
#7 0.625" 0.25" 3.25" 1055070 B003EIKML2 1 $34.25 Buy Options
#8 0.75" 0.312" 3.5" 1055080 B003EIKMLW 1 $50.40 Buy Options

Key Features

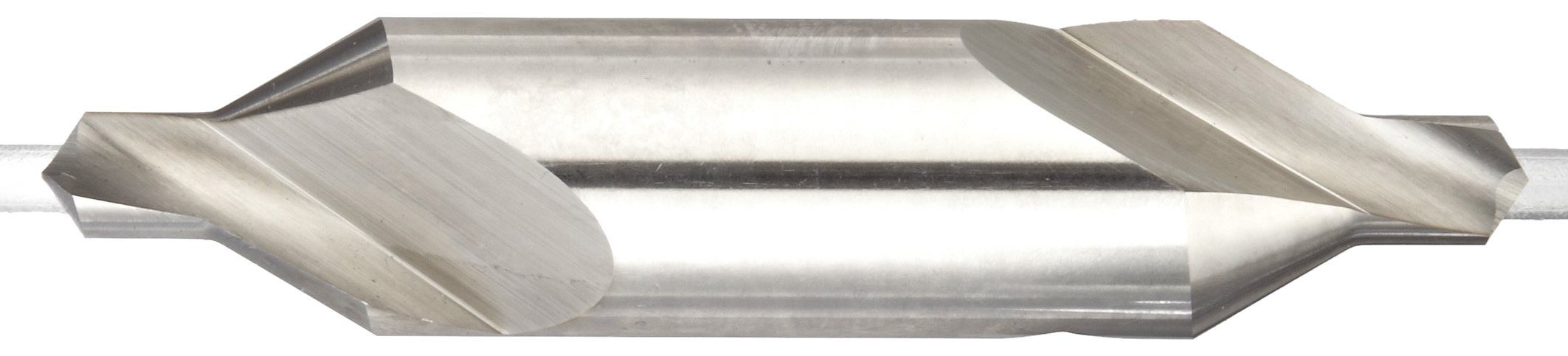

  • Plain-style combined drill and countersink creates a 60-degree countersink, which can be used as a center hole for machine centers
  • 118-degree conventional point drills a center hole while the two spiral flutes clear chips away to prevent clogging
  • Cobalt steel provides extended tool life compared to high-speed steel drill bits when drilling hard materials
  • Uncoated (bright) finish has no additional surface treatment or coating
  • Double-ended to provide two cutting ends

Product Description

The Magafor 1055 series cobalt steel combined drill and countersink with uncoated (bright) finish has a plain style to create a center hole with a 60-degree countersink that can be used as a center hole for machine centers. The 118-degree conventional point drills a center hole, while the two spiral flutes clear chips away to prevent clogging. Cobalt steel provides extended tool life compared to high-speed steel drill bits, and maintains the tool's toughness and hardness in high drilling temperatures. The uncoated finish has no additional surface treatment or coating. The tool is double-ended to provide two cutting ends. The round shank accommodates most drill chucks.

Combined drill and countersinks are fluted cutting tools that drill a shallow hole with a conical or gradually widened opening, also known as a countersink, into the surface of a workpiece. These tools, also called combined drill countersinks, drill-point countersinks or center drills, are commonly used to create center holes that act as a bearing surface for a machine center. Some types reduce the two-step process of creating a countersunk pilot hole into one.

Magafor manufactures precision cutting tools, including counterbores, countersinks, deburring tools, and end mills. The company, founded in 1937, is headquartered in Fontenay-sous-Bois, France.
