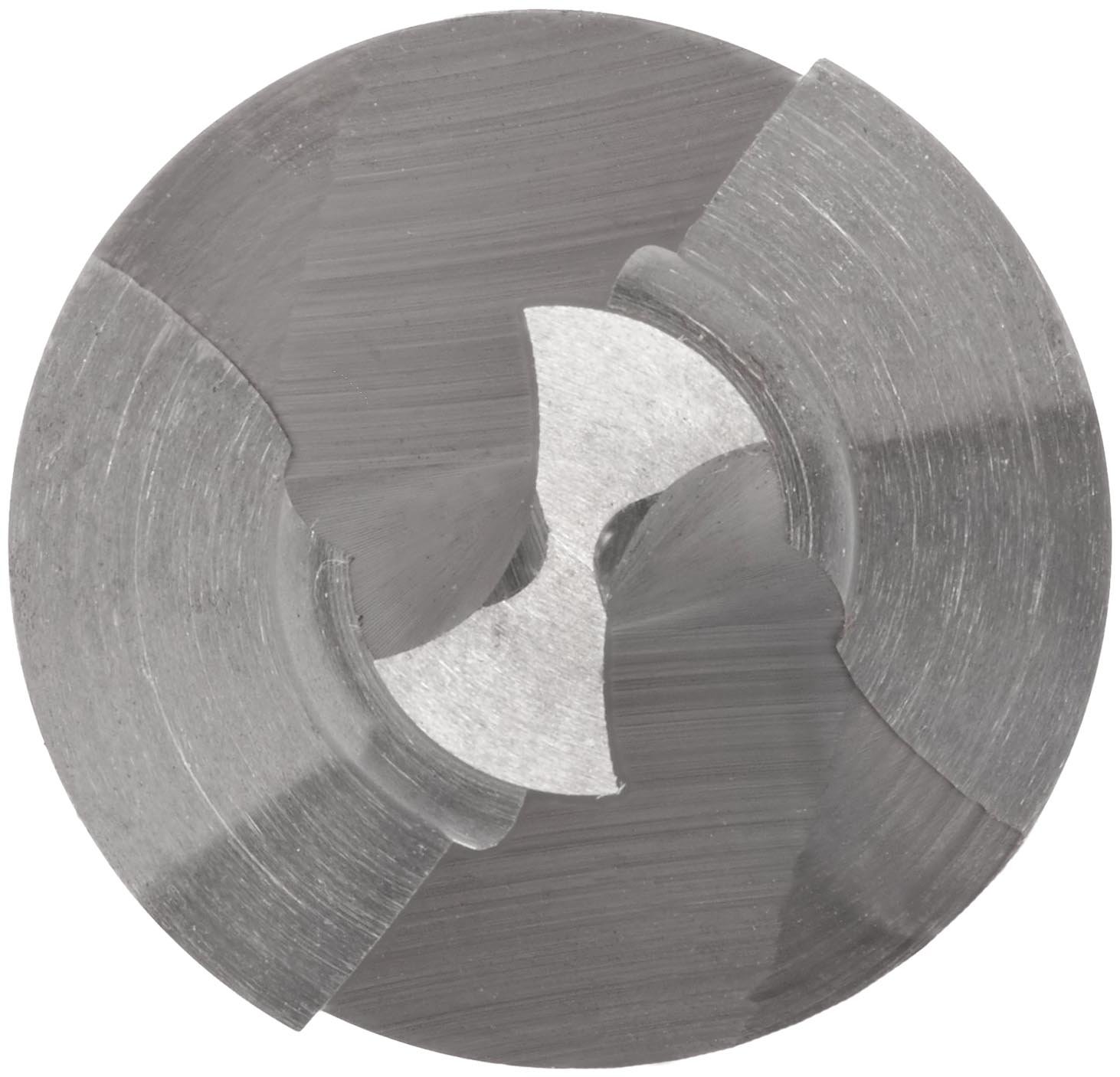

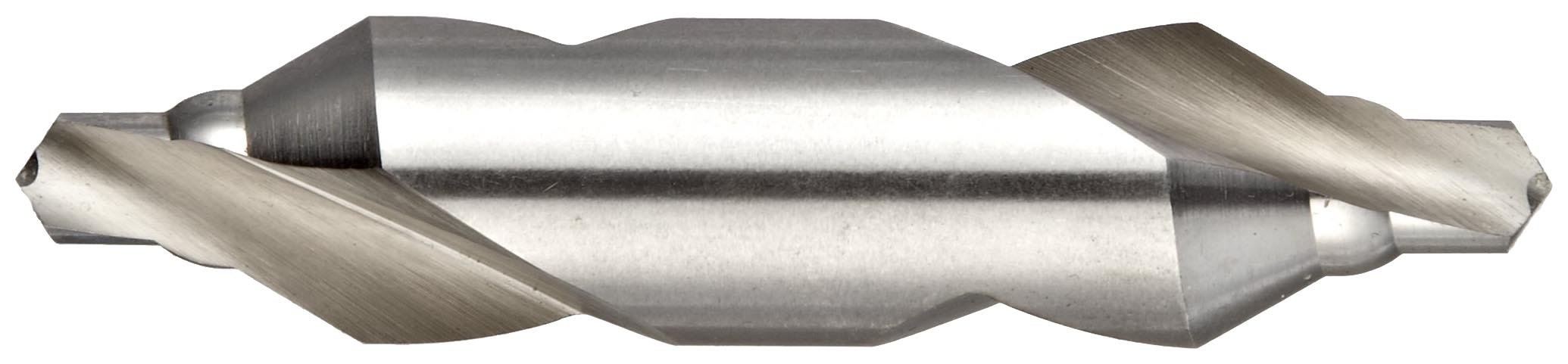

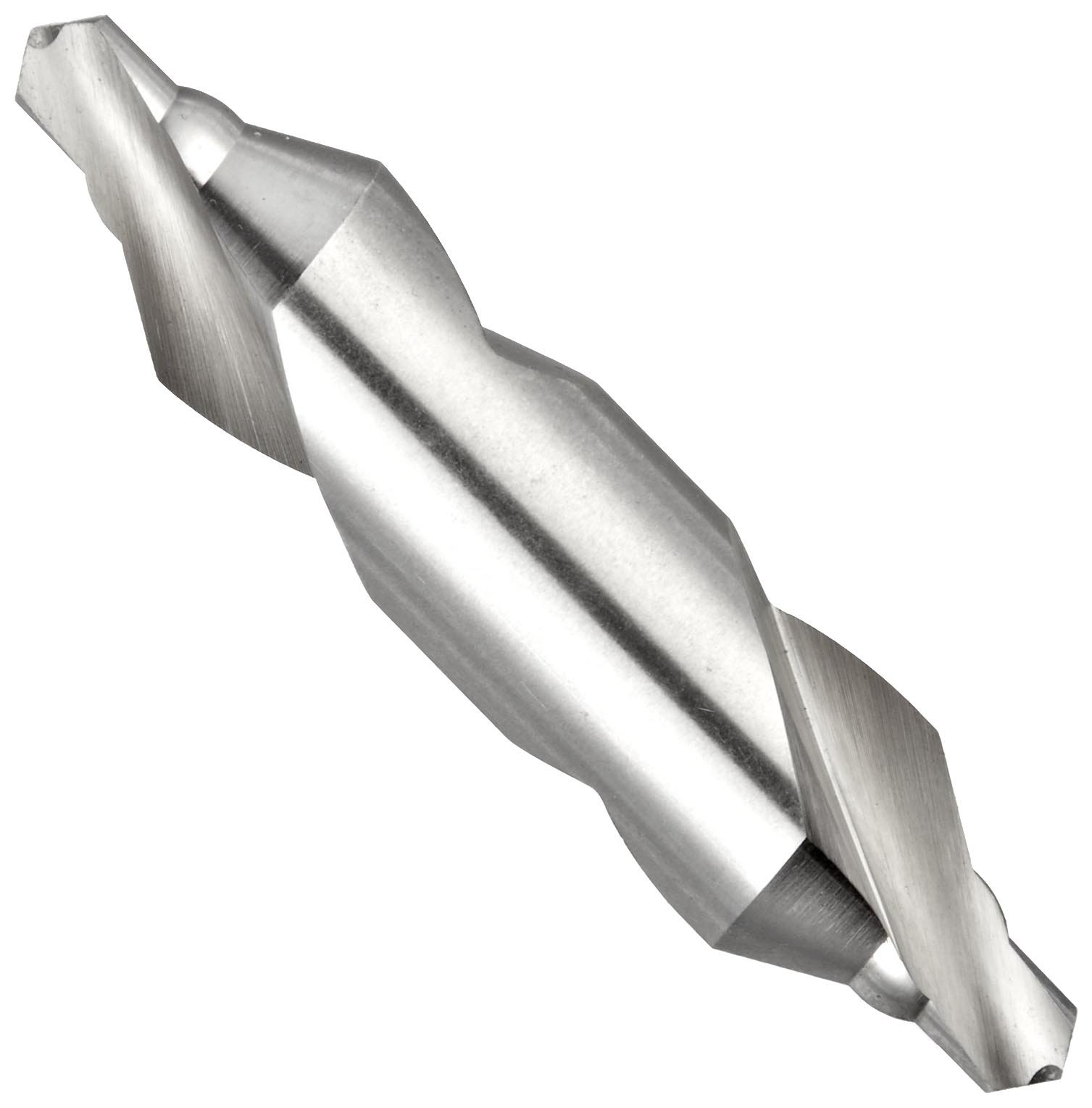

Magafor 145 Series High Speed Steel Combined Drill and Countersink, Uncoated (Bright) Finish, Plain with Bulge Style, 60-Degree Countersink

Be the first to review this item

Product Specifications
Manufacturer Series Number
145 Series
Finish Types
Uncoated (Bright) Finish
Material Type
High Speed Steel
Style Name
Plain with Bulge
Cutting Angle
60  Degrees
Brand Name
Magafor

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 2 days 1 hr 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Trade Size Body Diameter Drill Point Diameter Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-8 of 8
#1 0.125" 0.046" 1.25" 1450100 B003EIKN7U 1 $8.34 Buy Options
#2 0.1875" 0.078" 1.875" 1450200 B003EIKN8O 2 $6.07 Buy Options
#3 0.25" 0.109" 2" 1450300 B003EIKN98 1 $6.41 Buy Options
#4 0.3125" 0.125" 2.125" 1450400 B003EIKNA2 Usually ships in 1 to 2 months $13.47 Buy Options
#5 0.4375" 0.187" 2.75" 1450500 B003EIKNAM 1 $10.52 Buy Options
#6 0.5" 0.218" 3" 1450600 B003EIKNB6 1 $15.58 Buy Options
#7 0.625" 0.25" 3.25" 1450700 B003EIKNBQ Usually ships in 1 to 2 months $21.74 Buy Options
#8 0.75" 0.312" 3.5" 1450800 B003EIKNC0 1 $31.07 Buy Options

Key Features

  • Plain-with-bulge style combined drill and countersink creates a center hole with a 60-degree countersink and has a bulbous section to strengthen the point, enable increased chip removal, and facilitate lubrication
  • 118-degree conventional point drills a center hole while the two spiral flutes clear chips away to prevent clogging
  • High-speed steel (HSS) provides hardness for wear resistance
  • Uncoated (bright) finish has no additional surface treatment or coating
  • Double-ended to provide two cutting ends

Product Description

The Magafor 145 series high-speed steel combined drill and countersink with uncoated (bright) finish has a plain-with-bulge style to create a center hole with a 60-degree countersink that can be used as a center hole for machine centers. The bulge between the countersink and the drill point strengthens the point, enables increased chip removal, and facilitates lubrication. The 118-degree conventional point drills a center hole, while the two spiral flutes clear chips away to prevent clogging. High-speed steel (HSS) provides hardness for wear resistance, and the uncoated finish has no additional surface treatment or coating. The tool is double-ended to provide two cutting ends. The round shank accommodates most drill chucks.

Combined drill and countersinks are fluted cutting tools that drill a shallow hole with a conical or gradually widened opening, also known as a countersink, into the surface of a workpiece. These tools, also called combined drill countersinks, drill-point countersinks or center drills, are commonly used to create center holes that act as a bearing surface for a machine center. Some types reduce the two-step process of creating a countersunk pilot hole into one.

Magafor manufactures precision cutting tools, including counterbores, countersinks, deburring tools, and end mills. The company, founded in 1937, is headquartered in Fontenay-sous-Bois, France.
