SHOP FOX M1042 24-Inch 3 in 1 Sheet Metal Machine

Be the first to review this item

ASIN B001R23SD6

Specifications for this item
Part Number
M1042
UPC
754001510425
Brand Name
Shop Fox
EAN
0754001510425

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Maximum capacity in mild steel: 22 gauge
  • Roll diameter: 1-1/2-Inch
  • Approximate shipping weight: 353-Pounds

Package Details

Shipping Weight: 279 pounds
Package Size: 33.5 x 23 x 17 inches

Product Description

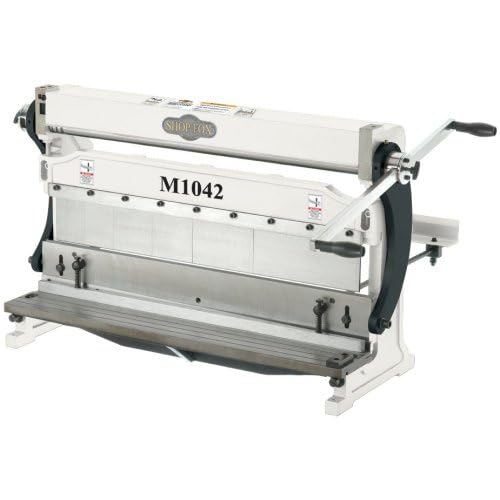

Shop Fox M1042 24-Inch 3 in 1 Sheet Metal Machine

Shop Fox 3 in 1 Sheet Metal Machine
View larger
Bend, Cut and Roll
View larger

With a 24-inch wide capacity and three sheet metal functions in one unit, there is no need to spend extra money and tie up shop space with three single-use machines. You'll love the convenience and accuracy of this do-it-all machine.

Versatile

The Model M1042 has the capacity to roll or bend mild steel up to 22 gauge or shear mild steel up to 28 gauge. Features like the adjustable and removable fingers offer a wide variety of bending brake options. Flatten or form cylinders, cones, and arcs in sheet metal with ease using the slip roll or create bends up to 90-degrees and fold sheet metal into boxes, pans or trays with the brake.

Grooved Roller for Wires, Rods or Tubing

This sheet metal machine can bend wires, rods and small diameter tubing. The rollers include built-in grooves for your material and is bent in the same manner as sheet metal. The M1042 also includes a hinged roller cover for added safety and security.

Built to Last

The M1042 3-in-1 Sheet Metal Machine has been specially designed to provide many years of trouble free service. Close attention to detail, ruggedly built parts and a rigid quality control program ensure safe and reliable operation.

Specifications and Features
  • Maximum bend and roll capacity in mild steel: 22 gauge
  • Maximum shear capacity in mild steel: 28 gauge
  • Roll diameter: 1-1/2-inch
  • Wire groove size: 5/32-inch (4mm), 11/64-inch(4.5mm), 7/32-inch (5.5mm)
  • Box finger size: . 10-inch, 4-inch (x 2), 3-inch, 2-inch and 1-inch
  • Footprint: 14-1/2 x 32-1/2-inch
  • Approximate shipping weight: 314 lbs
Grooved Rollers for Wires, Rods and Tubing
View larger
