Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

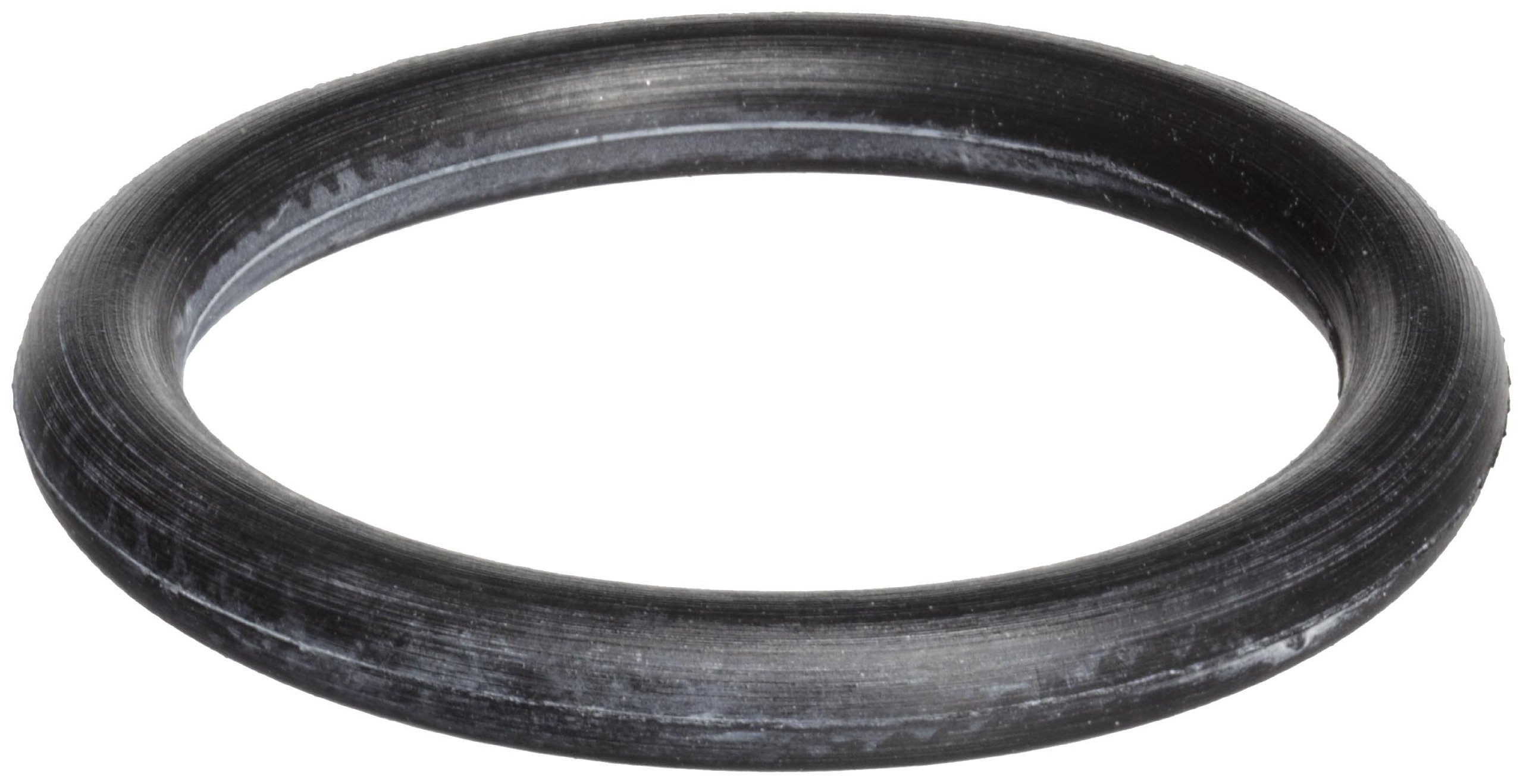

Buna O-Ring, 70A Durometer, Round, Black (Metric)

Be the first to review this item

Product Specifications
Nominal Width
n/a  millimeters
Material Type
Nitrile Rubber
Color Name
Black
Outside Diameter
n/a  millimeters
Nominal Inside Diameter
n/a  millimeters
Brand Name
Small Parts
Size Name
n/a
Upper Temperature Range
250  Degrees Fahrenheit
Cross Section Shape
Round
Hardness
70 A Durometer
UNSPSC Code
31410000
Nominal Outside Diameter
n/a  millimeters
LowerTemperature Range
-30  Degrees Fahrenheit
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Mar 31? Order in-stock items in the next 8 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 417 Next 20 »
Inside diameter string Item width string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 417 Next 20 »
10 millimeters 1.5 millimeters 100 B00595JPT8 yes $11.71 Buy Options
11 millimeters 1.5 millimeters 100 B00595JR5K yes $5.64 Buy Options
11.5 millimeters 1.5 millimeters 100 B00595JSF4 yes $9.78 Buy Options
12 millimeters 1.5 millimeters 100 B00595JTN0 yes $6.15 Buy Options
13 millimeters 1.5 millimeters 100 B000FMYB94 yes $9.29 Buy Options
13.5 millimeters 1.5 millimeters 100 B00595JUGG yes $11.37 Buy Options
14 millimeters 1.5 millimeters 100 B00595JVIS yes $8.21 Buy Options
14.5 millimeters 1.5 millimeters 100 B00595JX2C yes $5.00 Buy Options
15 millimeters 1.5 millimeters 100 B00595JXZY yes $11.95 Buy Options
15.5 millimeters 1.5 millimeters 100 B00595JZ02 yes $9.78 Buy Options
16 millimeters 1.5 millimeters 100 B000FN0TSK yes $7.59 Buy Options
17 millimeters 1.5 millimeters 100 B00595K05G yes $7.77 Buy Options
17.5 millimeters 1.5 millimeters 100 B00595K1LO yes $11.82 Buy Options
18 millimeters 1.5 millimeters 100 B00595K2NQ yes $12.89 Buy Options
19 millimeters 1.5 millimeters 100 B00595K42K yes $12.21 Buy Options
19.5 millimeters 1.5 millimeters 100 B00595K574 yes $11.49 Buy Options
2 millimeters 1.5 millimeters 100 B00595K6MS yes $8.42 Buy Options
20 millimeters 1.5 millimeters 100 B00595K7HW yes $9.53 Buy Options
21.5 millimeters 1.5 millimeters 100 B00595K9TS yes $12.57 Buy Options
22 millimeters 1.5 millimeters 100 B00595KB9G yes $12.18 Buy Options

Key Features

  • Made of Buna-nitrile for use with a variety of fluids and hydrocarbons
  • Can be used across a wide temperature range from -30 degrees F (-34 degrees C) to 250 degrees F (121 degrees C)
  • Round in cross-section to provide a seal between cylindrical overlapping surfaces
  • Durometer (hardness) of 70A for resistance to penetration

Product Description

This O-ring is made of Buna-nitrile (also called Buna-N), round in cross-section, has a durometer of 70A, and is designed for use in a wide variety of sealing applications.

Buna-nitrile can have high tensile strength, resistance to abrasion, tear, and compression set resistance. It is acceptable for temperature applications between -30 degrees F (-34 degrees C) to 250 degrees F (121 degrees C). It is compatible for use with petroleum, HFA, HFB, and HFC fluids, vegetable oil, alcohol, acids, and aliphatic hydrocarbons. Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight, and weathering, and should therefore not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.

This O-ring has a shore durometer of 70A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.

O-rings commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves and cylinders of various sorts. They are circular in shape, with a round cross section and a hole in the center, similar to a doughnut. O-rings are available in a number of sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.
