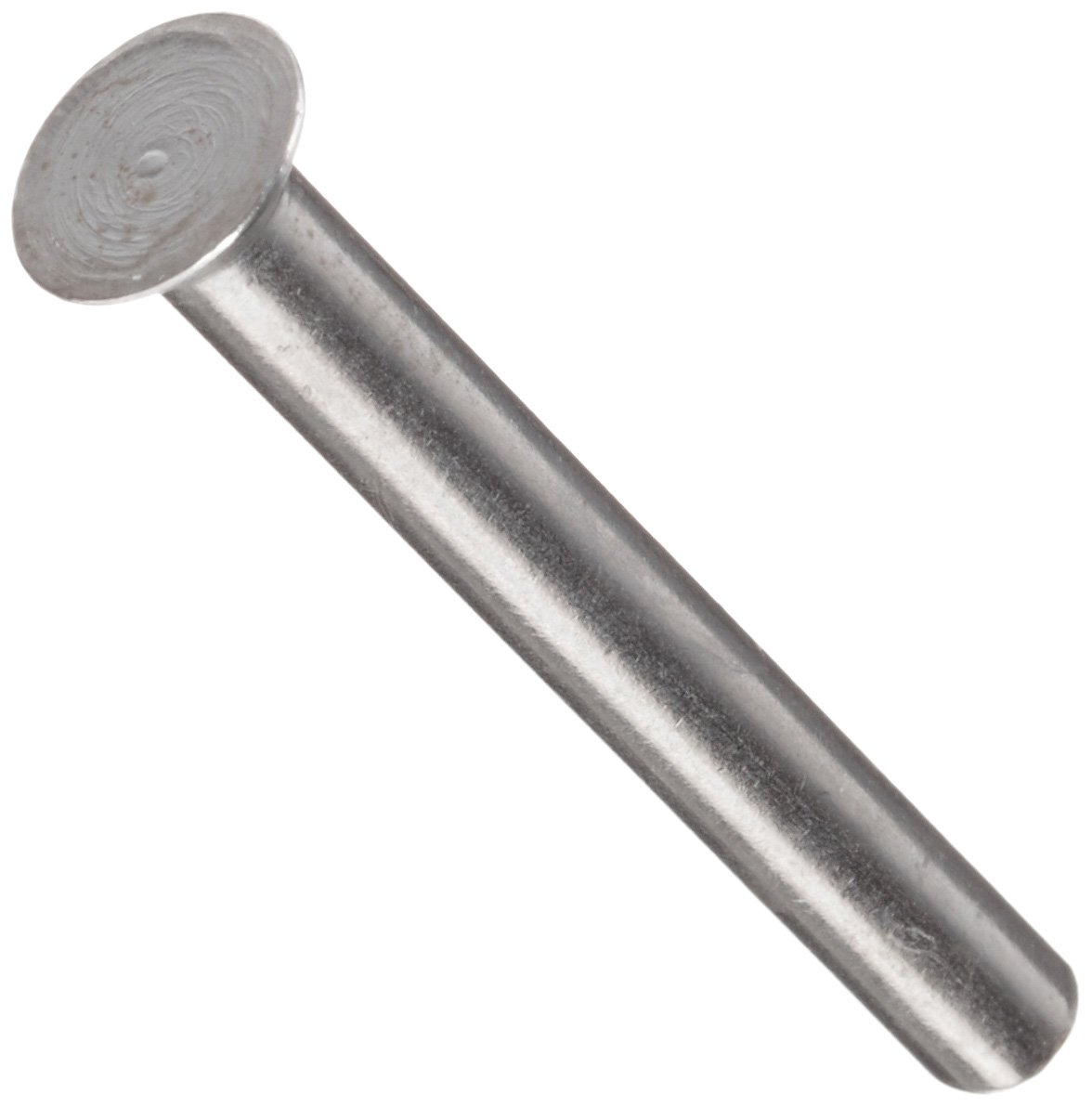

Lovejoy Size D/HD8 Universal Joint Rivet Pins, Set of 25

Be the first to review this item

ASIN B004RQAFB2

Product Specifications
Mfr Part #
68514449995
Number of Items
1
UPC
685144499950
EAN
0685144499950
Trade Size
D/HD8
Specification for this product family (See all  products)
Brand Name
Lovejoy
List price:
$24.00
Price:
$22.13
You save:
$1.87 (8%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 6 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Fit D and HD type universal joints
  • Locates and secures together the center block and yoke assembly
  • AISI 1144 carbon steel for strength and durability
  • Operating temperatures range from -20 to 212 degrees F

Package Details

Shipping Weight: 0.1 pounds
Package Size: 5 x 2.7 x 0.8 inches

Product Description

This Lovejoy rivet pin set includes 25 rivet pins that fit Lovejoy D and HD type universal joints. Rivet pins insert through aligned holes in the center block and yoke ears to locate and secure the parts together. The pins are made of American Iron and Steel Institute (AISI) grade 1144 carbon steel for strength, durability, and machinability. They fit D and HD 1 to 14 type single universal pin-and-block universal joints, and operate at temperatures ranging from -20 to +212 degrees F. Lovejoy universal joints are used in various commercial and industrial applications such as compressors, fans, machine tools, printing presses, and textile machinery.

Universal joints (also called U-joints, universal couplings, Cardan joints, Hooke’s joints, or Hardy-Spicer joints) are used to transmit motion and rotational power, or torque, between two shafts that are offset at an angle. Most universal joints consist of two yokes and a middle assembly; the hub end of each yoke attaches to a shaft while the yoke ears attach to and pivot around the middle assembly to accommodate shaft misalignment. The type of middle assembly determines its usage—pin and block joints are suitable for transmitting high torque, needle bearing joints are used to handle high rotational speeds, and ball and socket joints are used in applications requiring low backlash (play between moving parts). The body of the universal joint may include a single joint to accommodate only angular misalignments between shafts, or two joints to accommodate both angular and parallel misalignments. Available in a variety of materials and configurations, universal joints are used in applications including motor vehicles, conveyors, medical and optical devices, forestry and mining equipment, robotics and space exploration, and aeronautics, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
