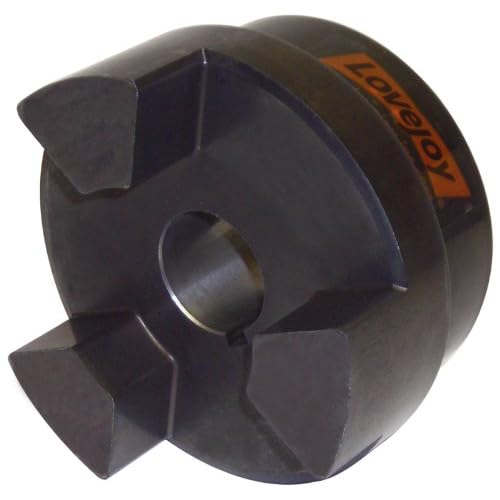

Lovejoy Jaw Coupling, L Type, Jaw Coupling Hub, Sintered Iron, Inch

Be the first to review this item

Product Specifications
Material Type
Iron
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 77 Next 20 »
Mfr Part # Coupling Size Bore A Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 77 Next 20 »
68514410206 L050 0.25" 1.08" 0.62" 50 in-lbs B003HIWNU2 3 $3.49 Buy Options
68514410207 L050 0.313" 1.08" 0.62" 50 in-lbs B003HIWNVG 3 $3.26 Buy Options
68514410208 L050 0.375" 1.08" 0.62" 50 in-lbs B003HIWNX4 5 $2.45 Buy Options
68514410209 L050 0.438" 1.08" 0.62" 50 in-lbs B003HIWNZC 1 $2.71 Buy Options
68514410210 L050 0.5" 1.08" 0.62" 50 in-lbs B003HIWO0G 9 $3.49 Buy Options
68514410214 L050 0.625" 1.08" 0.62" 50 in-lbs B003HIWO1U 5 $2.71 Buy Options
68514410419 L070 0.438" 1.36" 0.75" 114 in-lbs B003HIWOCO 2 $5.06 Buy Options
68514410420 L070 0.5" 1.36" 0.75" 114 in-lbs B003HIWODS 2 $5.06 Buy Options
68514410421 L070 0.5" 1.36" 0.75" 114 in-lbs B003HIWOF6 13 $5.06 Buy Options
68514410424 L070 0.625" 1.36" 0.75" 114 in-lbs B003HIWOGA 6 $5.06 Buy Options
68514410426 L070 0.75" 1.36" 0.75" 114 in-lbs B003HIWOHO 3 $4.22 Buy Options
68514410680 L075 0.25" 1.75" 0.82" 227 in-lbs B003HIWOK6 5 $6.27 Buy Options
68514410682 L075 0.375" 1.75" 0.82" 227 in-lbs B003HIWOLA 7 $5.81 Buy Options
68514410683 L075 0.438" 1.75" 0.82" 227 in-lbs B003HIWOME 1 $5.81 Buy Options
68514410684 L075 0.5" 1.75" 0.82" 227 in-lbs B003HIWOP6 6 $5.81 Buy Options
68514410685 L075 0.5" 1.75" 0.82" 227 in-lbs B003HIWOQA 54 $5.88 Buy Options
68514410687 L075 0.563" 1.75" 0.82" 227 in-lbs B003HIWORO 2 $5.81 Buy Options
68514410688 L075 0.625" 1.75" 0.82" 227 in-lbs B003HIWOT2 25 $5.81 Buy Options
68514410690 L075 0.75" 1.75" 0.82" 227 in-lbs B003HIWOU6 39 $5.81 Buy Options
68514410692 L075 0.875" 1.75" 0.82" 227 in-lbs B003HIWOVK 43 $5.81 Buy Options

Key Features

  • For use with Lovejoy L type Jaw style flexible coupling assembly (sold separately)
  • Iron sintered with powdered metals for strength, durability, and corrosion resistance
  • Transfers shock and misalignment to the center element of the coupling assembly for reduced wear on the shaft assembly

Product Description

This Lovejoy jaw coupling hub replaces hubs on Lovejoy L type jaw style flexible couplings and is made of iron sintered with powdered metals for strength, durability, and corrosion resistance. This hub transfers shock and misalignment from the shaft to the center element of the coupling assembly for reduced wear on the shaft assembly. Lovejoy Jaw style couplings are suitable for use in various industrial power transmission applications such as compressors, blowers, pumps, conveyors, mixers, and gear boxes, among others.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
