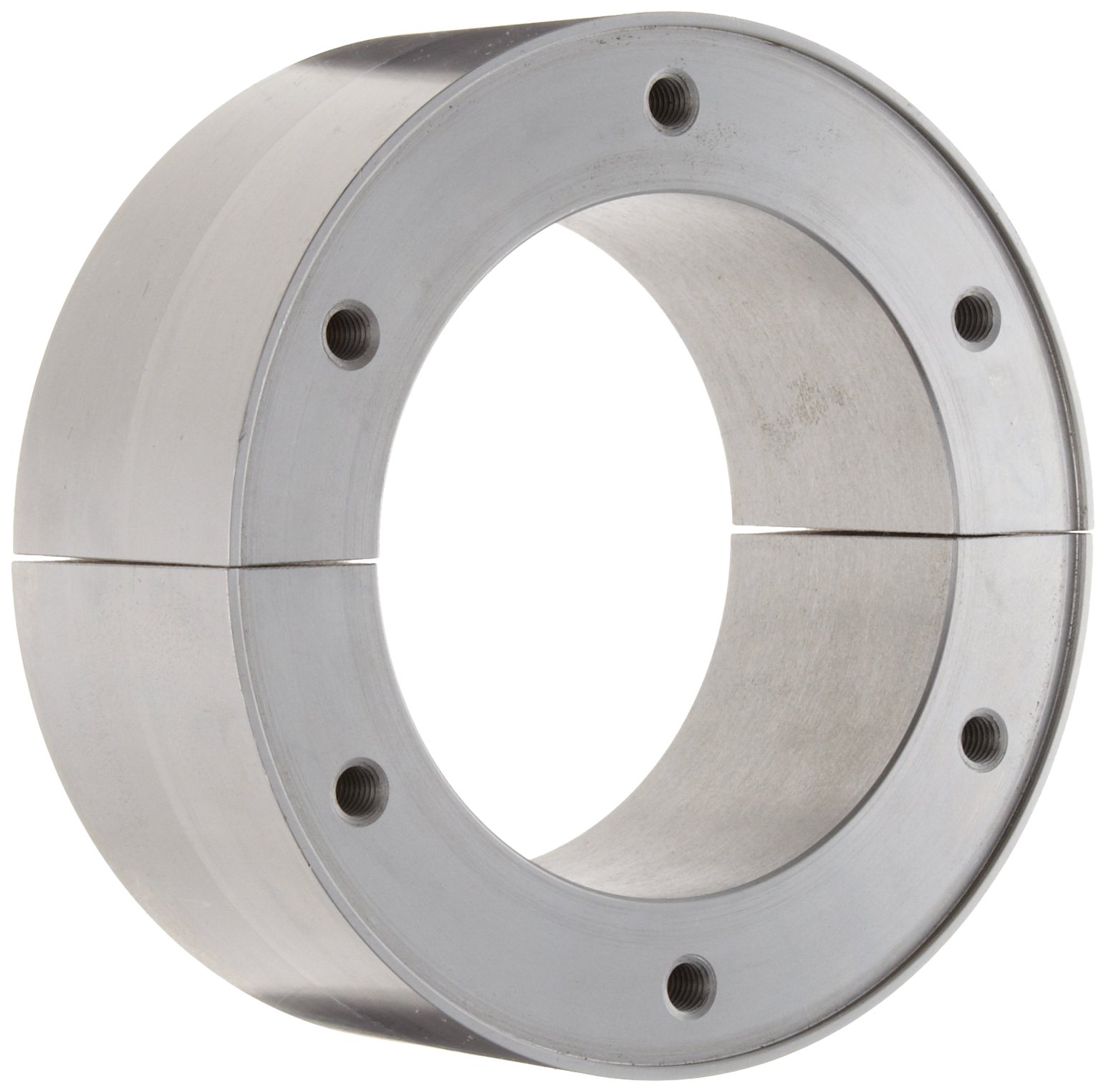

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lovejoy Disc Coupling, SXCS Type, Close Coupled Split Spacer Disc Coupling Spacer

Be the first to review this item

Product Specifications
UNSPSC Code
31163000
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 3 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Mfr Part # Coupling Size Outside Diameter ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
69790412992 SXCS90-6   B004QWZSRI Usually ships in 3 to 6 weeks $70.25 Buy Options
69790493428 SXCS110-6 5.04" B004QWZSOG Usually ships in 3 to 6 weeks $86.59 Buy Options
69790493429 SXCS132-6 5.87" B004QWZSP0 yes $100.07 Buy Options
69790493430 SXCS158-6 6.89" B004QOALBE Usually ships in 3 to 6 weeks $130.89 Buy Options
69790493431 SXCS185-6 7.83" B004QWZSPK Usually ships in 3 to 6 weeks $147.82 Buy Options
69790493432 SXCS202-6 8.58" B004QWZSQ4 Usually ships in 3 to 6 weeks $200.13 Buy Options
69790493433 SXCS228-6 9.72" B004QWZSQE Usually ships in 3 to 6 weeks $257.78 Buy Options
69790493434 SXCS255-6 10.94" B004QWZSR8 Usually ships in 3 to 5 weeks $285.28 Buy Options

Key Features

  • Spacer for use with SXCS-type disc coupler assembly (not included)
  • Assembly allows coupling the shafts without disturbing the hubs
  • Accommodates angular, axial, and parallel misalignment
  • Rotational speeds up to 7,200 rpm without special balancing
  • Torsionally rigid without backlash

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
