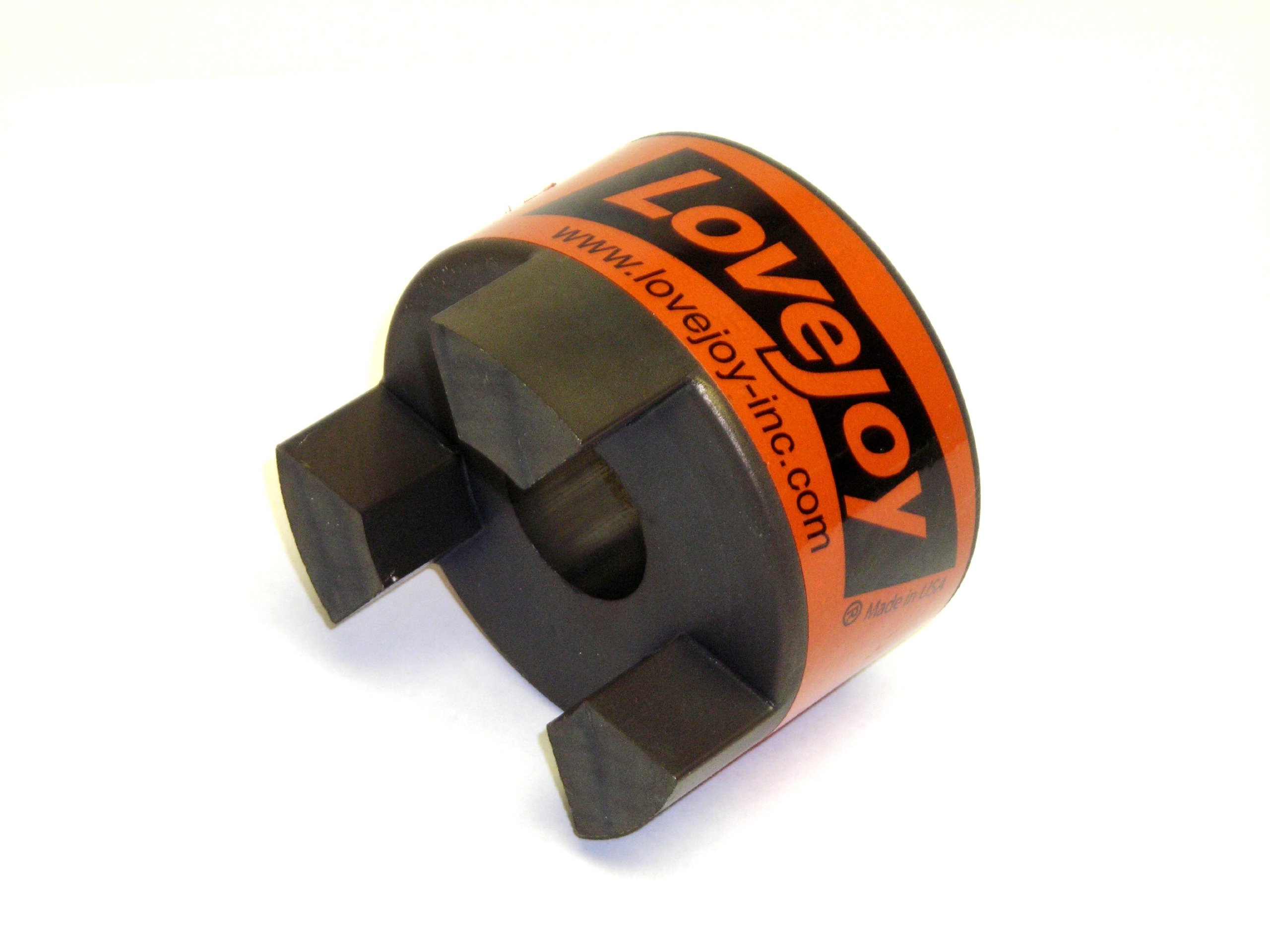

Lovejoy Jaw Coupling Hub, Sintered Iron, Metric
Be the first to review this item
ASIN B003HIWPAU
Product Specifications
- Angular Misalignment
- 1 Degrees
- Bore A Diameter
- 19 millimeters
- Bore B Diameter
- 19 millimeters
- Bore Depth
- 25.4 millimeters
- Coupling Size
- L095
- EAN
- 0685144413260
- Hub Style
- L
- Key Way Depth
- 2.8 millimeters
- Key Way Width
- 6 millimeters
- Length
- 25.4 millimeters
- Max Rotational Speed
- 9000 RPM
- Number of Items
- 1
- Outside Diameter
- 53.594 millimeters
- Parallel Misalignment
- 0.015 inches
- Part Number
- 41326
- Torque
- 63.39 Newton Meters
- UPC
- 685144413260
Specification for this product family (See all products)
- Brand Name
- Lovejoy
- Material Type
- Iron
- System of Measurement
- Metric
In Stock (2)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 25? Order in-stock items in the next 1 hour 45 minutes and choose One-Day Shipping at checkout.
Lovejoy 41326 Size L095 Jaw Coupling Hub, Sintered Iron, Metric, 19 mm Bore A, 19 mm Bore B, 53.594 mm OD, 25.4 mm Length, 63.39 Nm Nominal Torque, 6 mm x 2.8 mm Keyway
Key Features
- Keyway size 6 millimeter by 2.8 millimeter
- To build a complete L095 coupling purchase 2 L095 hubs and 1 L-AL 090-095 elastomer
- Lovejoy has been the top-selling jaw coupling worldwide since 1927
- Resistant to oil, dirt, sand, moisture and grease
- Fail-safe, will still perform if elastomer fails
Package Details
Shipping Weight: 0.45 pounds
Product Description
Lovejoy Jaw couplings have been the worldwide sales leader and industry standard for over 80 years. They are offered in the industry's largest variety of stock bore and keyway combinations. Lovejoy Jaw couplings require no lubrication because there is no metal to metal contact. They provide excellent resistance to oil, dirt, sand, moisture and grease. Lovejoy Jaw couplings are fail-safe, which means that they will continue to perform even if the elastomer fails. This protects both driving and driven equipment from catastrophic damage. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers and conveyors. Lovejoy's jaw couplings cover AGMA, SAE and DIN standard bore-keyway combinations.
