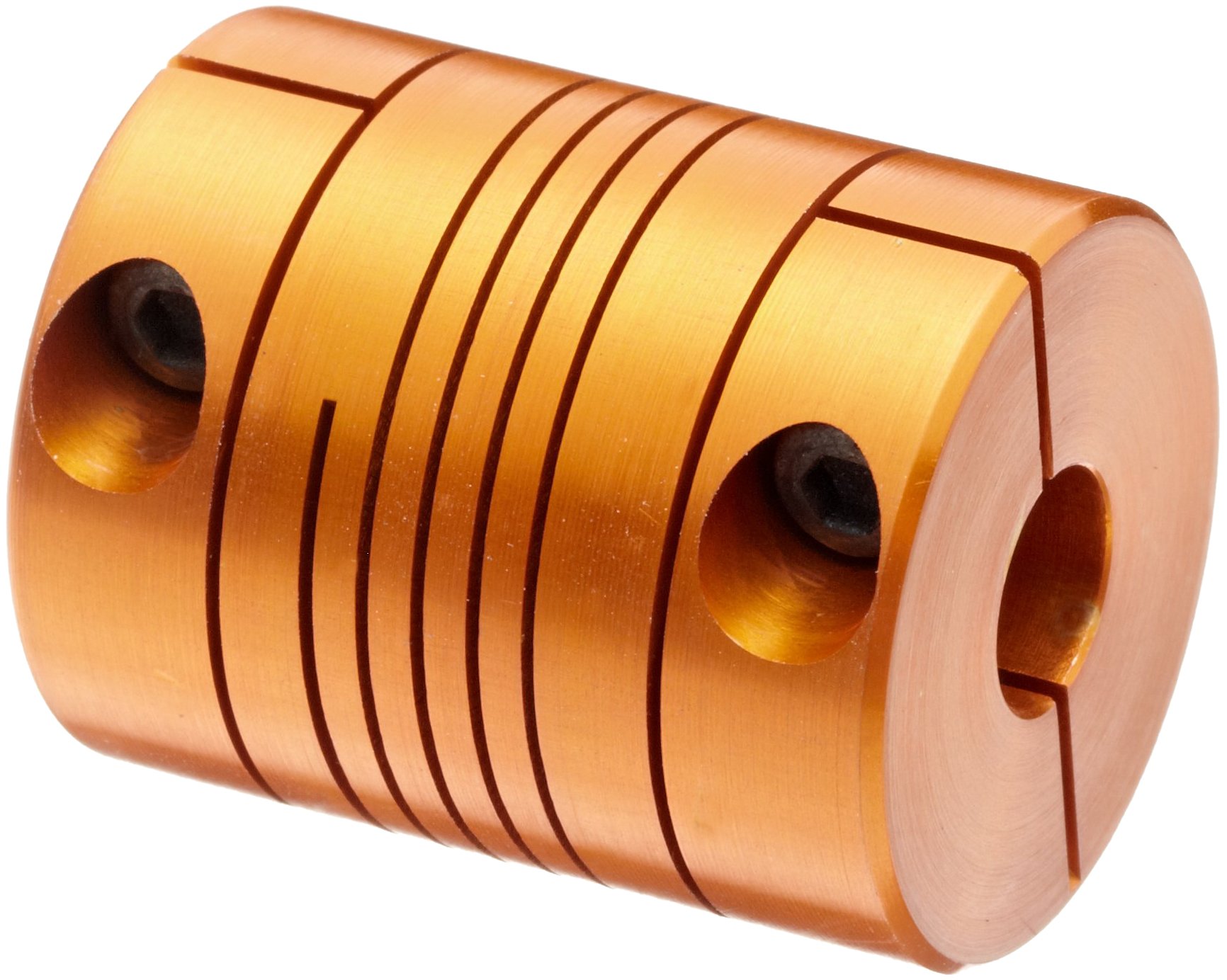

Lovejoy Beam Coupling, EC Series Single Beam Clamp Style Coupling, Aluminum, Inch, Complete Coupling

Be the first to review this item

Product Specifications
Material Type
Aluminum
UNSPSC Code
31163000
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 4 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Mfr Part # Coupling Size Bore A Diameter Bore B Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-15 of 15
68514456620 EC050 1/8" 1/8" 0.512" 0.748" 1.8 in-lbs B003U6HZBI Usually ships in 3 to 5 weeks $33.39 Buy Options
68514456628 EC075 3/16" 3/16" 0.748" 0.906" 5 in-lbs B003U6HZEA yes $42.30 Buy Options
68514456630 EC075 3/16" 1/4" 0.748" 0.906" 5 in-lbs B003U6HZDQ yes $38.58 Buy Options
68514456632 EC075 1/4" 1/4" 0.748" 0.906" 5 in-lbs B003U6HZCC yes $38.58 Buy Options
68514456640 EC100 1/4" 1/4" 0.984" 1.260" 11 in-lbs B003U6HZEU yes $46.39 Buy Options
68514456642 EC100 1/4" 3/8" 0.984" 1.260" 11 in-lbs B003U6HZG8 yes $46.39 Buy Options
68514456644 EC100 3/8" 3/8" 0.984" 1.260" 11 in-lbs B003U6HZHC yes $46.39 Buy Options
68514456652 EC112 3/8" 3/8" 1.102" 1.469" 17 in-lbs B003U6HZJU Usually ships in 3 to 5 weeks $57.84 Buy Options
68514456654 EC112 3/8" 1/2" 1.102" 1.469" 17 in-lbs B003U6HZJA yes $57.84 Buy Options
68514456656 EC112 1/2" 1/2" 1.102" 1.469" 17 in-lbs B003U6HZHW yes $57.84 Buy Options
68514458284 EC050 3/16" 1/8" 0.512" 0.748" 1.8 in-lbs B004QWZHY2 yes $16.09 Buy Options
68514458292 EC100 5/16" 5/16" 0.984" 1.26" 11 in-lbs B004QWZI9Q yes $47.30 Buy Options
68514458298 EC112 5/16" 5/16" 1.102" 1.496" 17 in-lbs B004QOAZ2E yes $44.53 Buy Options
68514477392 EC075 1/8" 3/16" 0.748" 0.906" 5 in-lbs B003U6HZD6 yes $42.30 Buy Options
68514477394 EC112 1/4" 3/8" 1.102" 1.469" 17 in-lbs B003U6HZI6 yes $57.84 Buy Options

Key Features

  • Single beam coupling for use in angular, parallel, and axial misalignment scenarios requiring zero backlash
  • Aluminum for less weight and quicker response time than stainless steel
  • Clamp mounting style installation helps increase positioning accuracy
  • Single-piece coupling for longer service life than couplings with moving parts
  • Operating temperatures up to 200 degrees F

Product Description

This Lovejoy aluminum clamp style single beam coupling is intended for use in angular, parallel, and axial misalignment scenarios requiring zero backlash and less weight and quicker response time than a stainless steel coupler has. Beam couplings, a type of flexible coupling, use one or more spiral slots cut in a single piece of metal rod to form a "spring" center section, referred to as a helical coil or beam. The beam portions of the coupling flex to accommodate misalignment while continuing to convey power between the attached shafts. This beam coupling corrects angular misalignment up to 5 degrees, parallel misalignment up to 0.005", and axial motion up to 0.010". This beam coupling's clamp-style mount can be installed or replaced without moving the shafts, which eases installation. Its single-piece construction provides longer service life than couplings with moving parts. The aluminum coupling is resistant to corrosion and can operate in temperatures up to 200 degrees F. This Lovejoy clamp style single beam coupling is suitable for use in light duty applications such as coupling a servo motor to a lead screw in a motion control system.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
