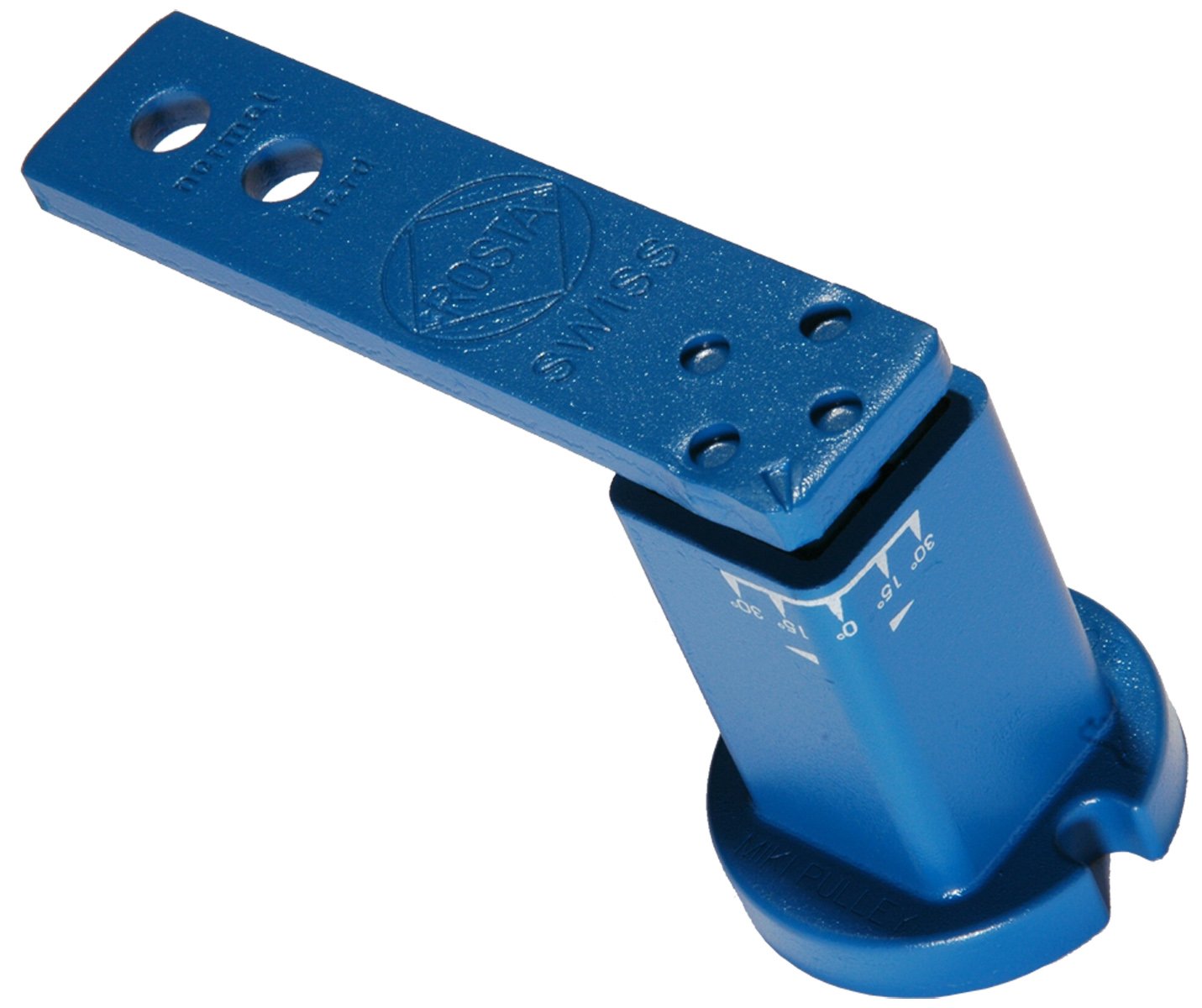

Lovejoy ROSTA Size SE45 Elastomeric Belt And Chain Tensioner

Be the first to review this item

ASIN B003UEQWKA

Product Specifications
Part Number
68514417456
UPC
685144174567
Material Type
housings-sintered iron, arms-steel
Overall Length
7.87  inches
Trade Size
SE45
Body Outside Diameter
4.53  inches
EAN
0685144174567
Number of Items
1
Outside Diameter
4.53  inches
Specification for this product family (See all  products)
UNSPSC Code
27112124
Brand Name
Lovejoy

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 2 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Take-up idler for restoring an elongated chain or belt to its original tension
  • Self-adjusting for maintenance-free use
  • Sintered iron housing and steel arm for strength and durability
  • Four elastomeric inserts in housing for shock and vibration absorption
  • Mounts at any angle for 360-degree controlled tensioning

Package Details

Shipping Weight: 15.4 pounds
Package Size: 12.9 x 8.4 x 4.5 inches

Product Description

This Lovejoy ROSTA SE-Series tensioner is a take-up idler for restoring an elongated chain or belt to its original tension and preventing uneven drive surges and power loss. (Idler shaft and sprocket/pulley not included.) It is self-adjusting for maintenance-free use. It has a sintered iron housing and a steel arm for strength and durability and four elastomeric inserts in the housing for shock and vibration absorption. The tensioning arm will deflect up to 30 degrees either side of its neutral position, and it can be mounted at any angle for 360-degree controlled tensioning. The arm has two holes for additional flexibility to generate two levels of force.

Belt and chain tensioners reduce belt or chain slack that occurs in power transmission drive systems through normal operation. Slack reduces drive efficiency and decreases the life of drive components. Belt and chain tensioners help to maintain the correct drive belt or chain tension in a system by reducing this slack and transmitting drive torque uniformly, resulting in reduced noise and vibration and decreased sprocket, pulley, belt, or chain wear. They also reduce the risk of over-tensioning that exists with manual retensioning operations. Tensioners are available in three categories: fixed, adjustable, and automatic. Fixed tensioners must be remounted in order to alter the tension of a drive system. Manual tensioners require operators to adjust screws or reposition parts as belt or chain slack increases. Automatic tensioners apply tension as needed through the use of weight, springs, elastomers, or compressed air. Factors to consider in selecting a proper tensioner include drive power, speed, torque, load, operating cycles, and available mounting space. Belt and chain tensioners are used in industrial machinery, conveyor belts, automobiles, and other applications.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
