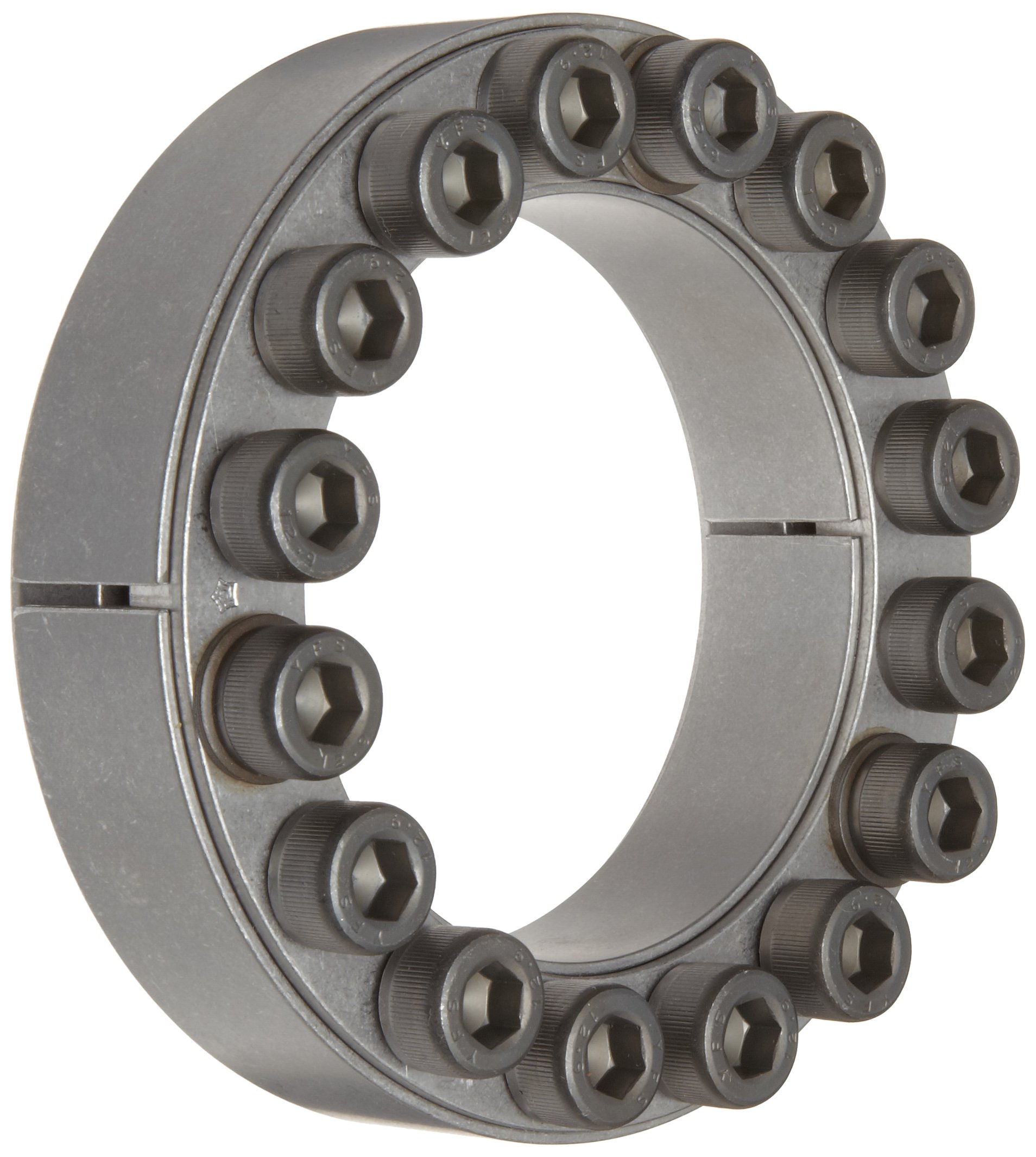

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Lovejoy 1500 Series Shaft Locking Device, Metric, 85 mm shaft diameter x 125mm outer diameter of shaft locking device, 4794 ft-lb Maximum Transmissible Torque

Be the first to review this item

ASIN B002E93SOA

Product Specifications
Part Number
69790498058
UPC
697904980585
Bore Diameter
85  millimeters
EAN
0697904980585
Number of Items
1
Outside Diameter
125  millimeters
Torque
4794  Foot Pounds
Trade Size
SLD 1500
Specification for this product family (See all  products)
UNSPSC Code
31163200
Brand Name
Lovejoy

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 13 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Shaft locking device for connecting a hub to a shaft in power transmission applications
  • Screw tension creates interference fit for zero backlash
  • High contact pressure for transmitting greater torque
  • Self-releasing for fast removal
  • Friction fit for elimination of shaft damage

Package Details

Shipping Weight: 3.55 pounds
Package Size: 6.6 x 6 x 3.8 inches

Product Description

This Lovejoy SLD 1500 Series metric internal shaft locking device connects a hub to a shaft in power transmission applications. Screw tension is converted into radial pressure to create an interference fit for zero backlash and high contact pressure for transmitting greater torque. It is self-releasing for easy removal, and the friction fit eliminates damage to the shaft caused by hub movement. This medium-torque shaft locking device is suitable for use with braiding machines, conveyor pulleys, packaging machines, and wind generators, among others.

Shaft collars are ring-shaped devices primarily used to secure components onto shafts. They also serve as locators, mechanical stops, and spacers between other components. The two basic types of shaft collars are clamping (or split) collars, which come in one- or two-piece designs, and setscrew collars. In both types, one or more screws hold the collars in place on the shaft. In setscrew collars, screws are tightened through the collar until they press directly against the shaft, and in clamping collars, screws are tightened to uniformly compress the collar around the shaft without impinging or marring it. Whereas setscrew collars and one-piece clamping collars must be installed by sliding the collar over the end of the shaft, two-piece clamping collars separate into two halves and can be installed between components on the shaft. Shaft collars are made from a wide range of materials including zinc-plated steel, aluminum, nylon, and neoprene. Found in nearly every type of machinery and industry, shaft collars are used in applications including gearbox assemblies, motor bases, machine tools, drive shafts, agricultural implements, medical equipment, and paper and steel mill equipment.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
