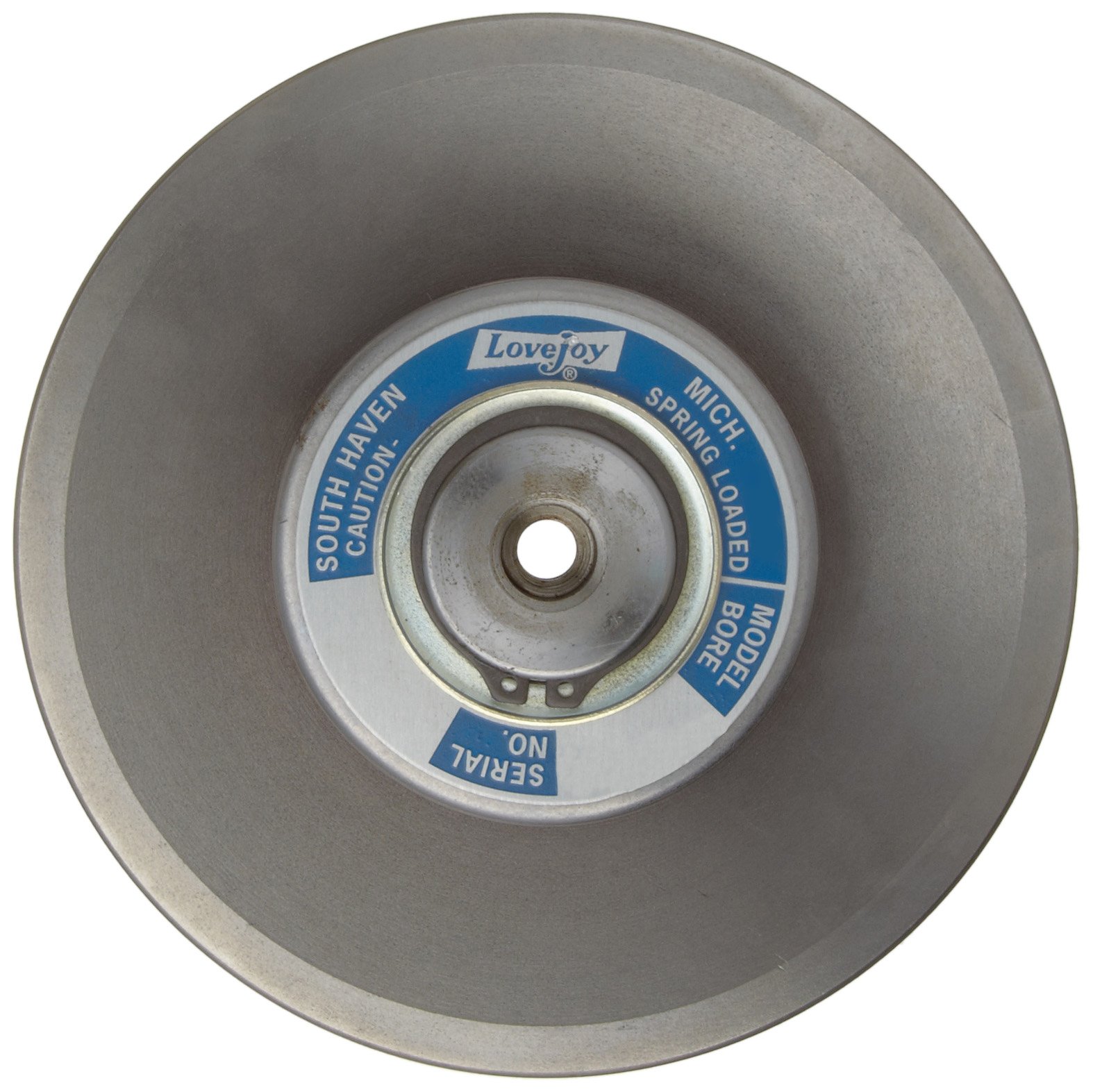

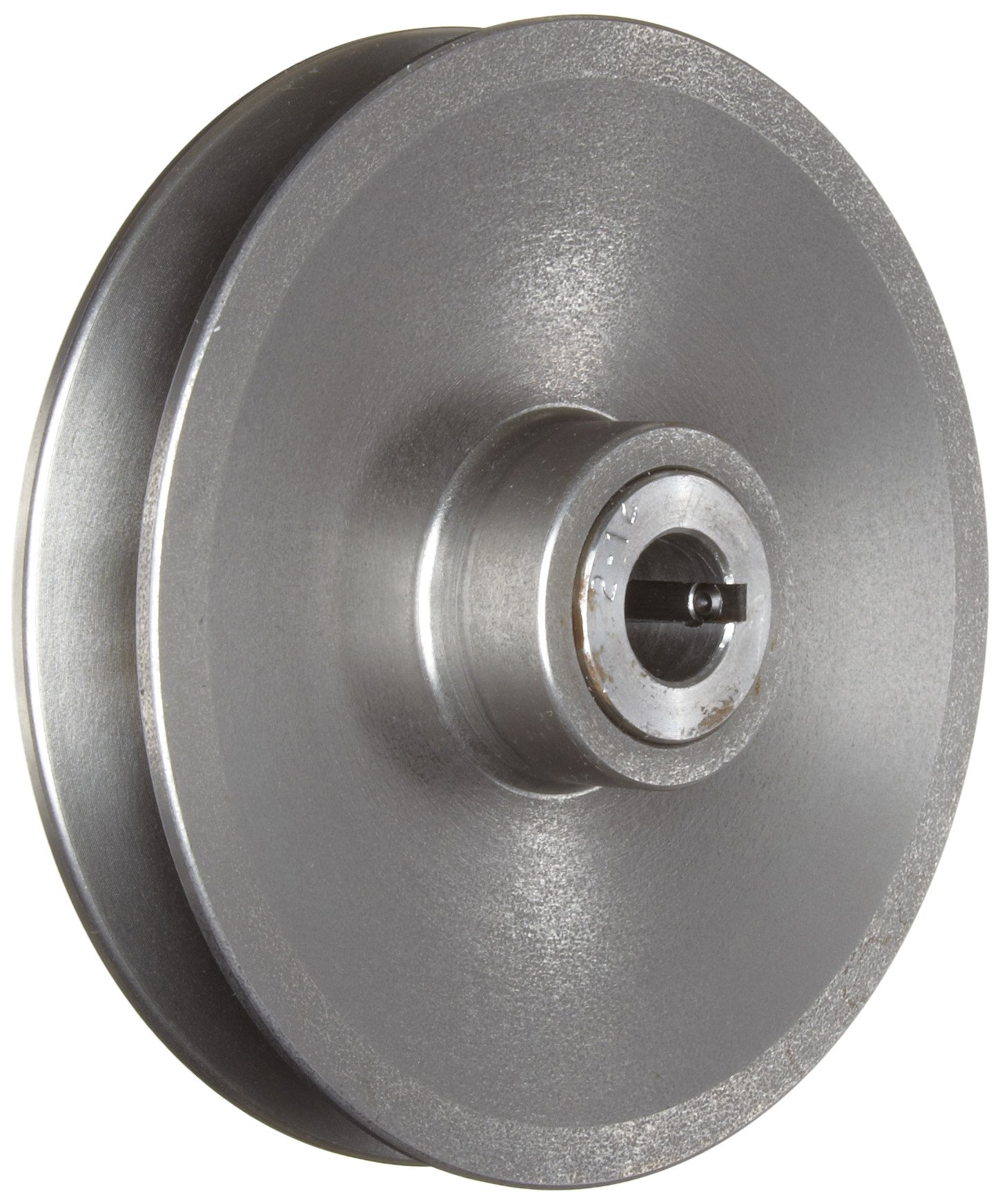

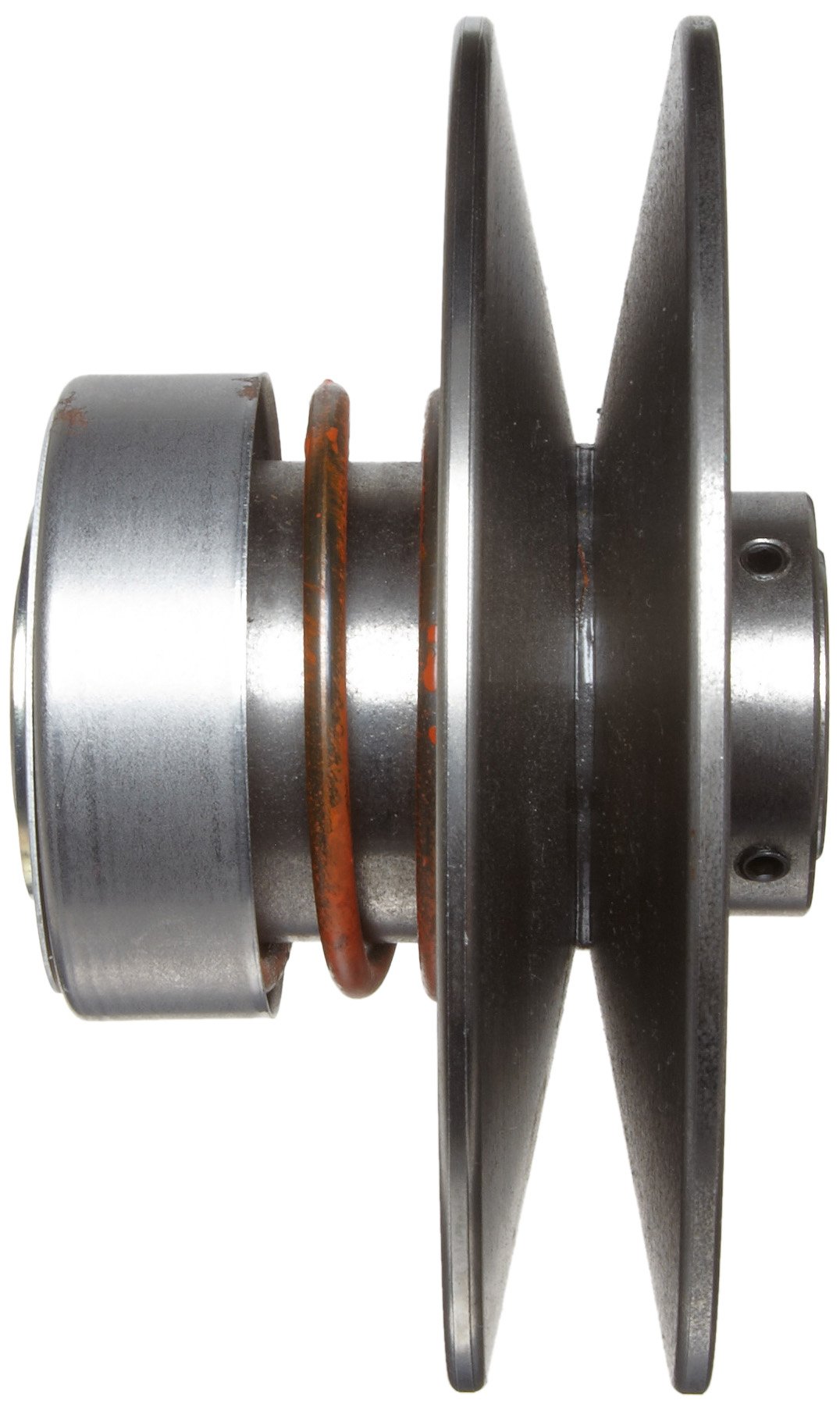

Lovejoy Variable Speed Drives, Hexadrive Variable Speed Pulley, 6" OD

Be the first to review this item

Product Specifications
Pitch
5.80  inches
UNSPSC Code
24101613
Outside Diameter
6  inches
Brand Name
Lovejoy

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 5 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Bore Diameter Max Rotational Speed

ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-12 of 12
0.62" 5/8" Bore, 36"ch-pounds Torque Capacity B004SR60MI Usually ships in 3 to 6 weeks $260.00 Buy Options
0.88" 7/8" Bore, 27"ch-pounds Torque Capacity B004SR61AE yes $232.00 Buy Options
0.88" 7/8" Bore, 36"ch-pounds Torque Capacity B004SR60DC Usually ships in 3 to 6 weeks $260.00 Buy Options
0.62" 5/8" Bore, 27"ch-pounds Torque Capacity B004SR6686 Usually ships in 3 to 6 weeks $270.00 Buy Options
0.62" 5/8" Bore, 27"ch-pounds Torque Capacity B004SR60VO yes $232.00 Buy Options
0.88" 7/8" Bore, 27"ch-pounds Torque Capacity B004SR66Z4 Usually ships in 3 to 6 weeks $270.00 Buy Options
0.75" 3/4" Bore, 36"ch-pounds Torque Capacity B004SR602S yes $78.61 Buy Options
0.88" 7/8" Bore, 36"ch-pounds Torque Capacity B004SR61T0 Usually ships in 3 to 6 weeks $320.00 Buy Options
0.62" 5/8" Bore, 36"ch-pounds Torque Capacity B004SR660E yes $320.00 Buy Options
0.75" 3/4" Bore, 27"ch-pounds Torque Capacity B004SR612W yes $232.00 Buy Options
0.75" 3/4" Bore, 27"ch-pounds Torque Capacity B004SR66P4 yes $286.33 Buy Options
0.75" 3/4" Bore, 36"ch-pounds Torque Capacity B004SR61KE Usually ships in 3 to 6 weeks $320.00 Buy Options

Key Features

  • Variable speed hexadrive pulley fits a broad range of variable speed belts suitable for use in power transmission drives, including agricultural equipment, food packaging machines, and air handling systems
  • Elastomer-covered hexagonal shaft prevents metal-to-metal contact of sliding surfaces and negates need for lubrication
  • Cast iron for resistance to wear and galling
  • Variable speed design for applications requiring speed changes
  • One groove for single belt use

Product Description

This Lovejoy hexadrive variable speed pulley with 6 inch outer diameter is made of cast iron and comes with one groove. It fits a broad range of variable-speed belts suitable for use in many power transmission drives, including agricultural equipment, food packaging machines, and air handling systems. The hexagonal-shaped center shaft is covered in elastomer, preventing metal-to-metal contact of the sliding surfaces and negating the need for lubrication of the shaft. This pulley is made of cast iron for resistance to wear, corrosion, and galling. It is designed for variable-speed drives for applications requiring speed changes and has one groove for use with single belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Lovejoy manufactures V-belt pulleys and other power transmission products. The company, founded in 1900 and headquartered in Downer’s Grove, IL, provides tools that meet American National Standards Institute (ANSI), Deutsches Institut für Normung (DIN) standards, and others.
