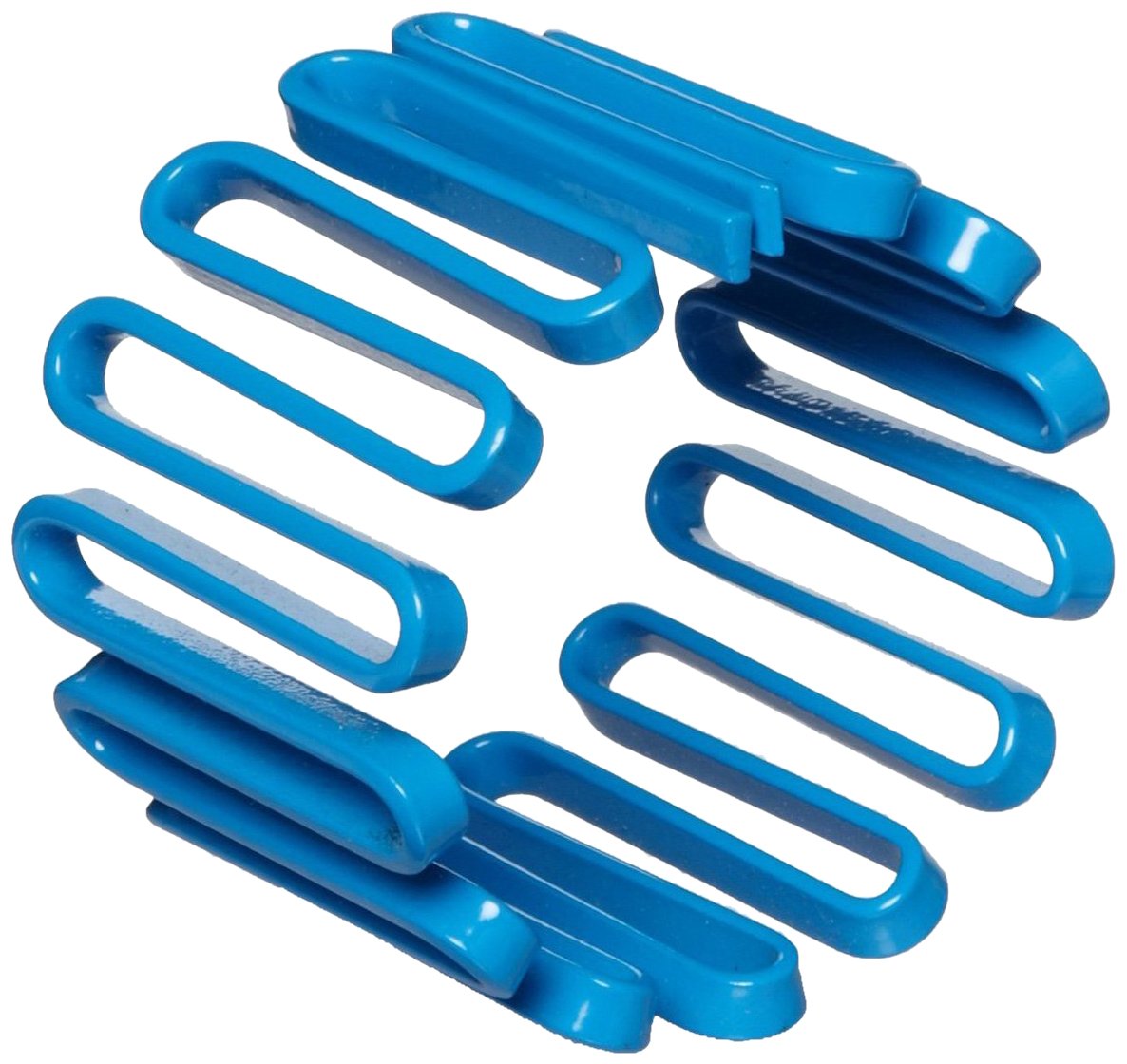

Lovejoy Grid Coupling, Grid Only

Be the first to review this item

Product Specifications
Material Type
Aluminum
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 19 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Mfr Part # Coupling Size Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-10 of 10
69790405244 1020 3.88" 460 in-lbs B0026GZUX8 2 $33.71 Buy Options
69790405245 1030 3.88" 1320 in-lbs B0025PXQKE 1 $42.41 Buy Options
69790405246 1040 4.12" 2200 in-lbs B00270XMYW 1 $48.93 Buy Options
69790405247 1050 4.88" 3850 in-lbs B0026GXXIW 1 $60.88 Buy Options
69790405248 1060 5.12" 6050 in-lbs B00207YWFA 5 $79.37 Buy Options
69790405249 1070 6.12" 8800 in-lbs B00270U3WQ 1 $108.71 Buy Options
69790405250 1080 7.12" 18150 in-lbs B002E7LP6K 1 $146.77 Buy Options
69790405251 1090 7.88" 33000 in-lbs B002E7FRQO 2 $197.86 Buy Options
69790405252 1100 9.69" 55550 in-lbs B004QX064M Usually ships in 1 to 3 months $252.22 Buy Options
69790405253 1110 10.19" 82500 in-lbs B004QX06C4 Usually ships in 1 to 3 months $323.97 Buy Options

Key Features

  • For use with Lovejoy 1000 series grid coupling assembly (sold separately)
  • Supports constant angular misalignment of up to 0.25 degrees
  • Die-cast aluminum is lightweight and resists corrosion and tarnishing
  • Operates from -40 to 250 degrees F (-40 to 121 degrees C)
  • Imperial unit measurements for industry consistency

Product Description

This Lovejoy 1000 series flexible coupling assembly grid replaces serpentine grids on existing Lovejoy 1000 series grid couplings and is made of lightweight, die-cast aluminum to resist corrosion and tarnishing. Grid couplings, a type of flexible coupling, use a flexible grid that fits into slotted hubs to transmit torque and offset rotational misalignment. The serpentine shape of the grid absorbs impact energy, reduces vibration, and transmits torque from one hub to the other through the grid. This grid is suitable for both horizontal and vertical-style coupling designs and uses imperial unit measurements for industry consistency and interchangeability. It has an operating temperature range of -40 to 250 degrees F (-40 to 121 degrees C). Together with the other component parts of the coupling assembly, the grid supports constant angular misalignments up to 0.25 degrees. It meets International Organization for Standardization (ISO) 9001 for quality assurance. Lovejoy 1000 series grid couplings are suitable for use in various industrial power transmission applications such as pumps, mixers, crushers, fans, compressors, conveyors, pulverizers, and other equipment found in the steel, pulp, paper, mining, aggregate, and construction industries.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
