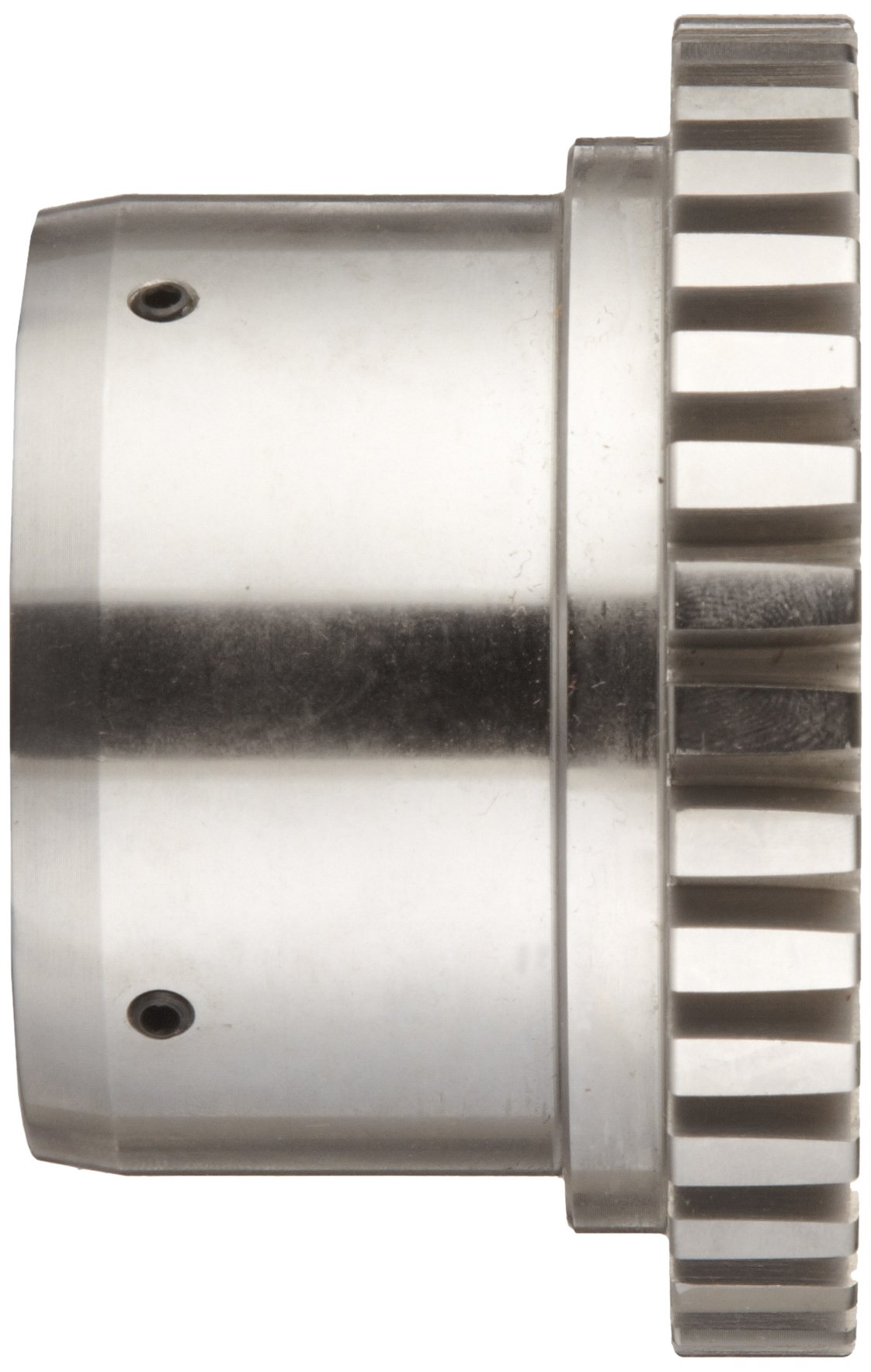

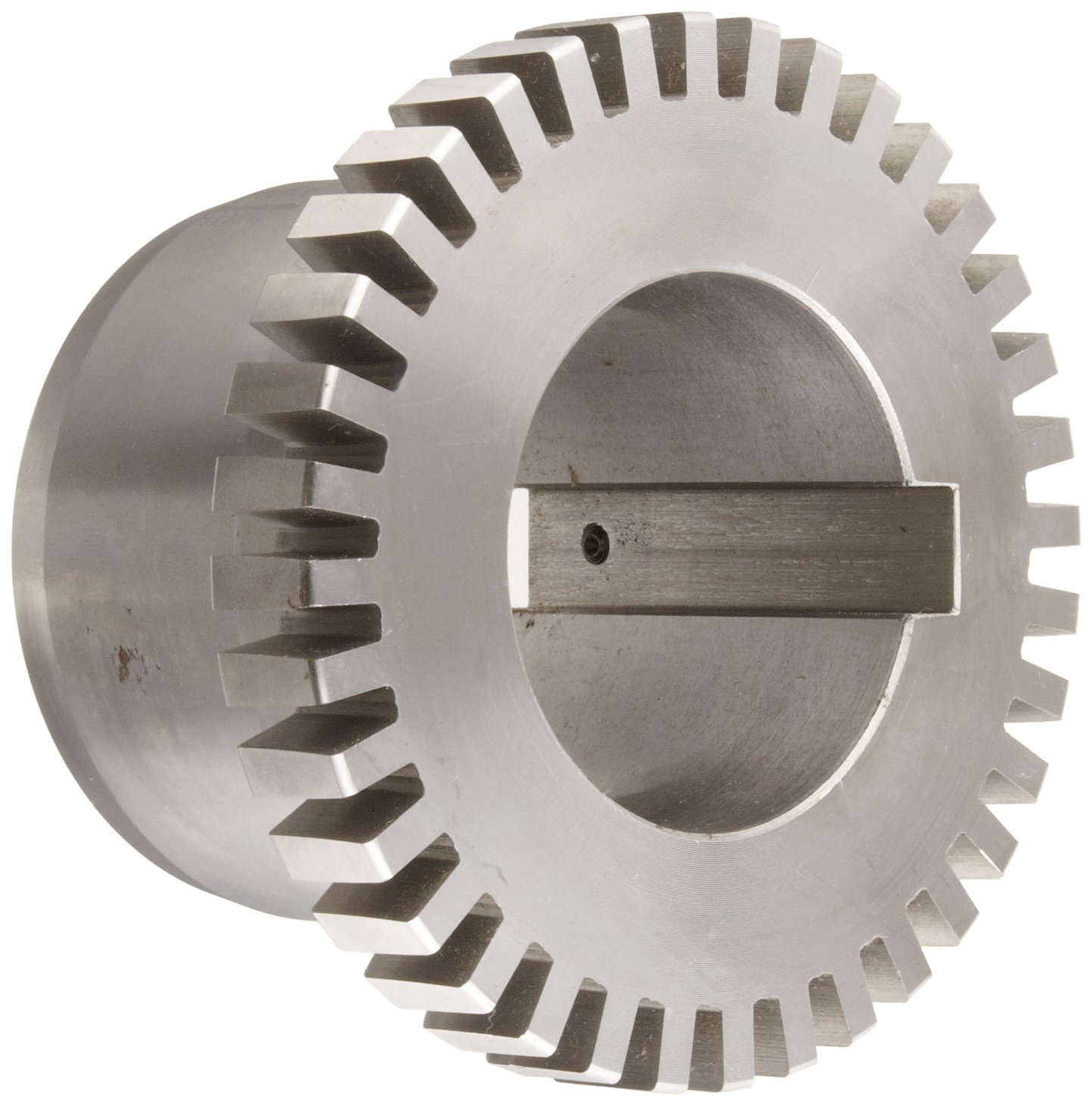

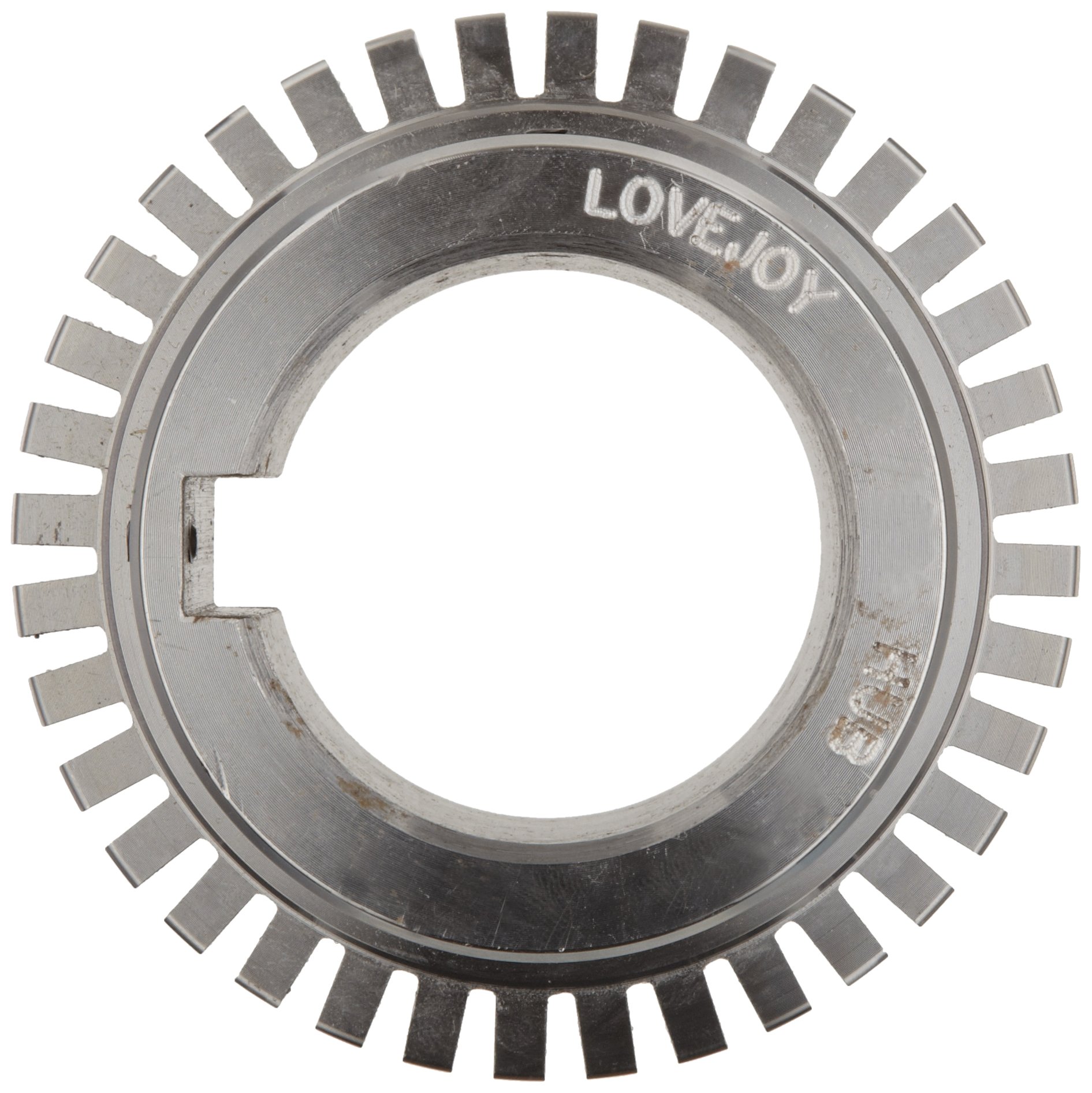

Lovejoy Grid Coupling, Coupling Hub, Inch

Be the first to review this item

Product Specifications
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 4 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 162 Next 20 »
Mfr Part # Coupling Size Bore A Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 162 Next 20 »
06841 1030     3.88" 1320 in-lbs B004QX04BW 1 $91.23 Buy Options
06842 1040     4.12" 2200 in-lbs B004QX04KI 1 $117.39 Buy Options
06844 1060     5.12" 6050 in-lbs B004QX0534 Usually ships in 1 to 3 months $130.46 Buy Options
06845 1070     6.12" 8800 in-lbs B004QX05DO Usually ships in 1 to 3 months $157.64 Buy Options
06846 1080     7.12" 18150 in-lbs B004QX05LQ Usually ships in 1 to 3 months $198.95 Buy Options
06847 1090     7.88" 33000 in-lbs B004QX05TI Usually ships in 1 to 3 months $283.75 Buy Options
06851 1030     3.88" 1320 in-lbs B004QX04C6 Usually ships in 1 to 3 months $78.95 Buy Options
06852 1040     4.12" 2200 in-lbs B004QX04KS Usually ships in 1 to 3 months $97.84 Buy Options
06853 1050     4.88" 3850 in-lbs B004QX04T4 Usually ships in 1 to 3 months $108.71 Buy Options
06854 1060     5.12" 6050 in-lbs B004QX053E Usually ships in 1 to 3 months $130.46 Buy Options
06855 1070     6.12" 8800 in-lbs B004QX05DY Usually ships in 1 to 3 months $144.08 Buy Options
06856 1080     7.12" 18150 in-lbs B004QX05M0 Usually ships in 1 to 3 months $198.95 Buy Options
06857 1090     7.88" 33000 in-lbs B004QX05TS Usually ships in 1 to 3 months $283.75 Buy Options
69790404386 1090 2.938"   7.88" 33000 in-lbs B004QX05X4 Usually ships in 1 to 3 months $189.16 Buy Options
69790405231 1020     3.88" 460 in-lbs B002E7HR30 1 $17.39 Buy Options
69790405232 1030     3.88" 1320 in-lbs B002E7HR58 1 $25.01 Buy Options
69790405233 1040     4.13" 2200 in-lbs B002E7NQ26 1 $33.71 Buy Options
69790405234 1050     4.88" 3850 in-lbs B002E7OPRG 1 $38.06 Buy Options
69790405235 1060     5.13" 6050 in-lbs B004QOASDA 1 $51.38 Buy Options
69790405236 1070     6.13" 8800 in-lbs B002E7NQBW 1 $69.58 Buy Options

Key Features

  • For use with Lovejoy 1000 series grid coupling assembly (sold separately)
  • Supports constant angular misalignment of up to 0.25 degrees
  • Stamped steel for strength and durability
  • Operates from -40 to 250 degrees F (-40 to 121 degrees C)
  • Imperial unit measurements for industry consistency

Product Description

This Lovejoy 1000 series grid coupling assembly hub replaces existing hubs on Lovejoy 1000 series style grid couplings and is made of stamped steel for strength and durability. Grid couplings, a type of flexible coupling, use a flexible grid that fits into slotted hubs to transmit torque and offset rotational misalignment. The serpentine shape of the grid absorbs impact energy, reduces vibration, and transmits torque from one hub to the other through the grid. This hub is suitable for both horizontal and vertical-style coupling designs and uses imperial unit measurements for industry consistency and interchangeability. It has an operating temperature range of -40 to 250 degrees F (-40 to 121 degrees C). Together with the other component parts of the coupling assembly, the grid supports constant angular misalignments up to 0.25 degrees. It meets International Organization for Standardization (ISO) 9001 for quality assurance. Lovejoy 1000 series grid couplings are suitable for use in various industrial power transmission applications such as pumps, mixers, crushers, fans, compressors, conveyors, pulverizers, and other equipment found in the steel, pulp, paper, mining, aggregate, and construction industries.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
