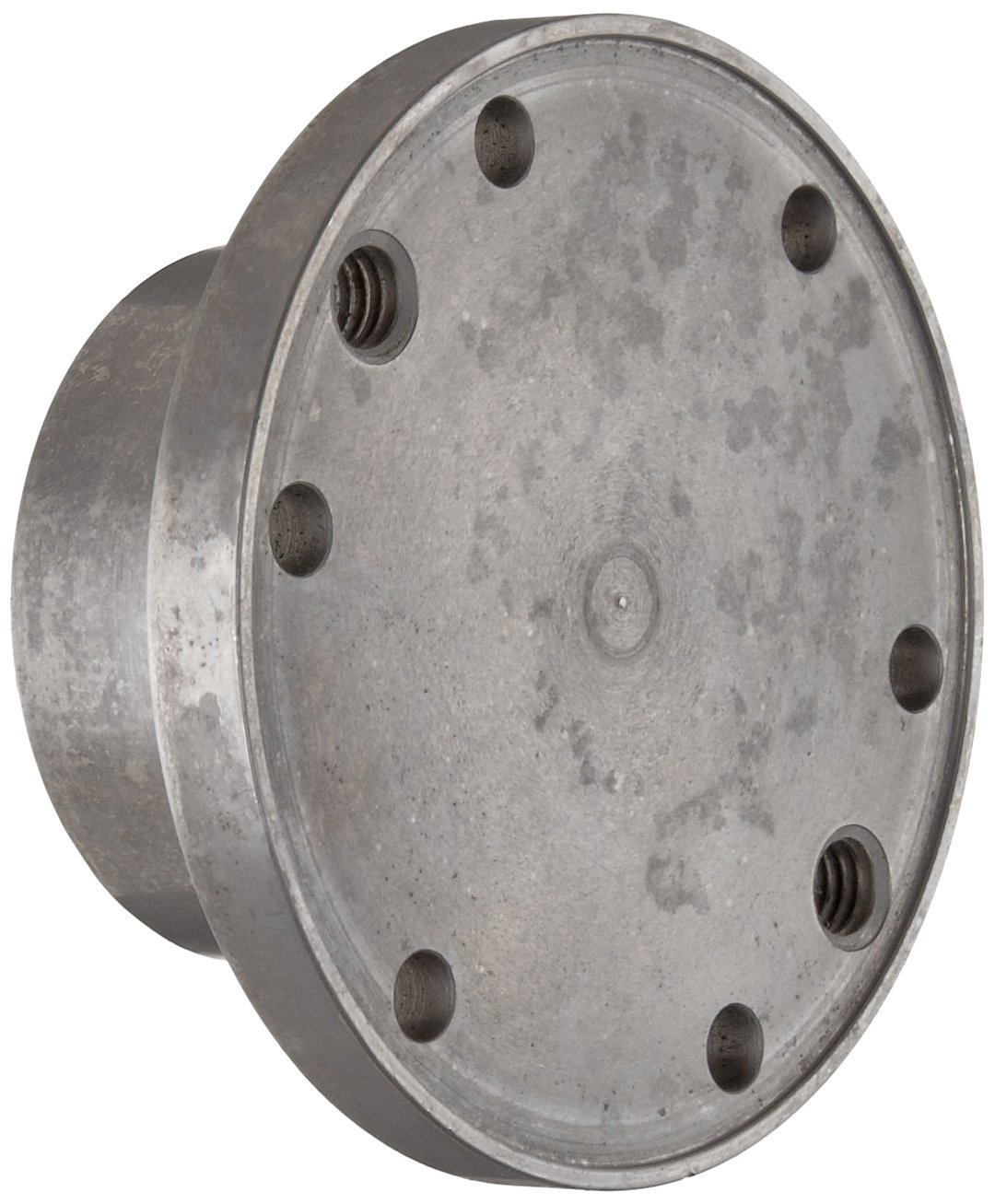

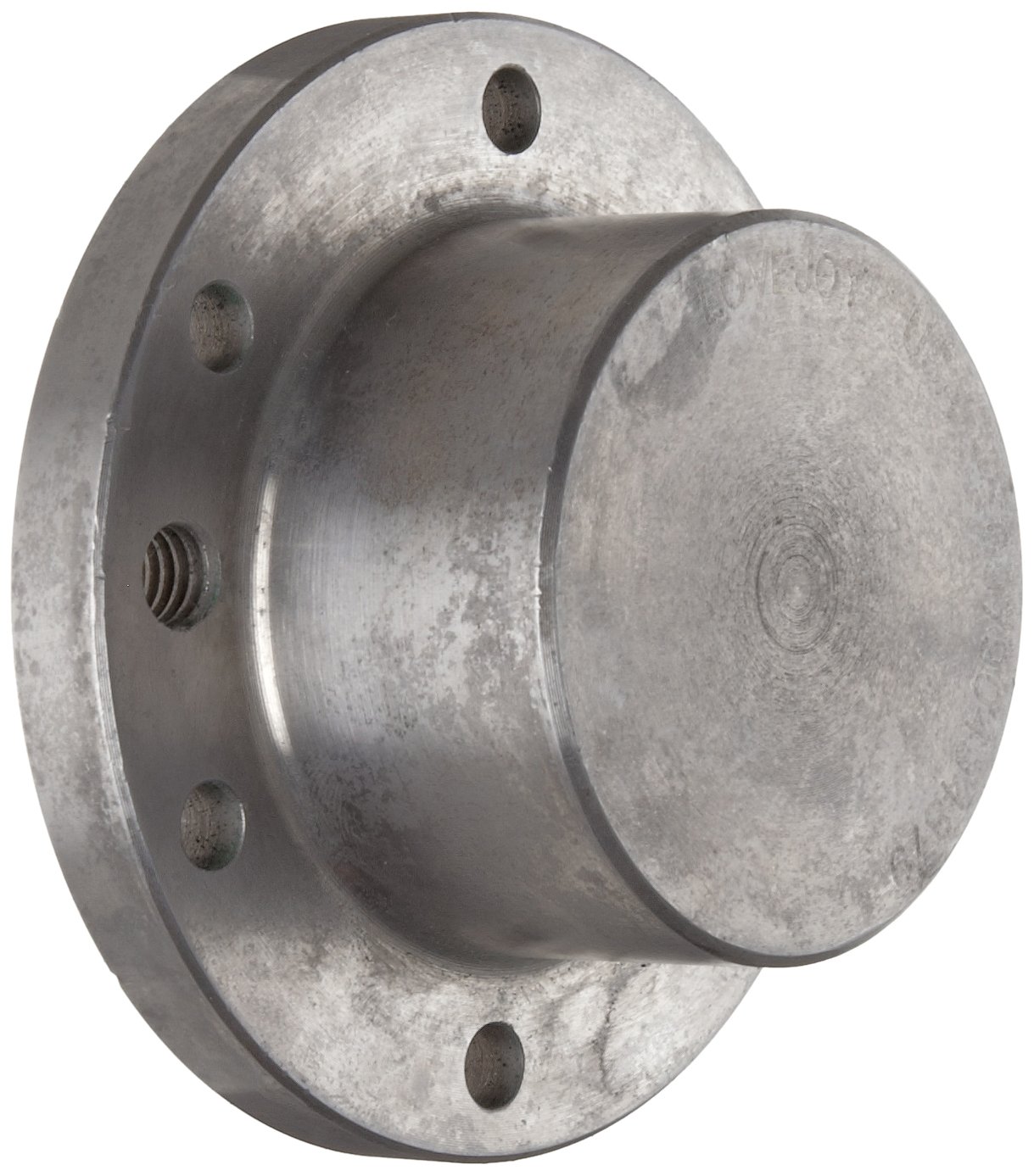

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lovejoy Disc Coupling, DI Type, Drop-In Spacer Disc Coupling Hub

Be the first to review this item

Product Specifications
UNSPSC Code
31163000
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-19 of 19
Mfr Part # Coupling Size Bore A Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-19 of 19
69790411364 DI158-6 2.7539/2.7559" 6.5" 11.02" 17700 in-lbs B004QWZTTK Usually ships in 3 to 6 weeks $190.95 Buy Options
69790411649 DI132-6 55 mm 5.47" 9.1" 9700 in-lbs B004QOALCS Usually ships in 3 to 6 weeks $122.68 Buy Options
69790412128 DI90-6 1.625" 3.7" 6.25" 2100 in-lbs B004QWZU0S Usually ships in 3 to 6 weeks $110.74 Buy Options
69790492069 DI110-6   4.53" 8.19" 5100 in-lbs B004QWZU7G yes $86.37 Buy Options
69790492070 DI132-6   5.47" 9.1" 9700 in-lbs B004QWZU80 Usually ships in 3 to 6 weeks $122.53 Buy Options
69790492071 DI158-6   6.5" 11.02" 17700 in-lbs B004QWZU8K Usually ships in 3 to 6 weeks $139.46 Buy Options
69790492072 DI185-6   7.6" 12.61" 29200 in-lbs B004QWZU94 Usually ships in 3 to 6 weeks $186.72 Buy Options
69790492073 DI202-6   8.27" 14.39" 40700 in-lbs B004QWZU9O Usually ships in 3 to 6 weeks $279.41 Buy Options
69790492074 DI228-6   9.29" 15.94" 62000 in-lbs B004QWZUA8 Usually ships in 3 to 6 weeks $303.75 Buy Options
69790493632 DI132-6 1.626" 5.47" 9.1" 9700 in-lbs B004QWZTZO Usually ships in 3 to 6 weeks $181.08 Buy Options
69790494879 DI90-6   3.7" 6.25" 2100 in-lbs B004QWZUAS yes $70.26 Buy Options
69790495123 DI110-6 1.625" 4.53" 8.19" 5100 in-lbs B004QWZU08 Usually ships in 3 to 6 weeks $120.55 Buy Options
69790496298 DI132-6 1.375" 5.47" 9.1" 9700 in-lbs B004QWZU1M Usually ships in 3 to 6 weeks $164.14 Buy Options
69790497126 DI110-6 1.125" 4.53" 8.19" 5100 in-lbs B004QWZTMC Usually ships in 3 to 6 weeks $120.56 Buy Options
69790497403 DI110-6 1.625" 4.53" 8.19" 5100 in-lbs B004QWZTZ4 Usually ships in 3 to 6 weeks $128.87 Buy Options
69790497874 DI110-6 0.875" 4.53" 8.19" 5100 in-lbs B004QWZTY0 Usually ships in 3 to 6 weeks $120.41 Buy Options
69790499090 DI132-6 2.5" 5.47" 9.1" 9700 in-lbs B004QWZU1W Usually ships in 3 to 6 weeks $181.08 Buy Options
69790499458 DI110-6 0.75" 4.53" 8.19" 5100 in-lbs B004QWZTGS Usually ships in 3 to 6 weeks $137.34 Buy Options
99457 DI110-6   4.53" 8.19" 5100 in-lbs B004QWZTUY Usually ships in 3 to 6 weeks $137.51 Buy Options

Key Features

  • Hub for use with drop-in spacer disc coupler assembly (not included)
  • Assembly allows coupling the shafts without disturbing the hubs
  • Accommodates angular, axial, and parallel misalignment
  • Rotational speeds up to 9,100 rpm without special balancing
  • Meets American Gear Manufacturers Association (AGMA) Class 9 balance requirements

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
