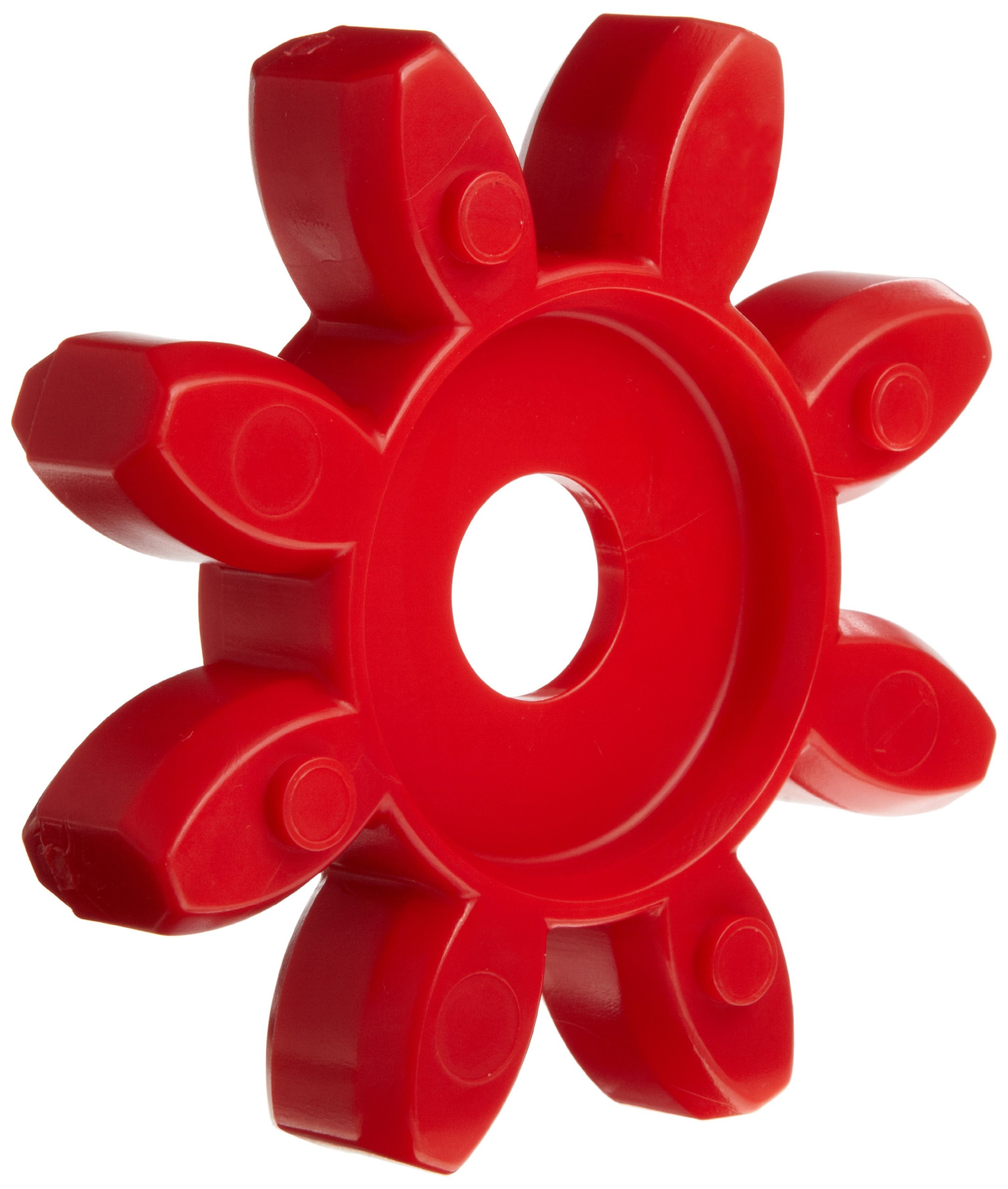

Lovejoy Curved Jaw Coupling, CJ and GS Type, Coupling Elastomer Spider, Urethane

Be the first to review this item

Product Specifications
Material Type
Urethane
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 13 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 58 Next 20 »
Torque Maximum Rotational Speed ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 58 Next 20 »
150.5 in-lbs 9550 rpm B004QX002U 1 $15.71 Buy Options
840.8 in-lbs 5850 rpm B004QX00ES 5 $18.41 Buy Options
66 in-lbs 19000 rpm B004QX0084 Usually ships in 1 to 3 months $4.92 Buy Options
16990 in-lbs 3550 rpm B004QX00I4 2 $62.69 Buy Options
1770 in-lbs 8500 rpm B004QWZZXU Usually ships in 1 to 3 months $14.12 Buy Options
660 in-lbs 10600 rpm B004QWZZXA 6 $14.00 Buy Options
5798 in-lbs 3600 rpm B004QX00OI 1 $88.68 Buy Options
5530 in-lbs 4250 rpm B004QX00CU 1 $46.33 Buy Options
6060 in-lbs 4750 rpm B004QX00MK 6 $25.97 Buy Options
3625 in-lbs 4750 rpm B004QX00CA 1 $28.32 Buy Options
2740 in-lbs 5600 rpm B004QX00BQ Usually ships in 1 to 3 months $21.36 Buy Options
3980 in-lbs 6000 rpm B004QX00LG 2 $19.01 Buy Options
31860 in-lbs 2800 rpm B004QX00IE 1 $105.04 Buy Options
185.9 in-lbs 9550 rpm B004QX0020 1 $29.56 Buy Options
150 in-lbs 14000 rpm B004QX00J8 1 $7.49 Buy Options
3585 in-lbs 7100 rpm B004QWZZYE 1 $28.17 Buy Options
1681 in-lbs 4750 rpm B004QX00G6 1 $23.90 Buy Options
310 in-lbs 10600 rpm B004QX0098 6 $7.13 Buy Options
4646 in-lbs 3600 rpm B004QX00PM 1 $38.56 Buy Options
3584 in-lbs 4750 rpm B004QX00FW 1 $52.75 Buy Options

Key Features

  • For use with Lovejoy curved jaw style flexible coupling assembly (sold separately)
  • Urethane for transferring and absorbing shock load
  • Absorbs shock and misalignment within the coupling assembly for reduced wear on the shaft assembly

Product Description

This Lovejoy curved jaw coupling spider replaces the spiders on Lovejoy curved jaw style flexible spider coupling assemblies and is made of urethane for transferring and absorbing shock load. This center element, also known as a spider, absorbs shock and misalignment within the coupling assembly for reduced wear on the shaft assembly. Lovejoy curved jaw style couplings are a type of flexible coupling suitable for use in various industrial power transmission applications such as compressors, blowers, pumps, conveyors, mixers, and gear boxes, among others.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
