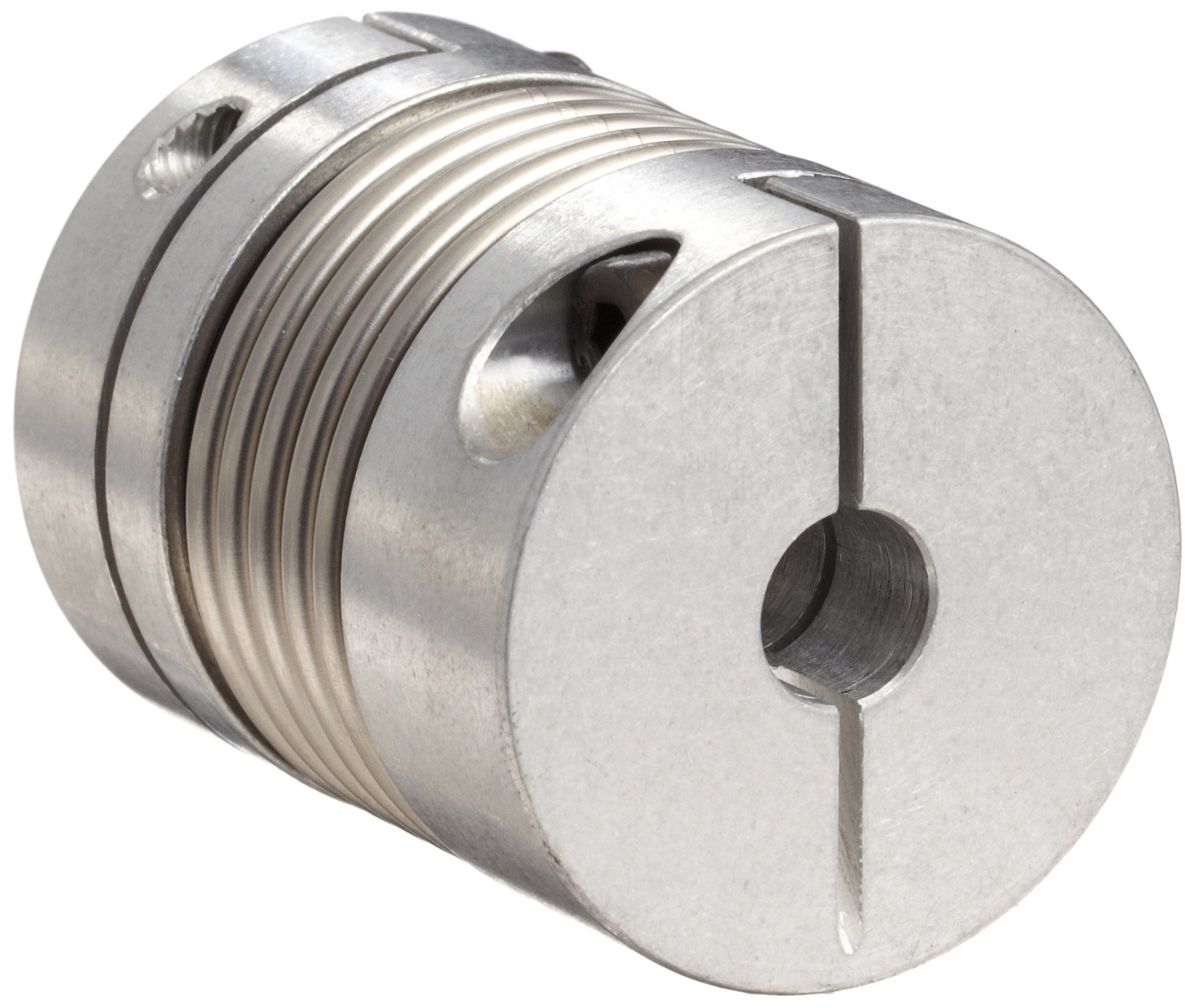

Lovejoy Bellows Coupling, BWC Series Clamp Style, Aluminum Hubs with Stainless Steel Bellows, Complete Coupling

Be the first to review this item

Product Specifications
Material Type
Stainless Steel
UNSPSC Code
31163018
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 24? Order in-stock items in the next 15 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 23 Next 3 »
Mfr Part # Coupling Size Bore A Diameter Bore B Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 23 Next 3 »
68514476940 BWC-21 0.188" 0.188" 0.591" 0.827" 3.54 in-lbs B004QOAYXY 1 $53.07 Buy Options
68514476941 BWC-23 0.188" 0.188" 0.591" 0.906" 7.97 in-lbs B004QWZHZG 1 $56.54 Buy Options
68514476942 BWC-26 0.188" 0.188" 0.748" 1.024" 13.28 in-lbs B004QWZHZQ 1 $59.13 Buy Options
68514476943 BWC-26 0.188" 0.25" 0.748" 1.024" 13.28 in-lbs B003U6HZ1I 3 $59.13 Buy Options
68514476944 BWC-26 0.25" 0.25" 0.748" 1.024" 13.28 in-lbs B003U6HZ0O 2 $62.21 Buy Options
68514476947 BWC-32 0.25" 0.375" 0.945" 1.26" 17.7 in-lbs B004QWZHTW 1 $61.73 Buy Options
68514476949 BWC-32 0.375" 0.5" 0.945" 1.26" 17.7 in-lbs B004QWZI4Q 1 $61.73 Buy Options
68514476950 BWC-41 0.5" 0.5" 1.26" 1.614" 39.83 in-lbs B003U6HZ2M 1 $74.86 Buy Options
68514476951 BWC-41 0.5" 0.625" 1.26" 1.614" 39.83 in-lbs B003U6HZ36 1 $74.86 Buy Options
68514476952 BWC-41 0.625" 0.625" 1.26" 1.614" 39.83 in-lbs B003U6HZ7C 1 $75.63 Buy Options
68514476956 BWC-41 0.375" 0.5" 1.26" 1.614" 39.83 in-lbs B003U6HZ54 1 $74.86 Buy Options
68514476957 BWC-41 0.313" 0.313" 1.26" 1.614" 39.83 in-lbs B003U6HZ6I 5 $74.82 Buy Options
68514476958 BWC-41 0.25" 0.25" 1.26" 1.614" 39.83 in-lbs B003U6HZ3Q 1 $74.86 Buy Options
68514476989 BWC-21 0.25" 0.25" 0.591" 0.827" 3.54 in-lbs B004QWZHRO 1 $53.09 Buy Options
68514476990 BWC-21 3 mm 3 mm 0.591" 0.827" 3.54 in-lbs B004QWZIL4 1 $53.07 Buy Options
68514476991 BWC-21 6 mm 6 mm 0.591" 0.827" 3.54 in-lbs B004QWZINM 1 $53.07 Buy Options
68514476993 BWC-23 4 mm 4 mm 0.591" 0.906" 7.97 in-lbs B004QWZILY 1 $56.54 Buy Options
68514477000 BWC-41 8 mm 8 mm 1.26" 1.614" 39.83 in-lbs B004QWZIQE 6 $74.86 Buy Options
68514477000 BWC-41 0.25" 0.375" 1.26" 1.614" 39.83 in-lbs B003U6HZ4K 4 $55.08 Buy Options
68514477001 BWC-47 0.5" 0.5" 1.575" 1.85" 88.5 in-lbs B004QWZHK6 3 $90.78 Buy Options

Key Features

  • Motion control shaft coupling for joining two shafts in power transmission applications
  • Aluminum hubs for resistance to corrosion and lighter weight
  • Stainless steel bellow for resistance to corrosion
  • Key way and set screw for secure attachment to shaft
  • Maximum operating temperature of 212 degrees F

Product Description

This Lovejoy BWC-Series bellows coupling is a shaft coupling for joining two shafts in power transmission applications. It has a bellows design for up to .016" of axial misalignment and low reactionary loading on the bearings. It has aluminum hubs for resistance to corrosion and light weight and a stainless steel bellow for resistance to corrosion. It is a 1-piece coupling with clamping style hubs for easy installation and removal and a key way for secure attachment to the shafts. It has a maximum operating temperature of 212 degrees F and a maximum rotational speed of 15,000 revolutions per minute (rpm).

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
