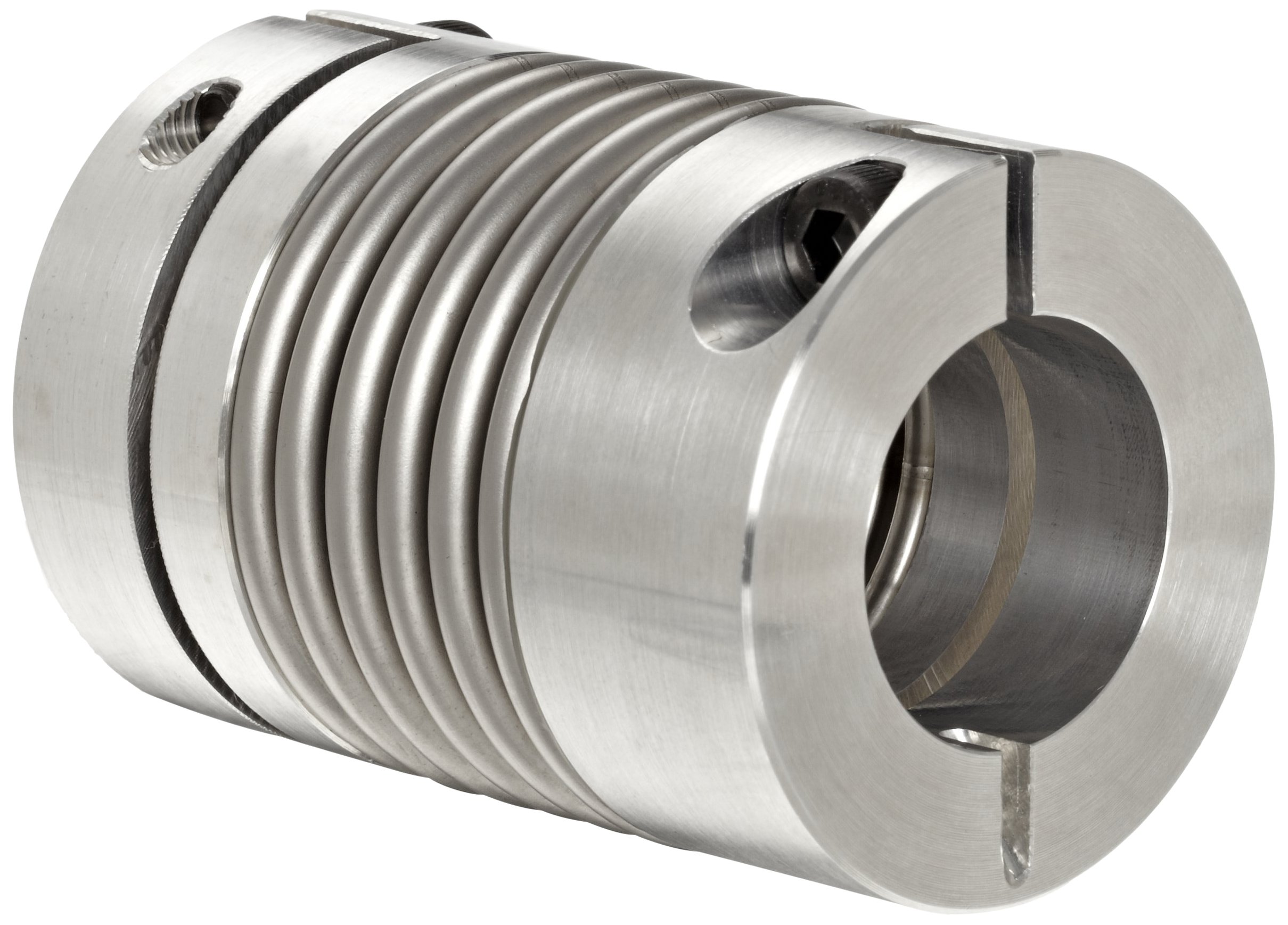

Lovejoy Bellows Coupling, BWLC Series Clamp Style, Aluminum Hubs with Stainless Steel Bellows, Complete Coupling

Be the first to review this item

Product Specifications
Material Type
Stainless Steel
UNSPSC Code
31163018
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 3 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 38 Next 18 »
Mfr Part # Coupling Size Bore A Diameter Bore B Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 38 Next 18 »
68514476959 BWLC-63 0.375" 0.375" 1.772" 2.48" 159 in-lbs B004QWZI6Y yes $127.40 Buy Options
68514476960 BWLC-63 0.5" 0.5" 1.772" 2.48" 159 in-lbs B004QWZHKG yes $149.00 Buy Options
68514476961 BWLC-63 0.5" 0.625" 1.772" 2.48" 159 in-lbs B004QWZHO2 yes $127.40 Buy Options
68514476962 BWLC-63 0.625" 0.625" 1.772" 2.48" 159 in-lbs B004QWZIE6 yes $127.40 Buy Options
68514476963 BWLC-65 0.5" 0.5" 2.205" 2.559" 266 in-lbs B004QWZHKQ yes $137.40 Buy Options
68514476965 BWLC-65 0.625" 0.625" 2.205" 2.559" 266 in-lbs B004QWZIEG yes $137.40 Buy Options
68514476966 BWLC-65 0.625" 0.75" 2.205" 2.559" 266 in-lbs B004QWZIC8 yes $137.40 Buy Options
68514476967 BWLC-65 0.75" 0.75" 2.205" 2.559" 266 in-lbs B004QWZI28 yes $137.38 Buy Options
68514476968 BWLC-78 0.75" 0.75" 2.598" 3.071" 531 in-lbs B004QWZI2I yes $195.15 Buy Options
68514476969 BWLC-78 0.75" 1" 2.598" 3.071" 531 in-lbs B004QWZI0U yes $56.42 Buy Options
68514476970 BWLC-78 1" 1" 2.598" 3.071" 531 in-lbs B004QWZHIS Temporarily out of stock. Order now and we'll deliver when available. $209.56 Buy Options
68514476971 BWLC-78 1" 1.25" 2.598" 3.071" 531 in-lbs B004QOAYTI yes $195.15 Buy Options
68514476972 BWLC-78 1.25" 1.25" 2.598" 3.071" 531 in-lbs B004QWZHVU yes $214.10 Buy Options
68514476973 BWLC-78 1.375" 1.375" 2.598" 3.071" 531 in-lbs B004QWZHWO yes $194.87 Buy Options
68514476974 BWLC-91 0.75" 0.75" 3.228" 3.583" 1328 in-lbs B004QWZI2S Temporarily out of stock. Order now and we'll deliver when available. $284.90 Buy Options
68514476975 BWLC-91 0.75" 1" 3.228" 3.583" 1328 in-lbs B004QWZI14 Temporarily out of stock. Order now and we'll deliver when available. $284.90 Buy Options
68514476976 BWLC-91 1" 1" 3.228" 3.583" 1328 in-lbs B004QWZHJ2 Temporarily out of stock. Order now and we'll deliver when available. $284.79 Buy Options
68514476977 BWLC-91 1.25" 1.25" 3.228" 3.583" 1328 in-lbs B004QWZHW4 Temporarily out of stock. Order now and we'll deliver when available. $284.90 Buy Options
68514476978 BWLC-91 1.375" 1.375" 3.228" 3.583" 1328 in-lbs B004QWZHWY Temporarily out of stock. Order now and we'll deliver when available. $284.90 Buy Options
68514476979 BWLC-91 1.375" 1.5" 3.228" 3.583" 1328 in-lbs B004QWZHWE yes $265.12 Buy Options

Key Features

  • Bellows coupling for use in instrumentation, medical equipment, sensitive high precision drives, and other high precision positioning applications requiring high torsional stiffness and torsional integrity
  • Aluminum hubs with clear anodized finish for corrosion resistance
  • Stainless steel bellows for corrosion resistance
  • Clamp-style mount for secure attachment to shaft
  • Rotational speeds up to 12,700 rpm

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
