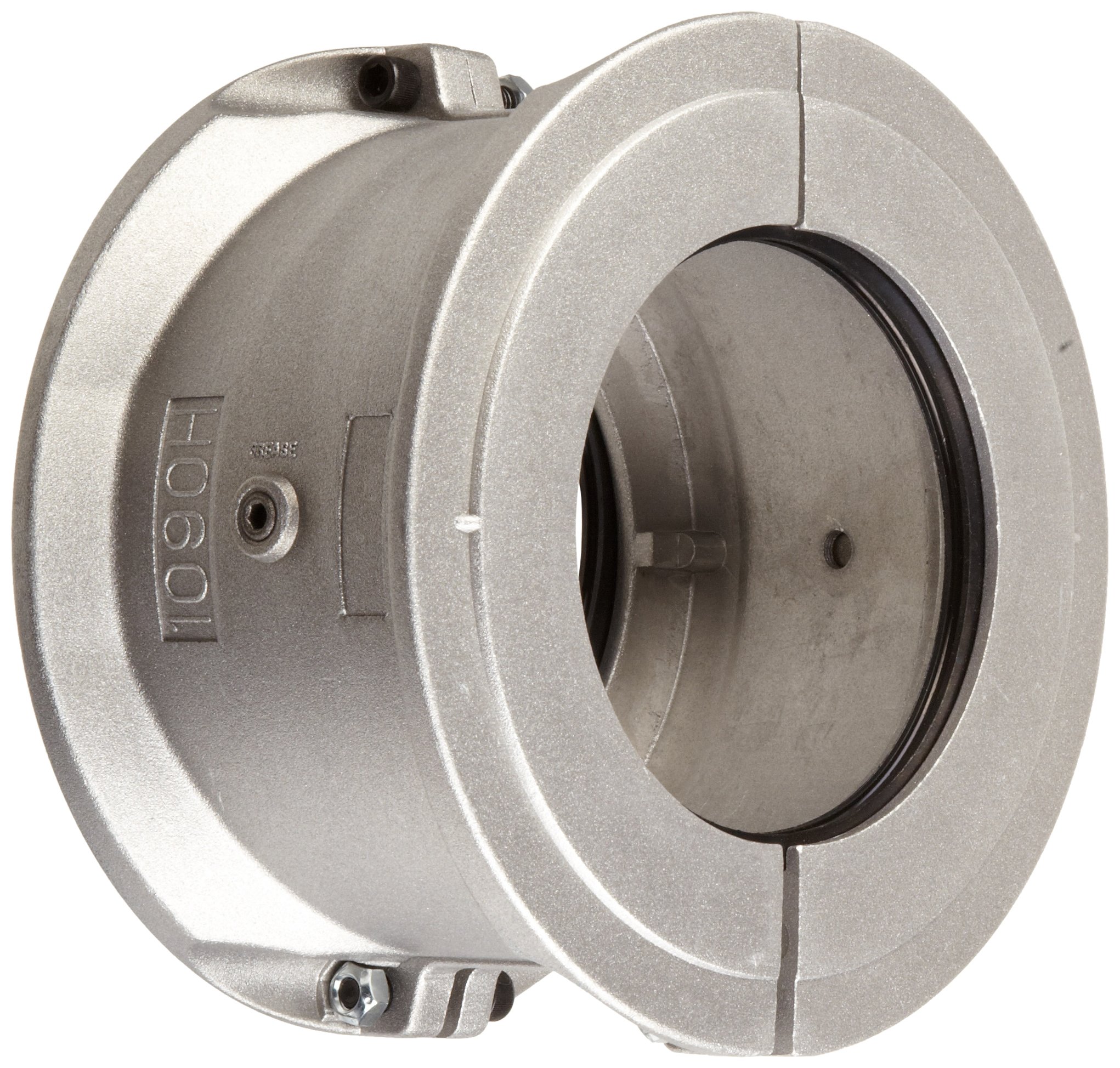

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

Lovejoy 05295 Size 1070 Grid Coupling 2-Piece Cover Set, Horizontal, Aluminum, includes Covers, Seals, Gaskets, Grease Pack and Metric Hardware, 6.37" OD, 6.12" Overall Coupling Length, 8800 in-lbs Nominal Torque, 4125 rpm Max Rotational Speed

Be the first to review this item

ASIN B004QX05K2

Product Specifications
Mfr Part #
69790405295
UPC
697904052954
Length
6.12  inches
Coupling Size
1070
EAN
0697904052954
Number of Items
1
Outside Diameter
6.37  inches
Torque
8800  Inch Pounds
Specification for this product family (See all  products)
Material Type
Aluminum
Brand Name
Lovejoy
System of Measurement
Inch
Price:
$46.92
Quantity:

Usually ships in 1 to 3 months

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For use with Lovejoy 1000 series grid coupling assembly (not included)
  • Horizontally split cover for applications with limited space requirements
  • Die-cast aluminum is lightweight and resists corrosion and tarnishing
  • Supports constant angular misalignment of up to 0.25 degrees
  • Imperial unit measurements for industry consistency

Product Description

This Lovejoy 1000 series two-piece cover set replaces horizontal split covers on existing Lovejoy 1000 series grid couplings and is made of lightweight, die-cast aluminum to resist corrosion and tarnishing. Grid couplings, a type of flexible coupling, use a flexible grid that fits into slotted hubs to transmit torque and offset rotational misalignment. The serpentine shape of the grid absorbs impact energy, reduces vibration, and transmits torque from one hub to the other through the grid. This is a horizontal split cover, suitable for applications with limited space requirements, and it uses imperial unit measurements for industry consistency and interchangeability. It has an operating temperature range of -40 to +250 degrees F (-40 to +121 degrees C). Together with the other component parts of the coupling assembly, the grid supports constant angular misalignments up to 0.25 degrees. It meets International Organization for Standardization (ISO) 9001 for quality assurance. Lovejoy 1000 series grid couplings are suitable for use in various industrial power transmission applications such as pumps, mixers, crushers, fans, compressors, conveyors, pulverizers, and other equipment found in the steel, pulp, paper, mining, aggregate, and construction industries.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
