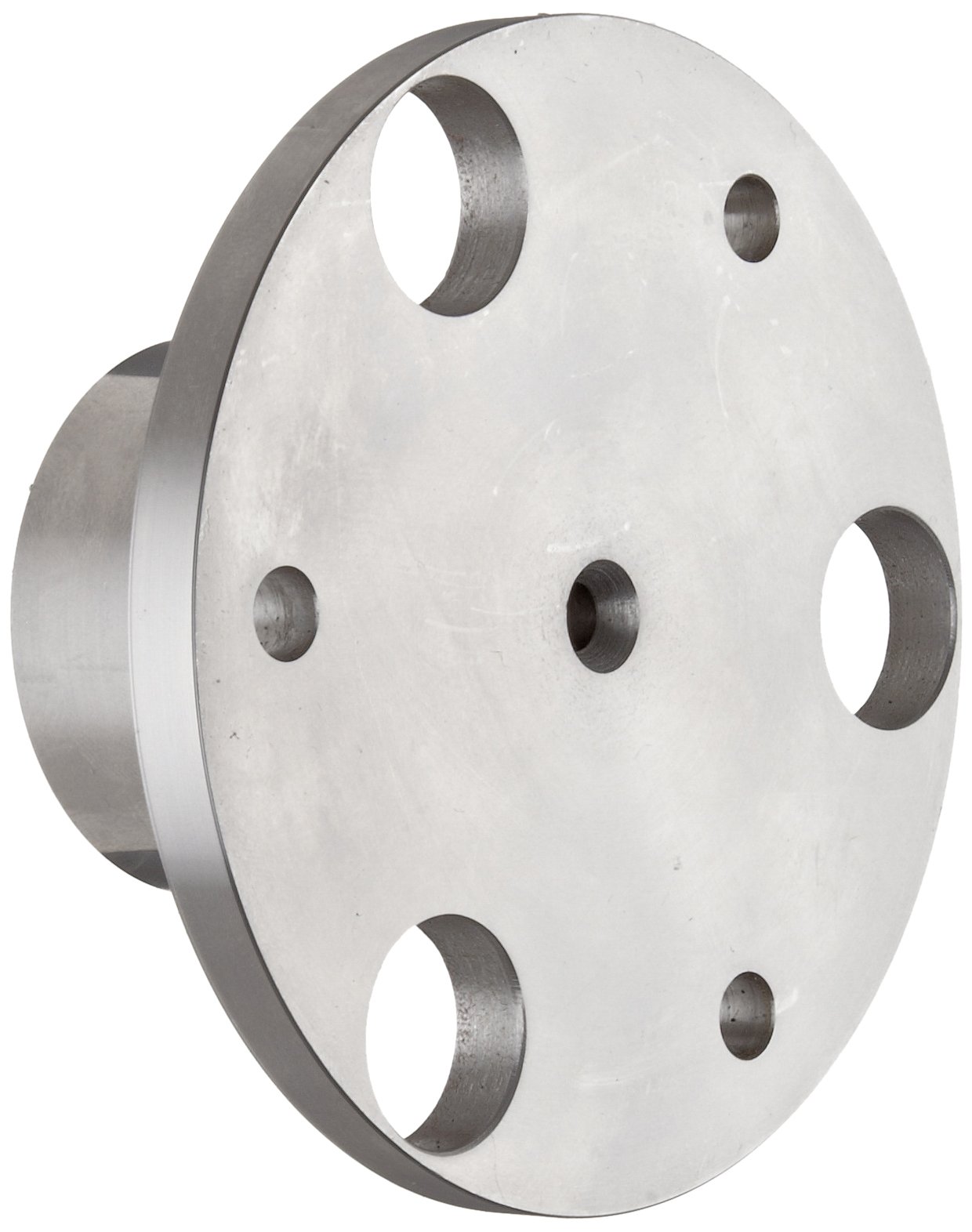

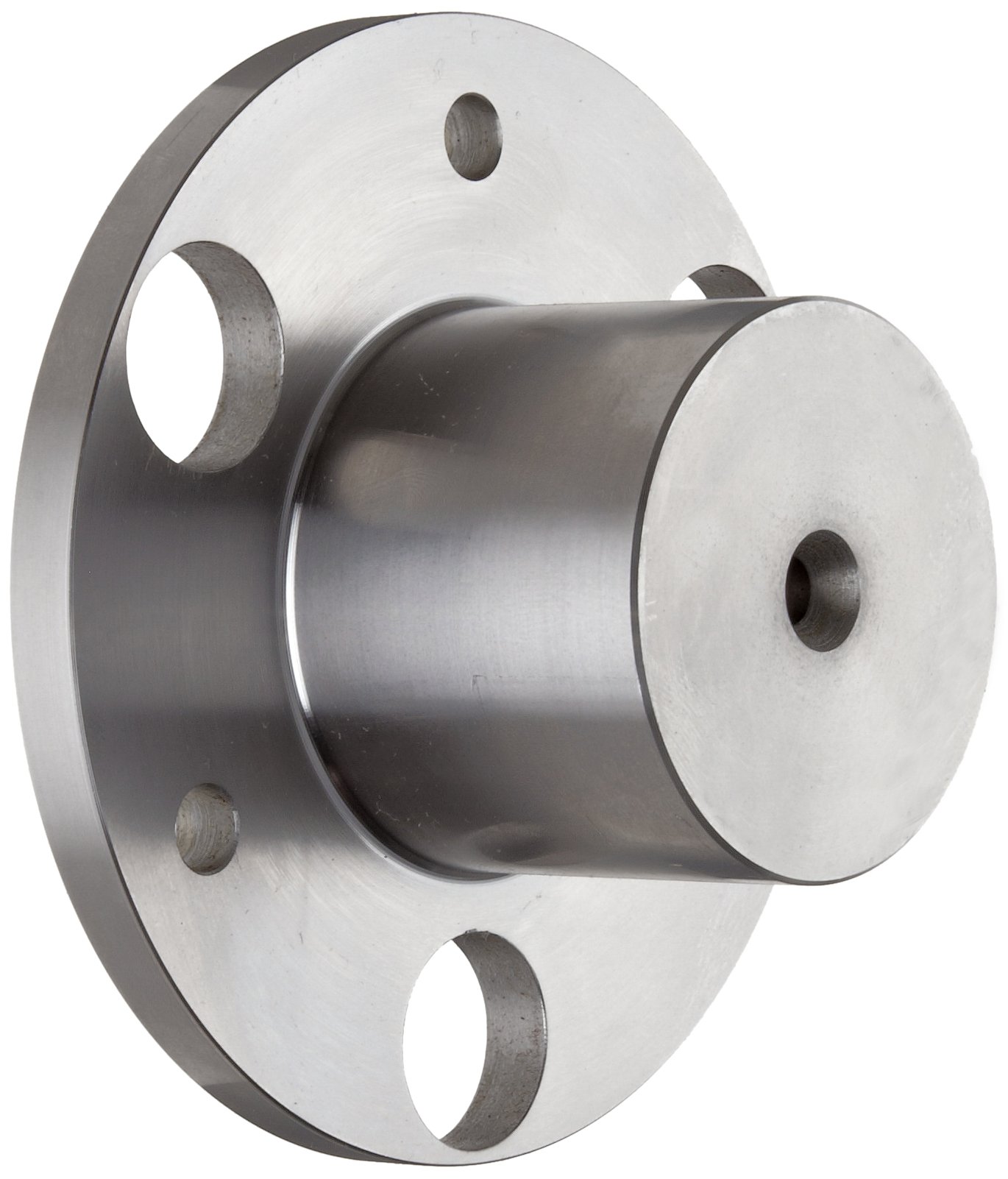

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lovejoy Disc Coupling, SXC Type, Close Coupled Disc Coupling Hub

Be the first to review this item

Product Specifications
UNSPSC Code
31163000
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-12 of 12
Mfr Part # Coupling Size Bore A Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-12 of 12
69790413836 SXC110-6 0.75" 4.33" 4.12" 5100 in-lbs B004QWZTXG Usually ships in 3 to 6 weeks $120.32 Buy Options
69790413837 SXC110-6 30 mm 4.33" 4.12" 5100 in-lbs B004QWZU6C yes $113.63 Buy Options
69790413864 SXC132-6 1.125" 5.2" 4.87" 9700 in-lbs B004QWZTNG Usually ships in 3 to 6 weeks $163.79 Buy Options
69790414388 SXC132-6 42 mm 5.2" 4.87" 9700 in-lbs B004QWZTRW Usually ships in 3 to 6 weeks $146.90 Buy Options
69790492022 SXC110-6   4.33" 4.12" 5100 in-lbs B004QWZUFI yes $100.23 Buy Options
69790492024 SXC132-6   5.2" 4.87" 9700 in-lbs B004QWZUG2 Usually ships in 3 to 6 weeks $146.90 Buy Options
69790492025 SXC158-6   6.22" 5.66" 17700 in-lbs B004QWZUGM Usually ships in 3 to 6 weeks $170.13 Buy Options
69790492026 SXC185-6   7.28" 6.44" 29200 in-lbs B004QWZUH6 Usually ships in 3 to 6 weeks $217.60 Buy Options
69790492027 SXC202-6   7.95" 7.35" 40700 in-lbs B004QWZUHQ Usually ships in 3 to 5 weeks $316.08 Buy Options
69790492028 SXC228-6   8.98" 8.14" 62000 in-lbs B004QWZUIA Usually ships in 3 to 6 weeks $336.84 Buy Options
69790496606 SXC110-6 0.626" 4.33" 4.12" 5100 in-lbs B004QWZTVS Usually ships in 3 to 6 weeks $153.24 Buy Options
69790499920 SXC185-6 2.3765" 7.28" 6.44" 29200 in-lbs B004QOALD2 Usually ships in 3 to 6 weeks $289.81 Buy Options

Key Features

  • Hub for use with SXC-type disc coupler assembly (not included)
  • Torsionally rigid without backlash
  • Accommodates angular, axial, and parallel misalignment
  • Rotational speeds up to 9,100 rpm without special balancing
  • Interference fit and key way for secure attachment to shaft

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
