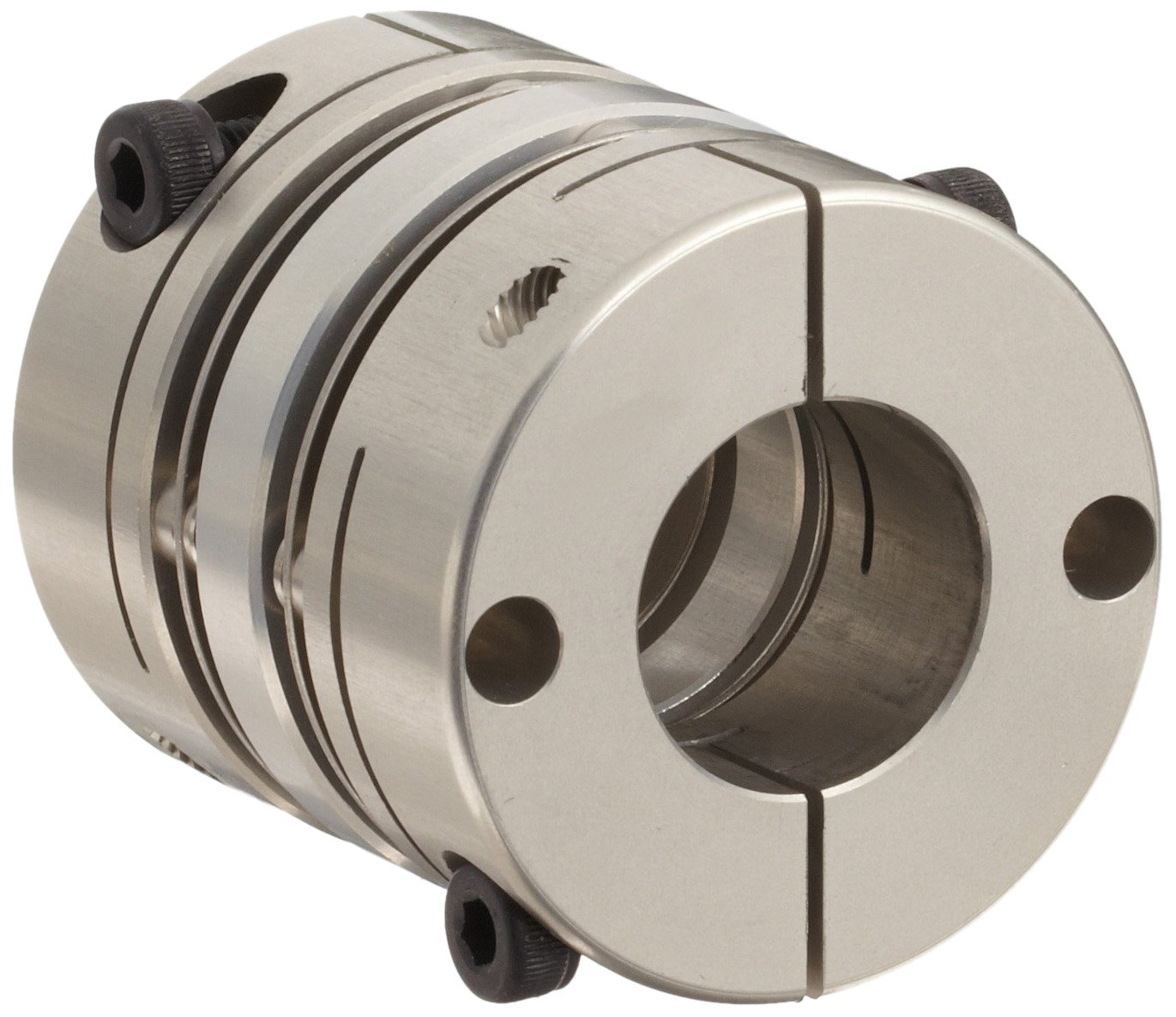

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lovejoy Mini Disc Coupling, MD Type, Clamp Style, Aluminum Hubs and Stainless Steel Discs, Complete Coupling

Be the first to review this item

Product Specifications
Material Type
Aluminum
UNSPSC Code
31163000
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 24 Next 4 »
Mfr Part # Coupling Size Bore A Diameter Bore B Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 24 Next 4 »
68514477212 MD-19C 0.188" 0.25" 0.748" 1.063" 6 in-lbs B004QWZHXI yes $86.77 Buy Options
68514477213 MD-19C 0.25" 0.25" 0.748" 1.063" 6 in-lbs B004QOAYVQ yes $86.77 Buy Options
68514477214 MD-25C 0.188" 0.188" 0.984" 1.22" 9 in-lbs B004QWZI0A yes $91.00 Buy Options
68514477217 MD-25C 0.313" 0.313" 0.984" 1.22" 9 in-lbs B004QWZIAK yes $91.00 Buy Options
68514477219 MD-32C 0.313" 0.313" 1.26" 1.575" 22 in-lbs B004QWZIB4 yes $95.18 Buy Options
68514477221 MD-32C 0.375" 0.5" 1.26" 1.575" 22 in-lbs B004QWZI50 yes $95.18 Buy Options
68514477222 MD-32C 0.5" 0.5" 1.26" 1.575" 22 in-lbs B004QWZHL0 yes $95.18 Buy Options
68514477225 MD-40C 0.5" 0.625" 1.575" 1.732" 31 in-lbs B004QWZHOM yes $99.36 Buy Options
68514477227 MD-40C 0.625" 0.75" 1.575" 1.732" 31 in-lbs B004QWZICI yes $99.36 Buy Options
68514477228 MD-40C 0.75" 0.75" 1.575" 1.732" 31 in-lbs B004QWZI32 yes $99.36 Buy Options
68514477229 MD-50C 0.375" 0.375" 1.969" 2.244" 80 in-lbs B004QWZI7I yes $119.14 Buy Options
68514477230 MD-50C 0.375" 0.5" 1.969" 2.244" 80 in-lbs B004QWZI5A Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477231 MD-50C 0.5" 0.5" 1.969" 2.244" 80 in-lbs B004QWZHLK Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477232 MD-50C 0.5" 0.625" 1.969" 2.244" 80 in-lbs B004QWZHP6 Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477233 MD-50C 0.625" 0.625" 1.969" 2.244" 80 in-lbs B004QWZIFA Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477234 MD-50C 0.625" 0.75" 1.969" 2.244" 80 in-lbs B004QWZICS Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477235 MD-50C 0.75" 0.75" 1.969" 2.244" 80 in-lbs B004QWZI3C Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477236 MD-50C 0.75" 0.875" 1.969" 2.244" 80 in-lbs B004QWZI4G Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477237 MD-50C 0.875" 0.875" 1.969" 2.244" 80 in-lbs B004QOAZ4W Temporarily out of stock. Order now and we'll deliver when available. $115.75 Buy Options
68514477240 MD-63C 0.625" 0.625" 2.48" 2.402" 111 in-lbs B004QWZIFK Temporarily out of stock. Order now and we'll deliver when available. $155.60 Buy Options

Key Features

  • Mini disc (MD) coupling assembly for use in applications requiring high torsional stiffness and torsional integrity
  • Aluminum hubs for light weight, stainless steel discs for strength
  • Accommodates angular, axial, and parallel misalignment
  • Rotational speeds up to 10,000 rpm
  • Clamp-style mount for secure attachment to shaft

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
