Lovejoy/Sier-Bath Gear Coupling, C Type, Continuous Sleeve Gear Coupling Accessory Kit

Be the first to review this item

Product Specifications
Flange Type
C
Material Type
Carbon Steel
UNSPSC Code
31163000
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 23 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Coupling Size Outside Diameter Maximum Rotational Speed ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-10 of 10
C1.5 3.75" 15000 rpm B004QOAO7K yes $23.00 Buy Options
C2 4.75" 12600 rpm B00270QUG4 yes $28.60 Buy Options
C2.5 5.50" 11250 rpm B00270QUIM Usually ships in 3 to 6 weeks $37.61 Buy Options
C3 6.63" 9000 rpm B004QX00KM yes $96.92 Buy Options
C3.5 7.50" 8400 rpm B004QX00MU yes $115.77 Buy Options
C4 8.75" 7200 rpm B004QOAOA2 Usually ships in 3 to 6 weeks $137.21 Buy Options
C4.5 9.50" 6600 rpm B004QX00PC Usually ships in 3 to 6 weeks $166.35 Buy Options
C5 10.75" 6300 rpm B004QOAOAW Usually ships in 3 to 6 weeks $232.48 Buy Options
C6 12.25" 6000 rpm B004QX00RK Usually ships in 3 to 6 weeks $290.76 Buy Options
C7/8 3.31" 18000 rpm B004QX00EI yes $21.57 Buy Options

Key Features

  • For use with Sier-Bath C type continuous sleeve gear coupling assembly (not included)
  • Two snap rings for secure retention of O-ring seal
  • Hardened spring steel ring for strength and durability
  • Two Buna-n O-ring seals between sleeve and hubs for retention of lubricant
  • Steel reinforced seals for durability

Product Description

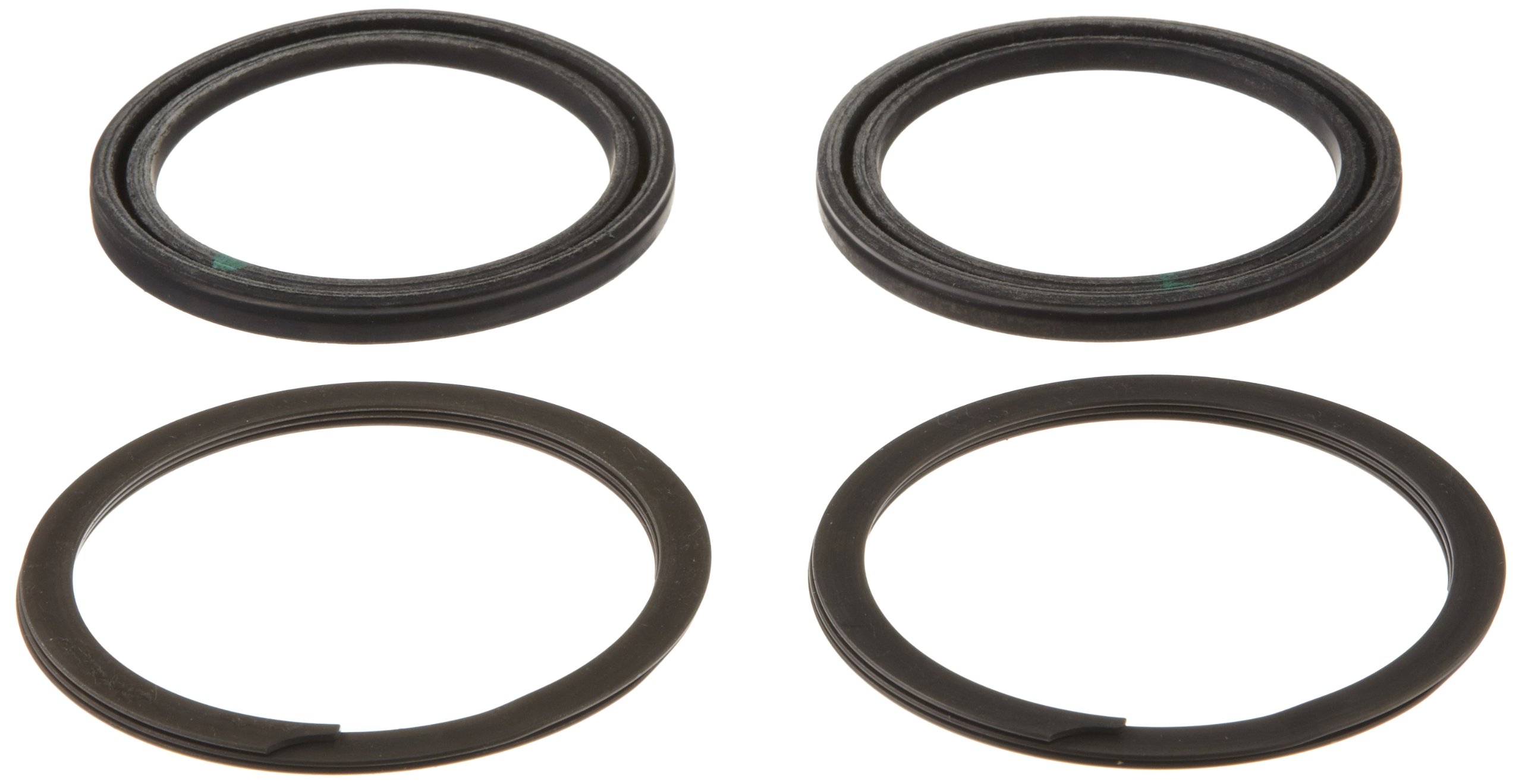

This Lovejoy C Type accessory kit consists of the two O-ring seals and snap rings required for a specific Sier-Bath continuous sleeve gear coupling (not included), and is suitable for assembling that coupling. One of the Buna-n O-ring seals is located between the sleeve and each hub to retain the coupling lubricant. Steel reinforcement of the O-ring inner lip helps make the seal more durable, and the O-ring seal has an operating temperature range of -40 to 100 degrees C (-40 to 212 degrees F). Hardened spring steel snap rings at each end of the sleeve hold the seals and hubs in place and resist up to 100,000 pounds of end thrust. Gear couplings, a type of flexible coupling, use gear teeth on hubs and sleeves to transmit torque and offset rotational misalignment, and are suitable for use in applications involving extended distances between shaft ends, such as metal rolling mills and paper mills.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
