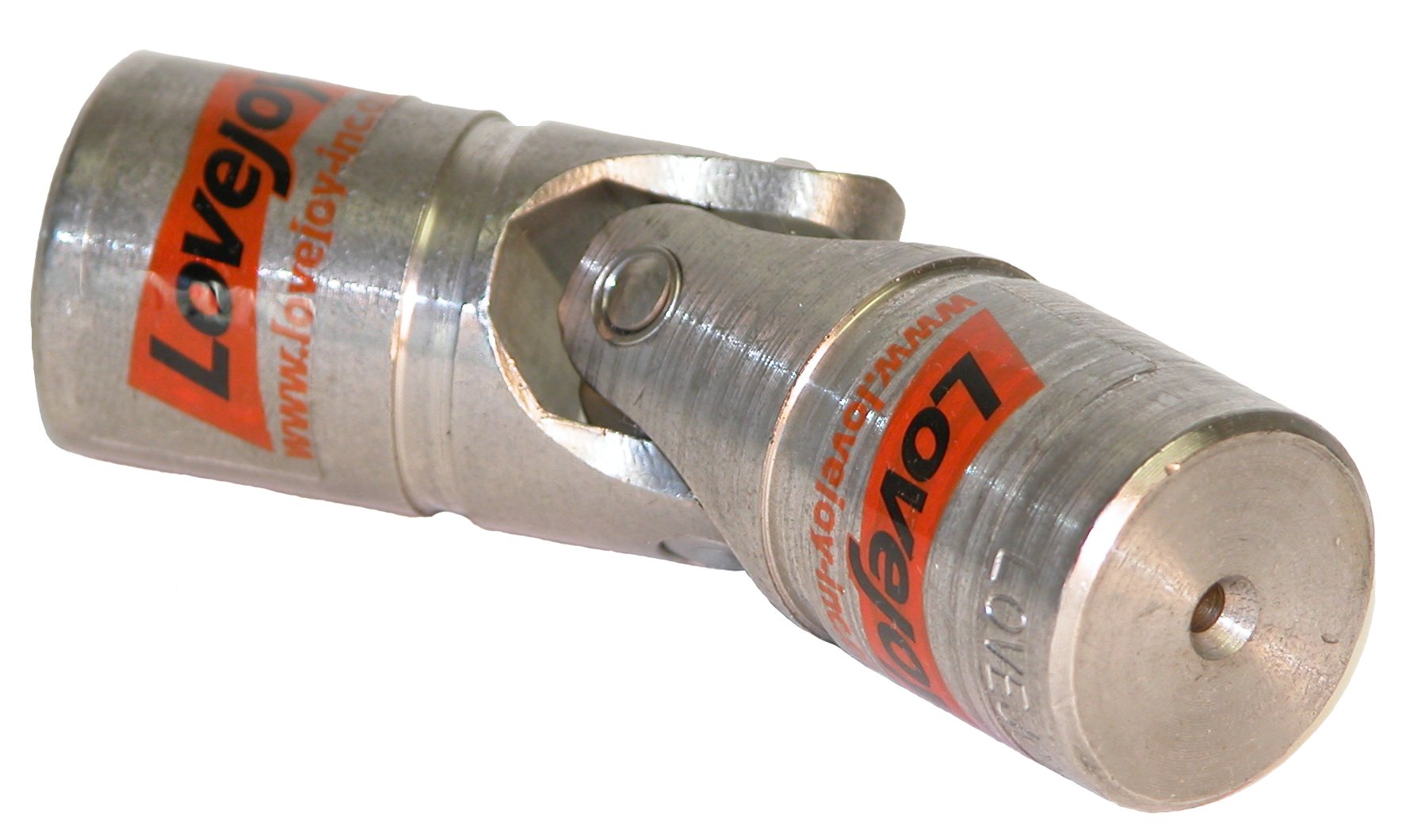

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Lovejoy Size D4 Universal Joint, Stainless Steel 303, Solid Bore, 0.75" Outer Diameter, 2.68" Overall Length

Be the first to review this item

ASIN B003TW5N30

Product Specifications
Mfr Part #
68514431057
UPC
685144310576
Material Type
Stainless Steel
Angular Misalignment
25  Degrees
Body Outside Diameter
0.75  inches
EAN
0685144310576
Grade
303
Length
2.68  inches
Max Rotational Speed
1750  RPM
Maximum Torque
512  Inch Pounds
Number of Items
1
Outside Diameter
0.75  inches
Trade Size
D4 Stainless
Specification for this product family (See all  products)
UNSPSC Code
25173810
Brand Name
Lovejoy

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 2 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single pin and block universal joint for applications with up to 25 degrees angular misalignment and speeds up to 1,750 rpm
  • Compensates for angular misalignments and shaft separation
  • 303 stainless steel for strength and resistance to corrosion
  • Solid bore for specific machining
  • Retaining groove for attaching boot

Package Details

Shipping Weight: 0.3 pounds
Package Size: 4 x 3 x 0.4 inches

Product Description

This Lovejoy D-Type universal joint is a single pin and block u-joint for connecting two rotating shafts with angles up to 25 degrees and speeds up to 1,750 rpm. It compensates for angular misalignment and shaft separation and has a single joint configuration for high torsional stiffness and torque capacity. The hubs, center block, and pins are made of 303 stainless steel for strength and resistance to corrosion. It has solid bore hubs for specific machining and a groove on each end for attaching a boot with a retaining ring. This universal joint provides a uniform speed ratio between driving and driven shafts, and is suitable for applications requiring moderate torque transmission, such as farm implements, material handling equipment, and drive shafts.

Universal joints (also called U-joints, universal couplings, Cardan joints, Hooke's joints, or Hardy-Spicer joints) are used to transmit motion and rotational power, or torque, between two shafts that are offset at an angle. Most universal joints consist of two yokes and a middle assembly; the hub end of each yoke attaches to a shaft while the yoke ears attach to and pivot around the middle assembly to accommodate shaft misalignment. The type of middle assembly determines its usage—pin and block joints are suitable for transmitting high torque, needle bearing joints are used to handle high rotational speeds, and ball and socket joints are used in applications requiring low backlash (play between moving parts). The body of the universal joint may include a single joint to accommodate only angular misalignments between shafts, or two joints to accommodate both angular and parallel misalignments. Available in a variety of materials and configurations, universal joints are used in applications including motor vehicles, conveyors, medical and optical devices, forestry and mining equipment, robotics and space exploration, and aeronautics, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
