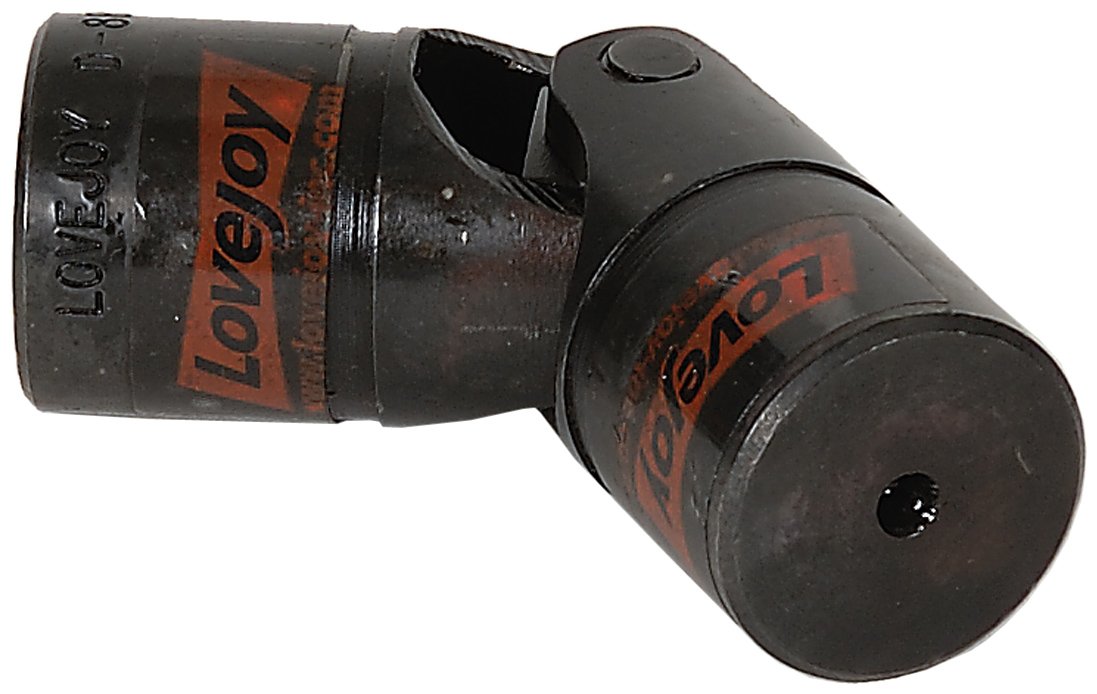

Lovejoy Size D10 Universal Joint, Steel, Solid Bore, 1.50" Outer Diameter, 4.25" Overall Length

Be the first to review this item

ASIN B003TW5N12

Product Specifications
Mfr Part #
68514415919
UPC
685144159199
Material Type
Steel
Angular Misalignment
25  Degrees
Body Outside Diameter
1.50  inches
EAN
0685144159199
Grade
1144
Length
4.25  inches
Max Rotational Speed
1750  RPM
Maximum Torque
7920  Inch Pounds
Number of Items
1
Outside Diameter
1.50  inches
Trade Size
D10
Specification for this product family (See all  products)
UNSPSC Code
25173810
Brand Name
Lovejoy

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 18 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single pin and block universal joint for applications with up to 25 degrees angular misalignment and speeds up to 1,750 RPM
  • Compensates for angular misalignments and shaft separation
  • Steel for strength and machinability
  • Solid hubs with centering holes aid in custom machining
  • Operating temperatures range from -30 to 212 degrees F

Package Details

Shipping Weight: 1.75 pounds
Package Size: 4.3 x 1.7 x 1.6 inches

Product Description

This Lovejoy D Type steel single pin-and-block universal joint with solid hubs is designed to connect two rotating shafts at angles up to 25 degrees. This universal joint compensates for angular misalignments and has a single joint configuration for high torsional stiffness and torque capacity. The hubs, center block, and pins are made of steel for strength and durability, and the solid hubs have centering holes for custom machining. Operating temperatures range from -30 to 212 degrees F. For optimal wear and extended life, boots (sold separately) are recommended, and boot retaining grooves are standard on this design. This universal joint provides a uniform speed ratio between driving and driven shafts, and is suitable for applications requiring moderate torque transmission, such as compressors, fans, machine tools, printing presses, and textile machinery.

Universal joints (also called U-joints, universal couplings, Cardan joints, Hooke’s joints, or Hardy-Spicer joints) are used to transmit motion and rotational power, or torque, between two shafts that are offset at an angle. Most universal joints consist of two yokes and a middle assembly; the hub end of each yoke attaches to a shaft while the yoke ears attach to and pivot around the middle assembly to accommodate shaft misalignment. The type of middle assembly determines its usage—pin and block joints are suitable for transmitting high torque, needle bearing joints are used to handle high rotational speeds, and ball and socket joints are used in applications requiring low backlash (play between moving parts). The body of the universal joint may include a single joint to accommodate only angular misalignments between shafts, or two joints to accommodate both angular and parallel misalignments. Available in a variety of materials and configurations, universal joints are used in applications including motor vehicles, conveyors, medical and optical devices, forestry and mining equipment, robotics and space exploration, and aeronautics, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
