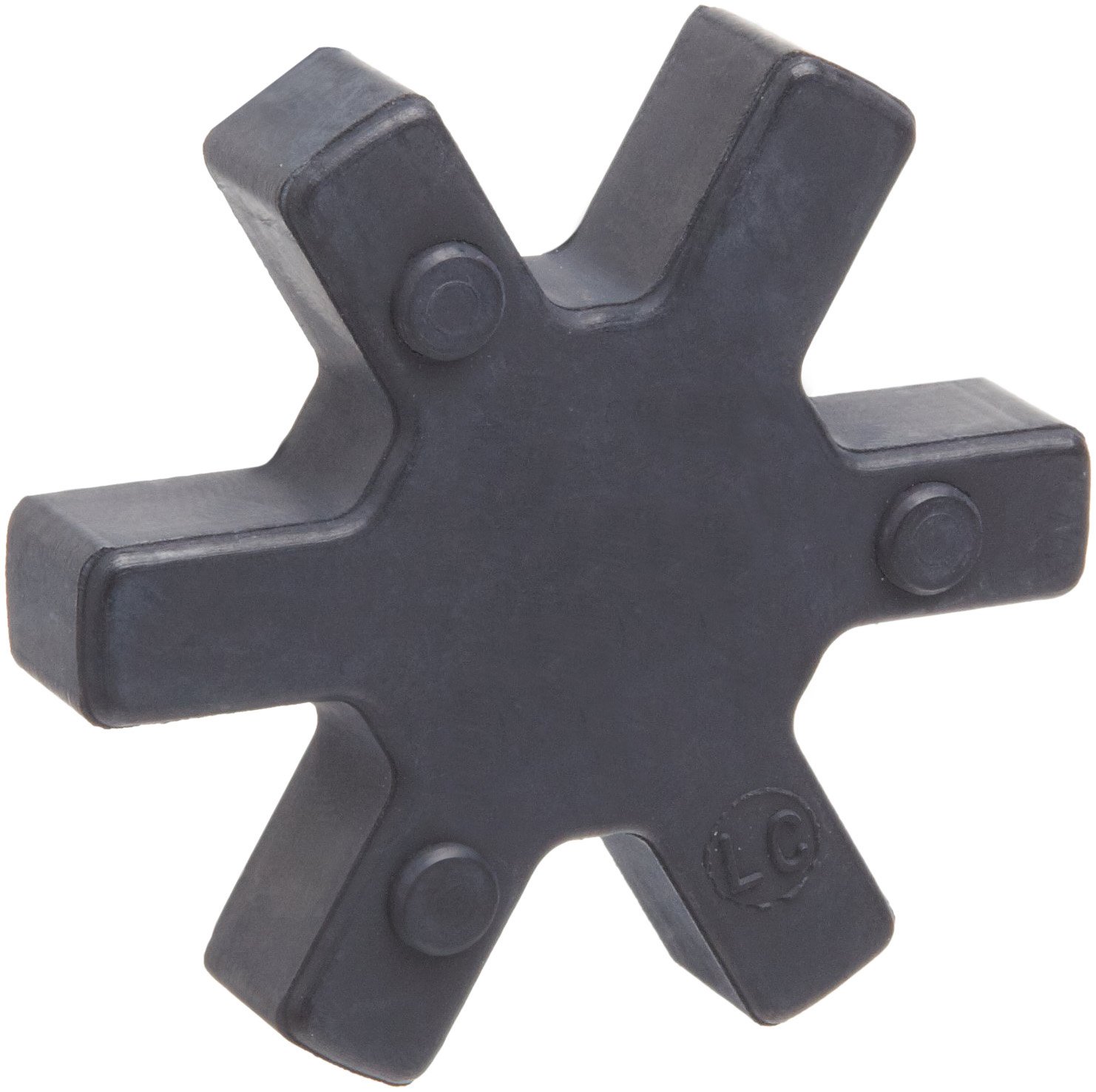

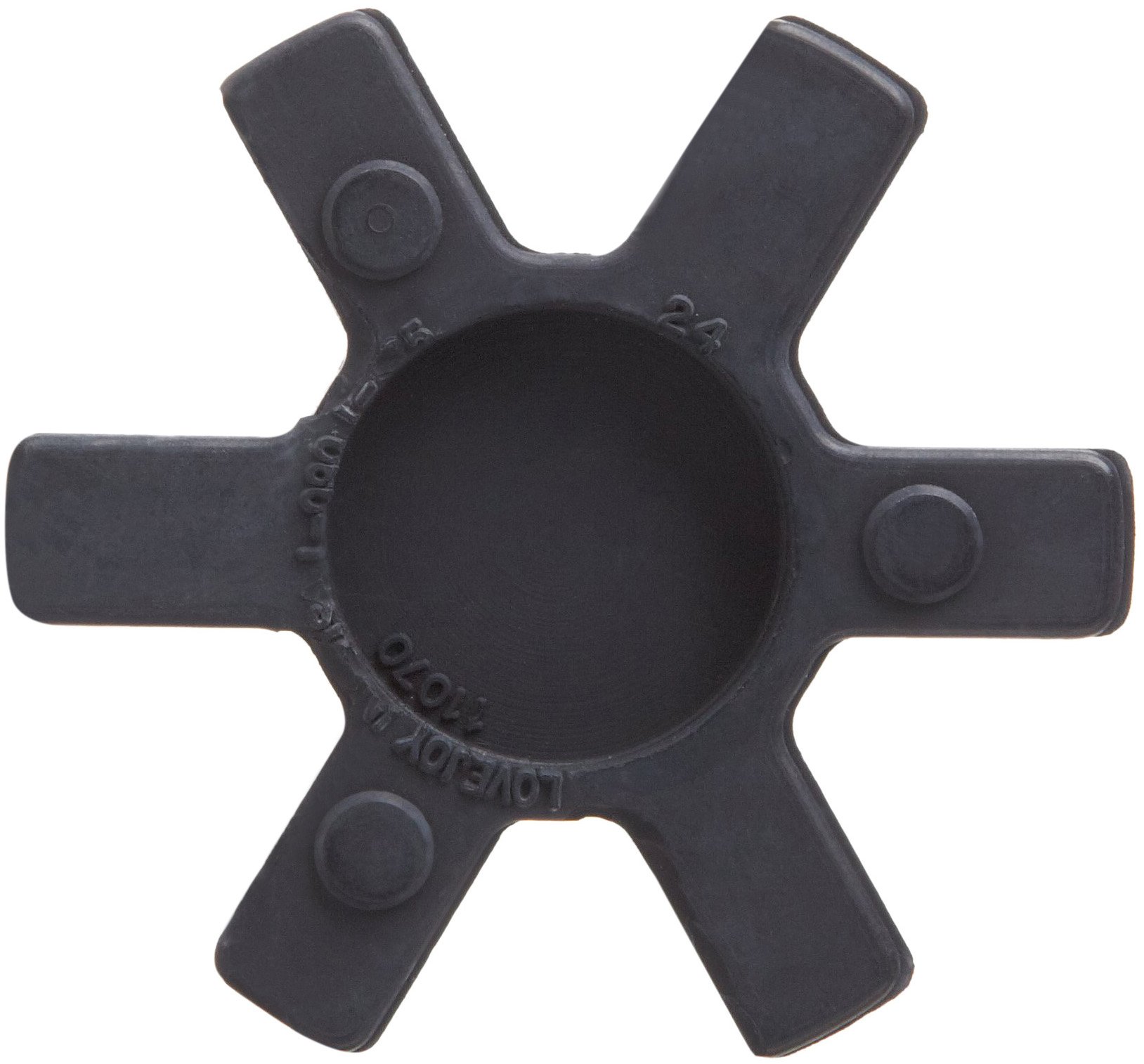

Lovejoy 11070 Size L-AL 090-095 Solid Type Jaw Coupling Elastomer Spider, SOX/NBR Rubber, 2.12" OD, 0.44" Elastomer Length, 194 in-lbs Nominal Torque

Be the first to review this item

ASIN B003HIWQN6

Product Specifications
Mfr Part #
68514411070
UPC
685144110701
Length
0.44  inches
Angular Misalignment
1  Degrees
Parallel Misalignment
0.015  inches
Max Rotational Speed
9000  RPM
Coupling Size
L090-095
EAN
0685144110701
Hub Style
L-AL
Number of Items
1
Outside Diameter
2.12  inches
Torque
194  Inch Pounds
Specification for this product family (See all  products)
Material Type
Rubber
UNSPSC Code
31163021
Brand Name
Lovejoy
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 6 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For use with Lovejoy jaw type flexible coupling assembly (sold separately)
  • Nitrile rubber for transferring and absorbing shock load
  • Solid center design to keep shafts of the driver and driven equipment separate by a standard gap
  • Operating temperatures range from -40 to 212 degrees F (-40 to 100 degrees C)

Package Details

Shipping Weight: 0.1 pounds
Package Size: 4.1 x 2 x 0.7 inches

Product Description

This Lovejoy solid type jaw coupling elastomer spider replaces solid center elastomers on Lovejoy jaw style flexible coupling assemblies and is made of Nitrile rubber for transferring and absorbing shock load. The solid center design keeps the shafts of the driver and driven equipment separate by a standard gap. It can operate in temperatures ranging from -40 to 212 degrees F (-40 to 100 degrees C). Lovejoy jaw style couplings are a type of flexible coupling suitable for use in various industrial power transmission applications such as compressors, blowers, pumps, conveyors, mixers, and gear boxes, among others.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
