Loos Cableware Tension Gauge, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
PT Series
Brand Name
Loos Cableware

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 13 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Measuring Range Graduation Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-3 of 3
800 pounds 1 pounds PT-1 B0000AXNQH Usually ships in 2 to 4 weeks $87.38 Buy Options
2000 pounds 1 pounds PT-2 B0000AXNQV 7 $94.06 Buy Options
4500 pounds 1 pounds PT-3 B0038YY3W6 3 $208.62 Buy Options

Key Features

  • Measures tension in cables and rods to check for proper setup in sail rigging and supporting cables for large tents, radio towers, and other structures
  • Analog gauge shows present tension in pounds (lb.)
  • Measurement accuracy of + or - 5 percent
  • Measures tension from approximately 5 to 25 percent of the cable's breaking strength
  • Can remain hooked on the wire during testing while tension is adjusted

Product Description

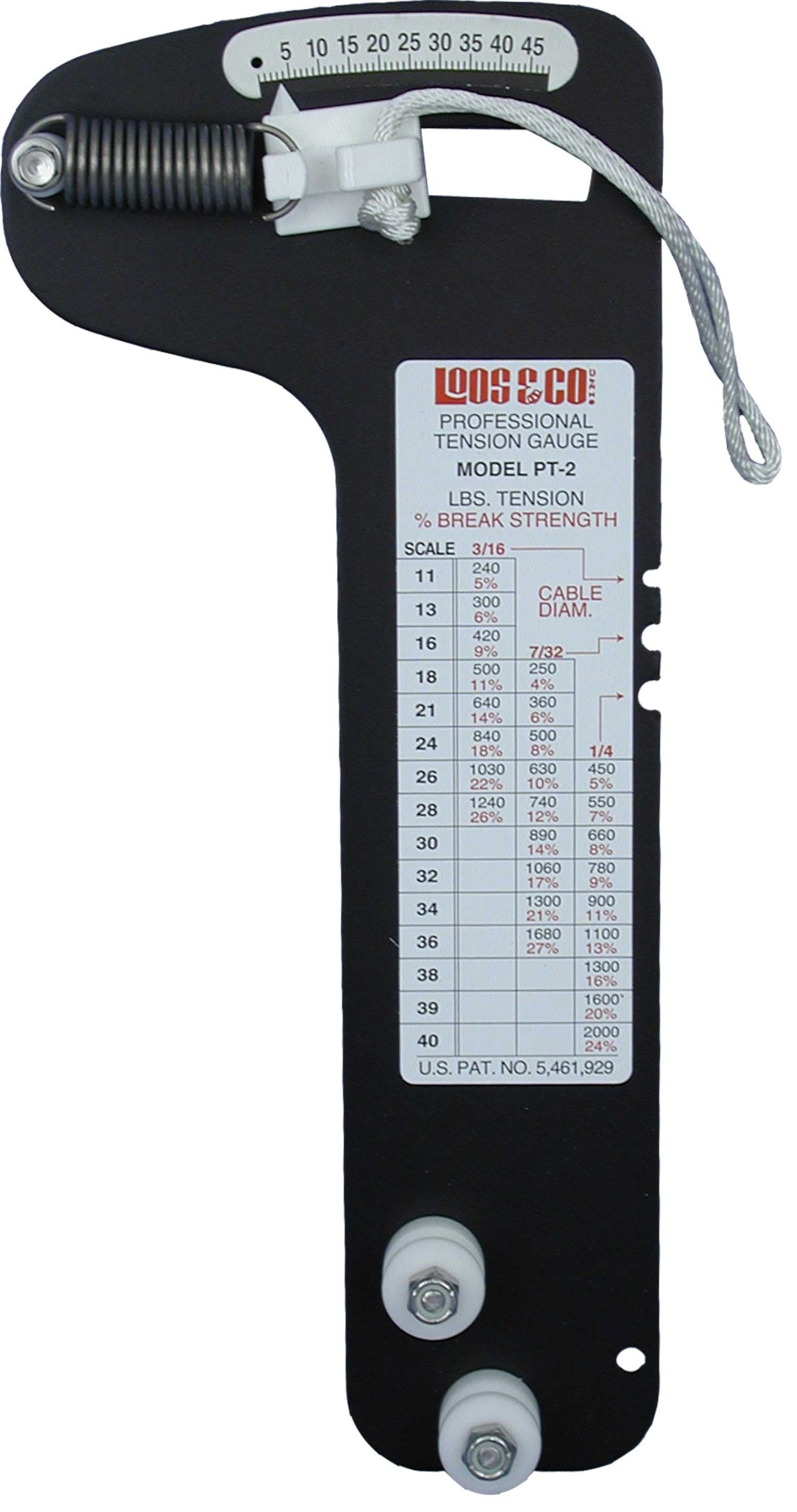

The Loos Cableware inch tension gauge measures the tension in cables and rods to check for proper setup in sail rigging and supporting cables for large tents, radio towers, and other structures. This analog gauge shows present tension in pounds (lb.) and has a measurement accuracy of + or - 5 percent. The gauge shows readings on a graduated scale, and a calibration table on the unit converts a scale reading to the corresponding present tension and percentage breaking strength of the rope, based on 302/304 1 x 19 stainless-steel wire rope. The gauge can remain hooked on the wire during testing while the tension is adjusted. The Loos Cableware metric tension gauge has an anodized aluminum body that resists corrosion and wear. A 1/4" hole on the gauge's body allows a lanyard or hook to be attached to the gauge for securing it to the cable.

Force gauges, also called push-pull gauges or tension gauges, measure the tensile (pull) or compression (push) force applied to an object. They are used to test the strength and functionality of a variety of machines, electronic components, cables, wires, and consumer products in scientific, medical, automotive, quality assurance, and manufacturing applications. A digital force gauge shows the amount of force in digits on the gauge's display. Response time varies among digital force gauges depending on the speed of the processor. An analog (or mechanical) force gauge shows measurements on a calibrated dial. Analog force gauges are not as precise as digital force gauges, but they provide instantaneous measurements and can be used in a wider range of environmental conditions than digital force gauges. Hooks, compression plates, levers, handles, test stands, and other accessories can be used with the gauge for taking measurements on objects with a range of shapes and sizes.

Loos & Co. manufactures aircraft cable and wire rope and related measurement tools. The company, founded in 1958 and headquartered in Pomfret, CT, meets International Organization for Standardization (ISO) standard 9001.

What’s in the Box?
  • FGS-200PV E-Force motorized test stand
  • (1) FGS-FGV200P interface cable
  • (1) USB cable
  • Instructions
