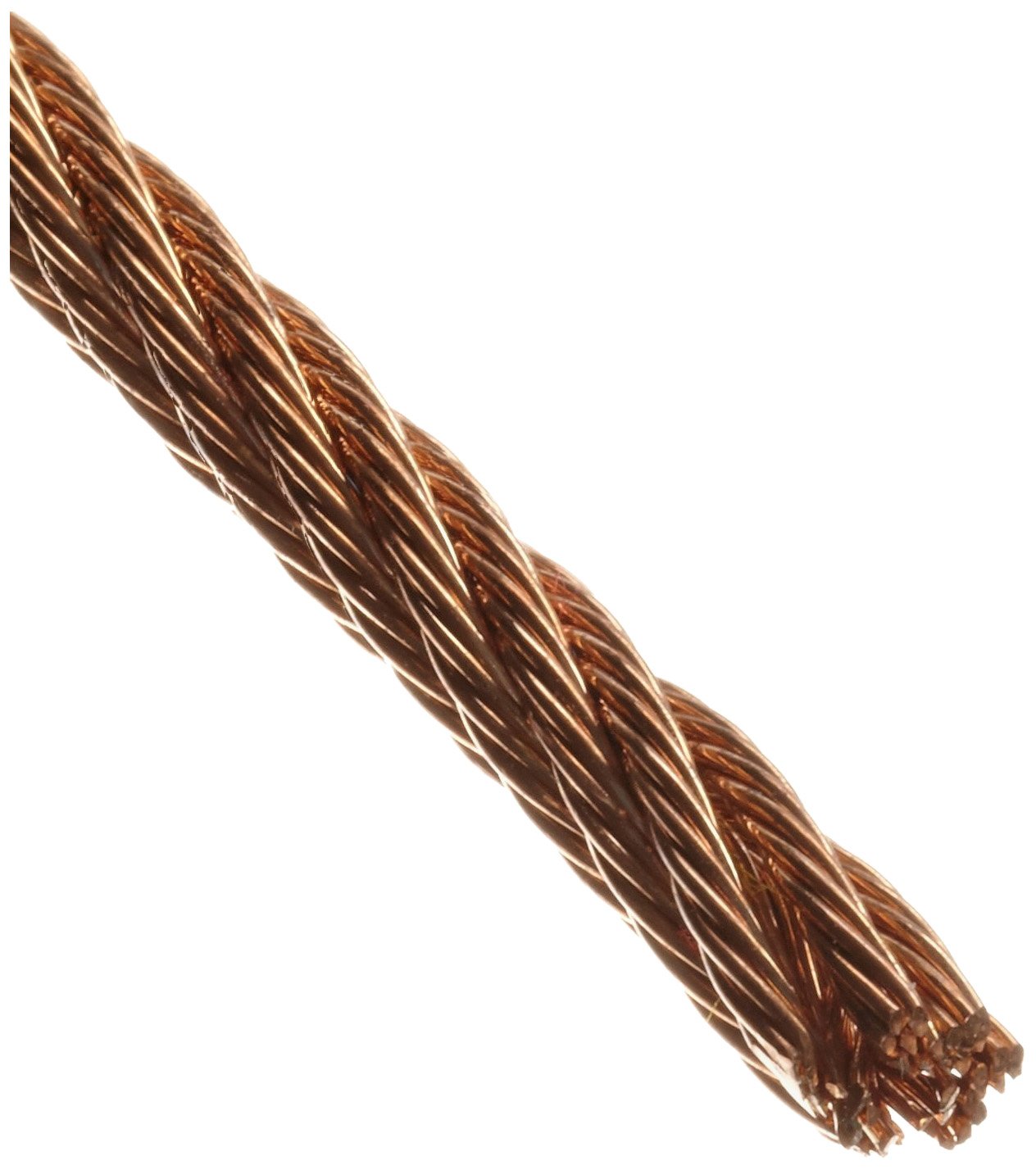

Loos Bronze Wire Rope, 7x7 Strand Core

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Bright
Standard Construction
7x7 Strand Core
Material Type
Bronze
Coated OD
[ N/A ]  inches
UNSPSC Code
31150000
Brand Name
Loos & Co.
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 23 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Bare OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-4 of 4
1/32" 10 ft 43 lbs B0013HK162 yes $2.05 Buy Options
1/16" 100 ft 170 lbs B0013HGP2Q yes $39.29 Buy Options
1/8" 25 ft 660 lbs B0013HIG28 yes $25.16 Buy Options
1/8" 10 ft 660 lbs B0013HIG1O yes $4.50 Buy Options

Key Features

  • Bronze material resists corrosion caused by brine, gases, and sulfite solutions
  • Bronze is non-magnetic, non-sparking, and has a smooth finish for ease of operation
  • 7x7 class strand core has seven strands of wire rope with seven wires in each strand, and is formed helically around a strand core
  • 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions
  • Can be used over pulleys, and in aircraft and automotive controls

Product Description

Wire rope with 7x7 strand core standard construction is commonly used over pulleys, and in aircraft and automotive controls. Bronze material resists corrosion caused by brine, gases, and sulfite solutions. This material is non-magnetic, non-sparking, and has a smooth finish for ease of operation. 7x7 standard construction strand core has seven strands of wire rope with seven wires in each strand, and is formed helically around a strand core. 7x7 strand core is stronger, but less flexible than 6x19 and 6x36 class constructions.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
