Loc-Line Acetal Copolymer Coolant Hose Assembly Kit, 7 Pieces

Be the first to review this item

Product Specifications
Material Type
Acetal
Brand Name
Loc-Line

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 19 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
1/2" B006R9OFGS 32 $9.50 Buy Options
1/4" B006R9O3HE 82 $8.49 Buy Options

Key Features

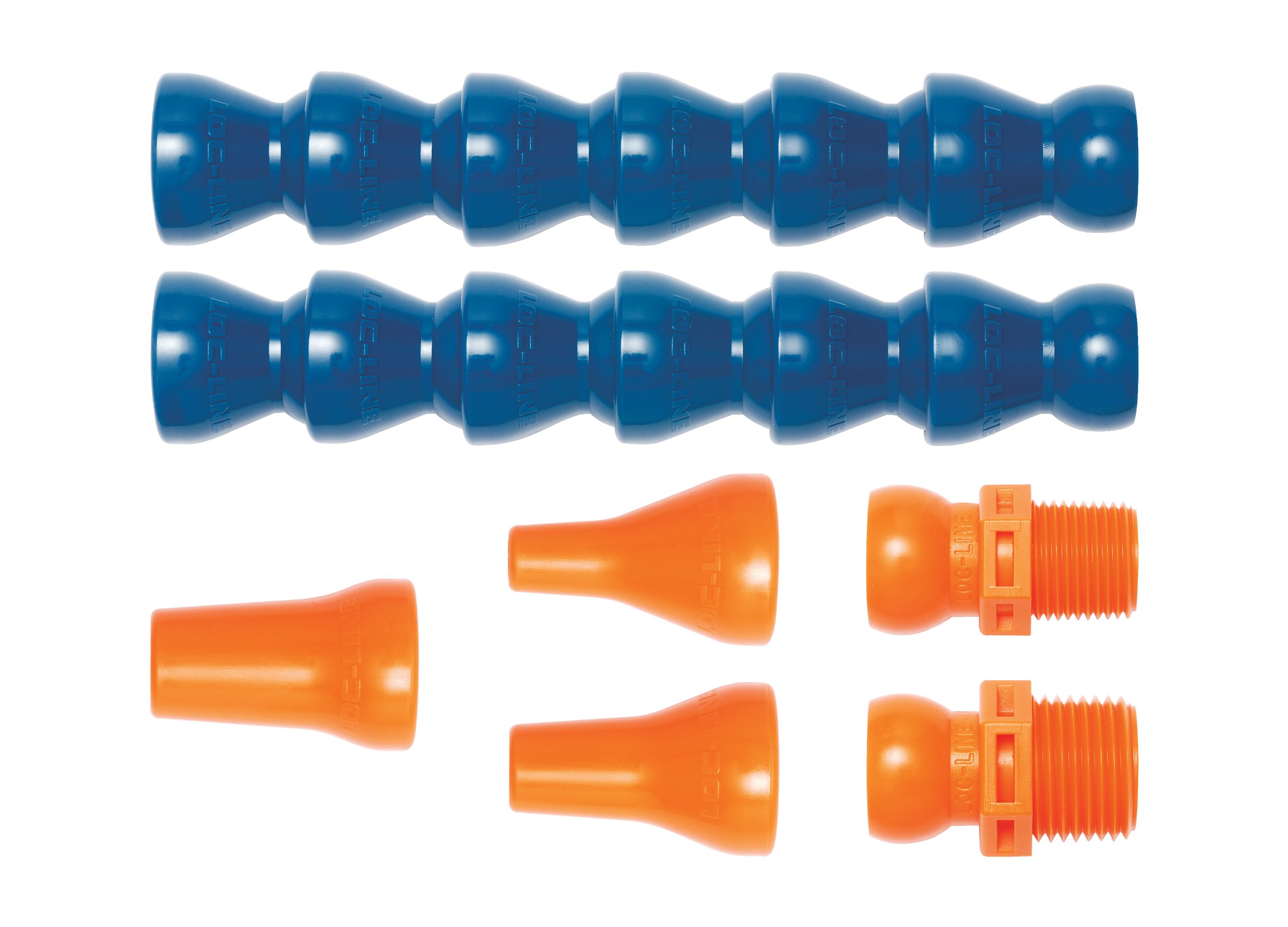

  • Kit of 7 acetal copolymer modular hose components includes 2 hose segments, 3 round nozzles, and 2 NPT connectors
  • Components attach to each other by the Loc-Line ball-and-socket design, and the NPT connector has one end threaded for connecting to NPT pipe
  • Acetal copolymer plastic resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide
  • Maximum operating temperature of 170 degrees F
  • Meets NSF/ANSI standards 14, 51, and 61 for drinking (potable) water

Product Description

The Loc-Line coolant hose assembly kit is made of acetal copolymer plastic and includes 7 components to build an assembly: 2 Loc-Line hose segments, 3 round nozzles for outlet flow, and 2 NPT connectors to attach Loc-Line hose to NPT threaded male pipe. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The components have a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The components connect to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.

Specifications
Maximum Pressure, 1/4" Inner Diameter30 psi (up to 110 psi with element clamp)
Maximum Flow, 1/4" Inner Diameter250 gallons/hour
Maximum Pressure, 1/2" Inner Diameter20 psi (up to 110 psi with element clamp)
Maximum Flow, 1/2" Inner Diameter478 gallons/hour
Maximum Pressure, 3/4" Inner Diameter10 psi
Maximum Flow, 3/4" Inner Diameter1,140 gallons/hour

Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.

What's in the Box?

  • Loc-Line acetal copolymer hose segments (2)
  • Loc-Line acetal copolymer round nozzles (3)
  • Loc-Line acetal copolymer connectors, NPT (2)
