Loc-Line Coolant Hose Flared Tubing Replacement Kit, Acetal Copolymer, 21 Pieces, 1/4" Hose ID

Be the first to review this item

ASIN B006R9O4QO

Specifications for this item
Number of Items
1
Material Type
Acetal
Part Number
40452
UPC
662633404527
Brand Name
Loc-Line
Size Name
1/4"
EAN
0662633404527
Compatible Material
Acetone , Ethyl Alcohol , Commercial Dish Detergents , Gasoline , Greases , Lacquer Solvents , Oils , Sodium Hydroxide
Upper Temperature Range
170  Degrees Fahrenheit
List price:
$30.88
Price:
$29.93
You save:
$0.95 (3%)
Quantity:

In Stock (9)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 16 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Kit of 21 acetal copolymer modular hose components includes 8 hose segments, 8 round nozzles, 1 flare nozzle, 4 flare nut adapters
  • Replaces flared copper tubing
  • Acetal copolymer plastic resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide
  • Maximum operating temperature of 170 degrees F
  • Meets NSF/ANSI standards 14, 51, and 61 for drinking (potable) water

Package Details

Shipping Weight: 0.4 pounds
Package Size: 7 x 7 x 1.5 inches

Product Description

The Loc-Line coolant hose flared tubing replacement kit is made of acetal copolymer plastic and includes 21 components to replace flared copper tubing: 8 Loc-Line 1/4" hose segments, 4 round nozzles with 1/4" opening, 4 round nozzles with 1/8" opening, a 1" opening flare nozzle, and 4 flare nut 3/8" adapters. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The components have a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The components connect to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.

Specifications
Maximum Pressure, 1/4" Inner Diameter30 psi (up to 110 psi with element clamp)
Maximum Flow, 1/4" Inner Diameter250 gallons/hour
Maximum Pressure, 1/2" Inner Diameter20 psi (up to 110 psi with element clamp)
Maximum Flow, 1/2" Inner Diameter478 gallons/hour
Maximum Pressure, 3/4" Inner Diameter10 psi
Maximum Flow, 3/4" Inner Diameter1,140 gallons/hour

Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.

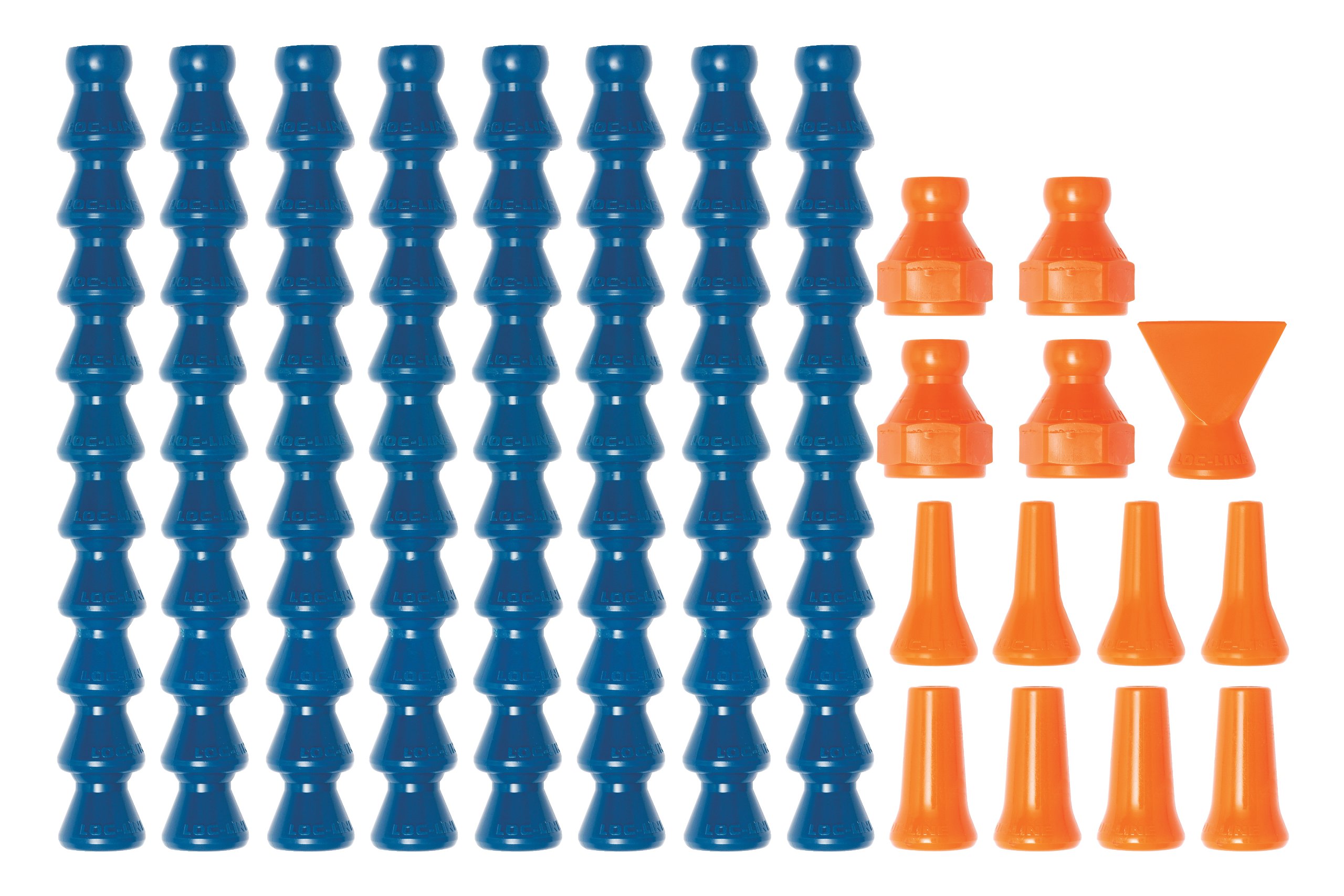

What's in the Box?

  • Loc-Line 1/4" inner diameter acetal copolymer hose segments, 5.75" length (8)
  • Loc-Line acetal copolymer round nozzles, 1/4" opening (4)
  • Loc-Line acetal copolymer round nozzles, 1/8" opening (4)
  • Loc-Line acetal copolymer flare nozzle, 1" opening (1)
  • Loc-Line acetal copolymer 3/8" flare nut adapters (4)
