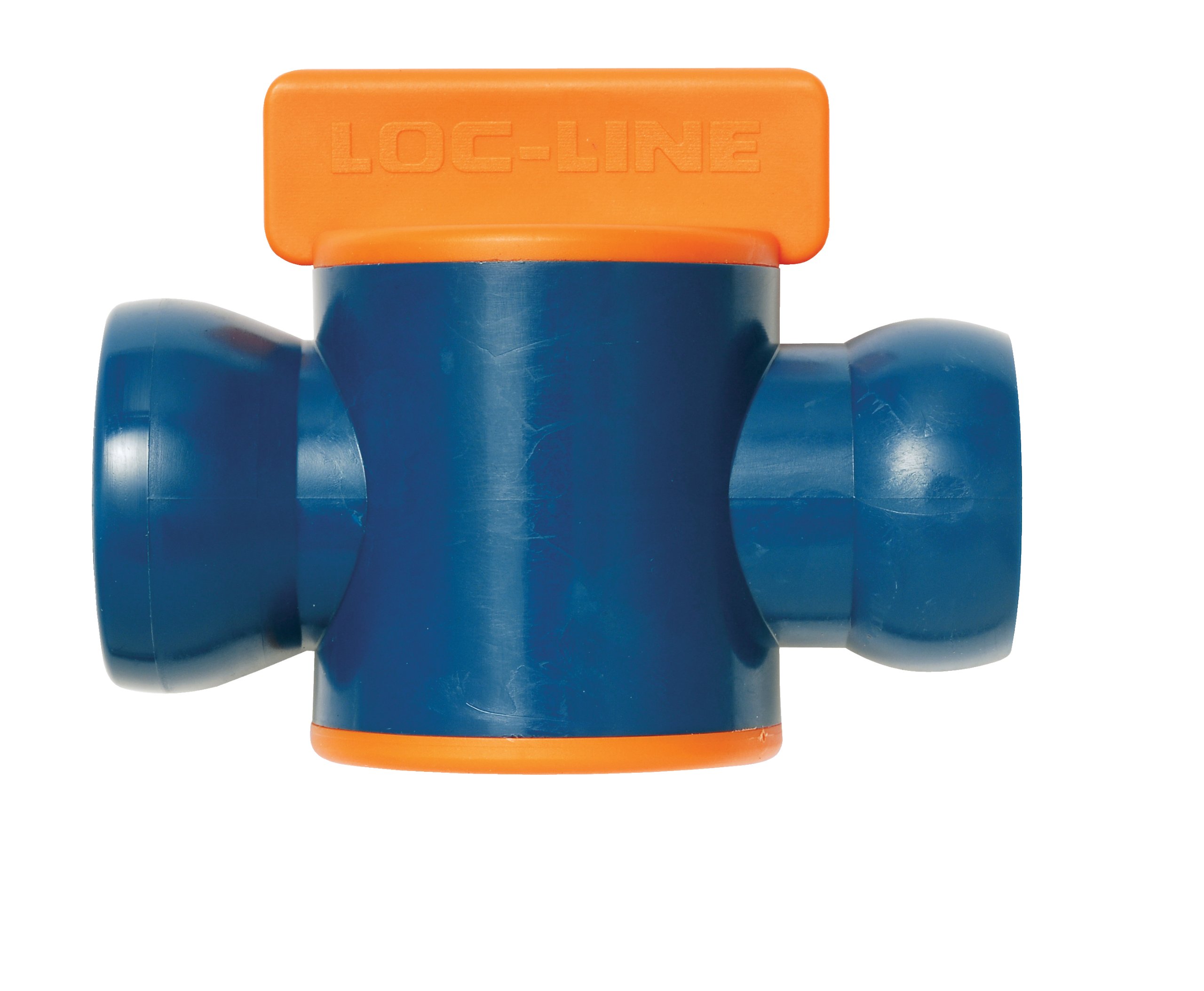

Loc-Line Coolant Hose Component, Orange/Blue Acetal Copolymer, In-Line Valve

Be the first to review this item

Product Specifications
Material Type
Acetal
UNSPSC Code
40141600
Brand Name
Loc-Line

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 9 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
1/2" B0025PR3OE yes $46.50 Buy Options
1/2" B006R9O1J4 yes $13.03 Buy Options
1/4" B006R9NWV2 yes $10.65 Buy Options
1/4" B006R9NZXW yes $38.45 Buy Options
3/4" B006THEG4E yes $59.27 Buy Options
3/4" B006THEDJC yes $16.17 Buy Options

Key Features

  • Valve to regulate the flow of coolant or air
  • Fitting connects to Loc-Line modular hose on both ends
  • Acetal copolymer plastic has orange and blue colors, resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide
  • Maximum operating temperature of 170 degrees F
  • Material meets NSF/ANSI standards 14, 51, and 61 for drinking (potable) water

Product Description

The Loc-Line valve fitting is made of orange and blue acetal copolymer plastic, connects to Loc-Line modular hose or fittings, and adjusts manually to regulate the flow of coolant or air. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The fitting has a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The component connects to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.

Specifications
Maximum Pressure, 1/4" Inner Diameter30 psi
Maximum Flow, 1/4" Inner Diameter250 gallons/hour
Maximum Pressure, 1/2" Inner Diameter20 psi
Maximum Flow, 1/2" Inner Diameter478 gallons/hour
Maximum Pressure, 3/4" Inner Diameter10 psi
Maximum Flow, 3/4" Inner Diameter1,140 gallons/hour

Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.
