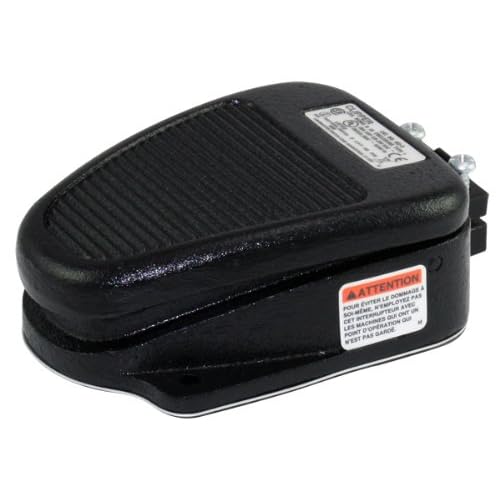

Linemaster 632-S Clipper Foot Switch, Electrical, Single Pedal, Momentary, Single Stage, No Guard, Black

Be the first to review this item

ASIN B002P55Y36

Specifications for this item
Number of Items
1
Color Name
Black
Material Type
Cast Iron
Part Number
632-S
Brand Name
Linemaster
Manufacturer Series Number
632-S
UNSPSC Code
39122222
System of Measurement
English

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 6 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 20 amp, 125-250V, 1 HP foot switch for use with medium-duty electrical devices
  • Cast iron housing for strength durability
  • Non-skid base for stability and safety with two bolt holes for mounting to floor or equipment
  • Single-stage, momentary action for quick-release termination
  • Integral, adjustable strain relief clamp protects cord (not included) from strain or pulling

Package Details

Shipping Weight: 2 pounds
Package Size: 5.3 x 3.6 x 1.7 inches

Product Description

This Linemaster 632-S Clipper 20 amp, 125-250V, 1 HP foot switch has a cast iron housing, strain relief cord clamp, and an outlet for connecting with electric devices. This foot switch is suitable for use in applications in which users need hands-free, on-and-off power activation. The foot switch provides single-stage, momentary action for quick-release termination. It has a cast iron body for strength and durability. The non-skid base gives the foot switch stability to help prevent sliding on smooth floors, and it has bolt holes for mounting to the floor or equipment. An adjustable strain relief clamp protects the cord (not included) from damage caused by pulling or stretching. This foot switch is certified by the Canadian Standard Association (CSA), meets United States Underwriters Laboratories (UL) standards for quality assurance, and has an Ingress Protection (IP) rating of 20 for protection against small amounts of dripping water and access with a finger. A guard, boot, and other accessories are available for this product (contact manufacturer). This momentary operation foot switch is suitable for medium-duty applications such as power tools, musical equipment, and others.

Specifications

Output20 amp, 125-250V
HP1
Mounting2 bolt holes
Circuitry SPDT, Form C contact
Unit weight2.25 lb.
Dimensions1.5 x 3.5 x 4.5" (H x W x D)
QualityCSA, UL
Degree of ProtectionIP20

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Foot switches are used to turn on and off electrical devices and may also provide control over the device's speed and mode of operation. They come with up to three pedals and can have a maintained, momentary, variable, or anti-trip switch action. For maintained action switches, one press of the pedal controls the power, whereas momentary action switches require constant pressure on the pedal for power. Variable action switches (also called foot potentiometers) function similarly to momentary action switches, but also provide control over the connected device's operating speed. Anti-trip action switches require users to release a safety latch before pressing down for momentary action. Foot switches vary in their contact specifications, amp ratings, plugs and receptacles, and material construction to suit different applications, device amperages, plug configurations, and environments. Foot switches are commonly used with power tools, sewing machines, musical instruments, dental equipment, and lighting, and in the construction, laboratory, production, and medical fields, among others.

Linemaster Switch Company manufactures electromechanical, pneumatic, digital, linear Hall effect, and wireless foot switches for use in the industrial, medical, computer, and musical fields, among others. The company, founded in1952, is headquartered in Woodstock, Connecticut, and meets International Organization for Standardization (ISO) 2001:2008 and ISO 13485:2003 standards.
