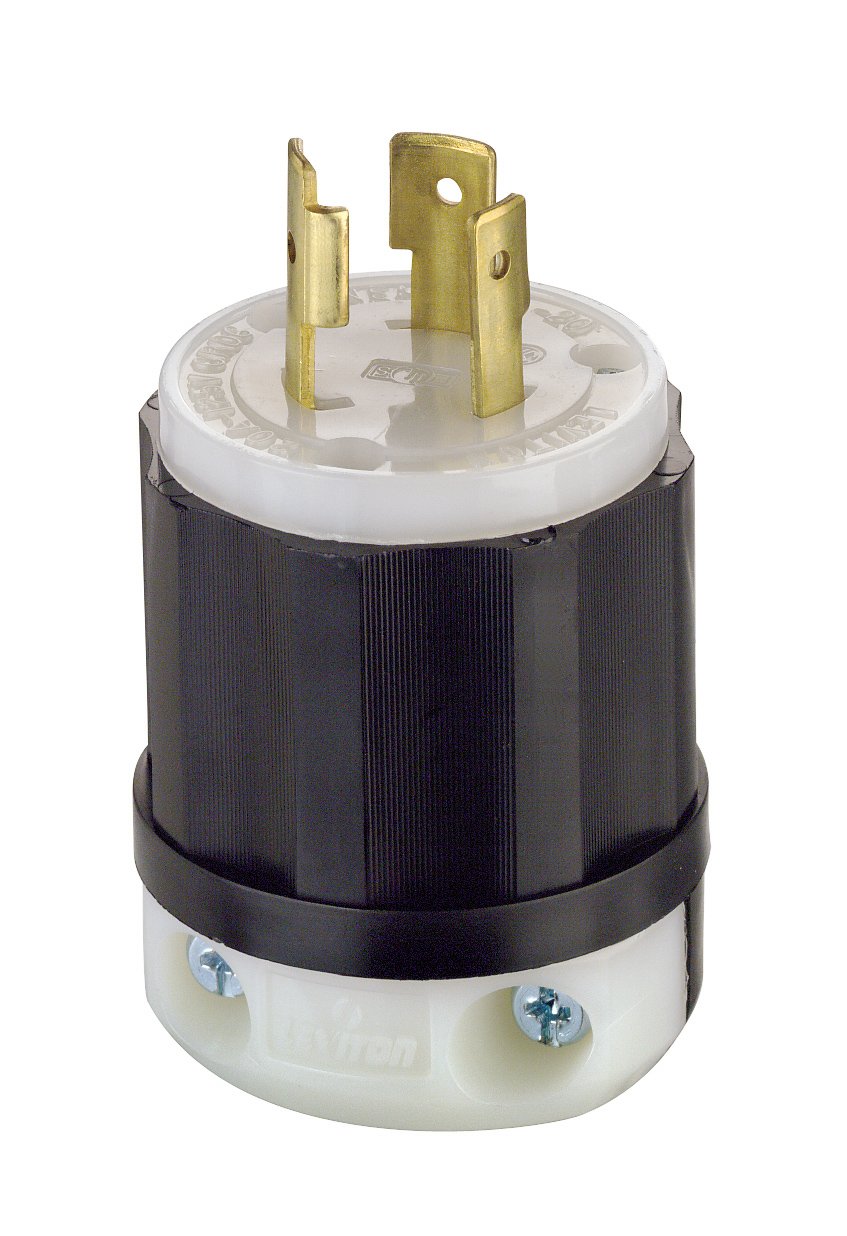

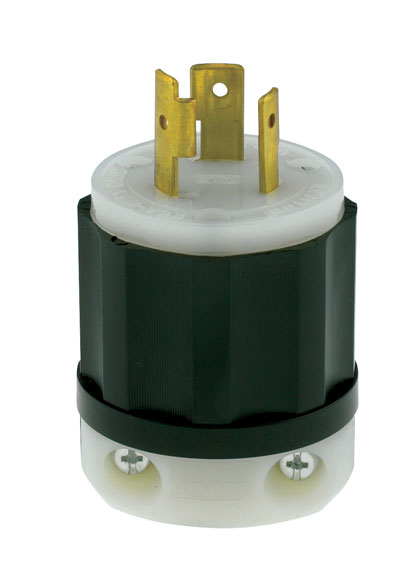

Leviton 2311 20 Amp, 125 Volt, NEMA L5-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White

Be the first to review this item

ASIN B00002NASX

Specifications for this item
Number of Items
1
Color Name
Black-White
Part Number
061-2311
UPC
078477800942
Item Weight
0.3 pounds
Brand Name
Leviton
EAN
0078477800942
UNSPSC Code
39121402
Warranty
Lifetime Warranty

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 5 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Super Tough Nylon Body Resists Damage From Severe Impact, Abrasion and Chemicals
  • NEMA and Non-NEMA Configurations Available
  • Solid Brass Blades And Contacts Feature Improved Conductivity, Low Resistance, Low Heat, and Long Life
  • Internal Wiring Chambers Isolate Individual Conductors to Prevent Flashover, Arcing, and Stray Strands of Wire
  • Deep slotted triple drive face module and cord clamp screws

Package Details

Shipping Weight: 0.3 pounds
Package Size: 4.3 x 2.4 x 2.4 inches

Product Description

Amazon.com

Complete with a moldable nylon face for easy identification and replacement, the Leviton 2311 Grounding Locking Plug provides rugged, industrial-grade performance you can trust. It features heavy-duty construction, an ergonomically designed fluted body, and its catalog number marked permanently on the cord clamp. The 2313 is UL-listed, and meets CSA and NOM requirements.

LEVITON Logo
2311 Grounding Locking Plug
At a Glance:
  • Features ergonomically designed fluted body with radial gripping edge

  • Thick-walled nylon housing resists abuse and impact

  • NEMA configuration and ratings molded into face

  • Backed-out, color-coded brass terminal screws

  • Lifetime warranty
callout bottom

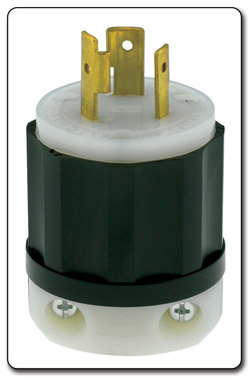

2311 Grounding Locking Plug
Thick-walled, tough nylon housing resists abuse and impact. View larger.
Heavy-Duty Nylon Construction Resists Abuse
Like all Leviton plugs and connectors, the 2311 Locking Grounding Connector offers superior performance, long-lasting reliability, and advanced features. This 20-amp, 125-volt, NEMA L5-20P, 2P, 3W locking connector offers heavy-duty nylon construction that resists damage from severe impact, abrasion, and chemical attack. At the same time, the dead-front, solid contaminant barrier prevents accidental--and potentially dangerous--contact with internal parts.

User-Friendly Design for Safety and Easy Identification
The 2311 has an ergonomically designed fluted body with a radial gripping ridge to make gripping and pulling easier. Speed-drive screws on the face allow for quick assembly, while single-piece, 0.035-inch-thick contacts are free of rivets for longer life and continuous conductivity.

User-Friendly Design for Safety and Easy Identification
Designed to be user-friendly and provide safe, reliable performance, the 2311 features internal wiring chambers that isolate individual conductors to prevent flashover, arcing, and excessive heat buildup.

For added convenience, the NEMA configuration and device ratings are molded into the deep-slotted, triple drive face for fast, easy identification. It also features backed-out, color-coded brass terminal screws and the catalog number is permanently marked on the cord clamp.

The Leviton 2311 Grounding Locking Plug is backed by a lifetime warranty.

What's in the Box
Leviton 2311 Grounding Locking Plug and manual.


From the Manufacturer

Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. 20 Amp, 125 Volt, NEMA L5-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White
