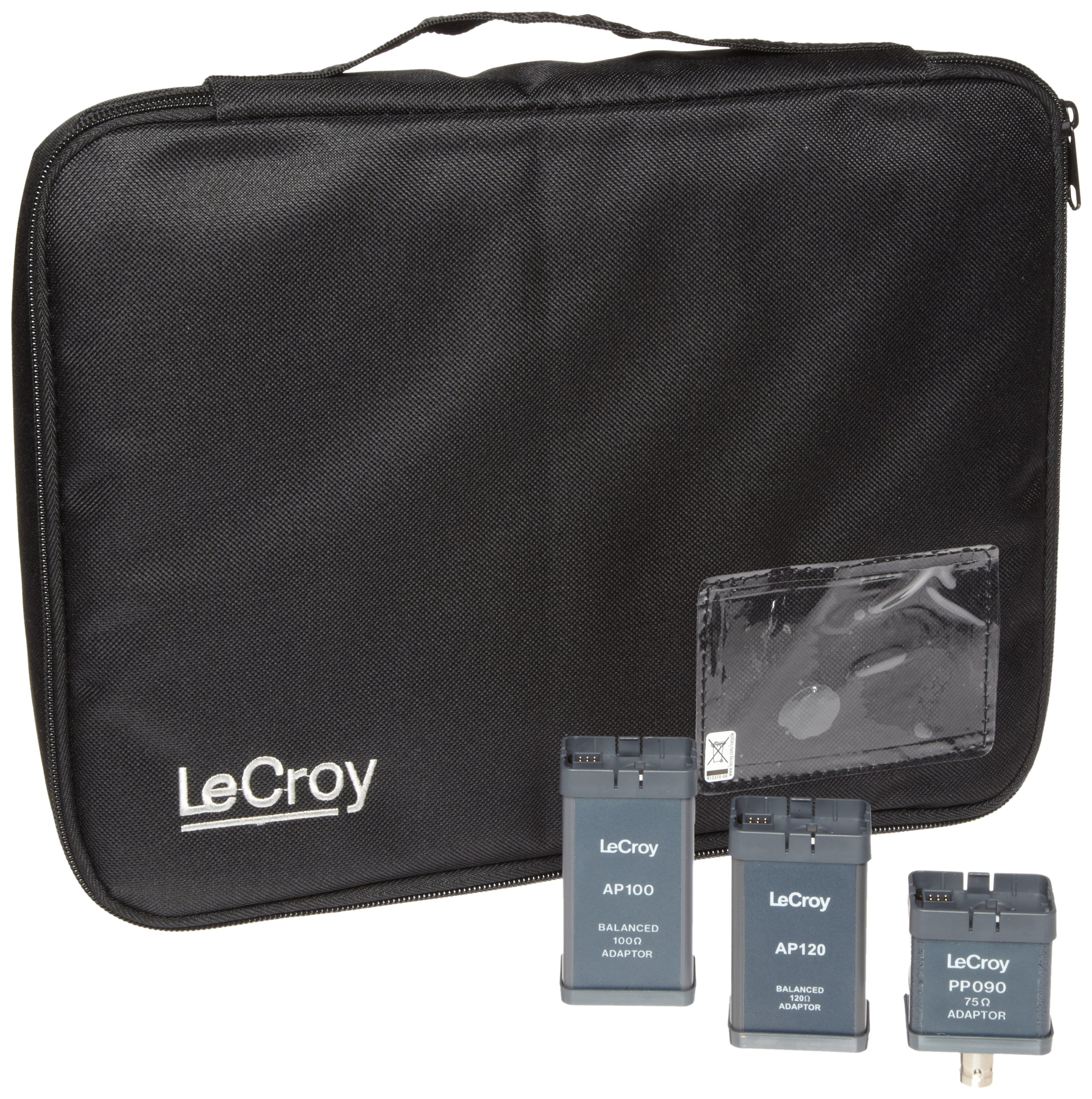

LeCroy TF-ET Electrical Telecom Adapter Kit, 100 Ohm, 120 Ohm, 750 Ohm

Be the first to review this item

ASIN B0094JWTK2

Specifications for this item
Number of Items
1
Part Number
TF-ET
Brand Name
LeCroy

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Used in conjunction with the electrical telecom mask testing package
  • Comes with three adaptors: AP120, AP100 and PP090
  • This is a telecom adaptor kit of 100 ohm, 120 ohm and 75 ohm
  • Each adaptor is used to properly terminate the input signal, and is used for a specific set of standards
  • Use banana plugs to bring your signals and ground into the AP120

Package Details

Shipping Weight: 2.05 pounds
Package Size: 13.5 x 12.5 x 4 inches

Product Description

The adaptor kit, which is used in conjunction with the electrical telecom mask testing package, comes with three adaptors: AP120, AP100 and PP090. Each adaptor is used to properly terminate the input signal, and is used for a specific set of standards. This application brief describes how to use the adaptors and to adjust the trace in order to fit it to the mask. AP120: It is used to properly terminate E1-TP (twisted pair) signals. Use banana plugs to bring your signals and ground into the AP120. AP100: It is used to properly terminate DS-1 signals, and has an adaptor has a socket for a bantam connector. Bantam connectors are a standard connector type, and are available from most distributers of connectors and electronic parts and accessories. PP090: It is included for testing the remaining standards supported by the ET-PMT package, which each carry signals on 75ohm cable. The adapter converts to 50 ohm, and has a single BNC connector for inputting the signal into the PP090.
