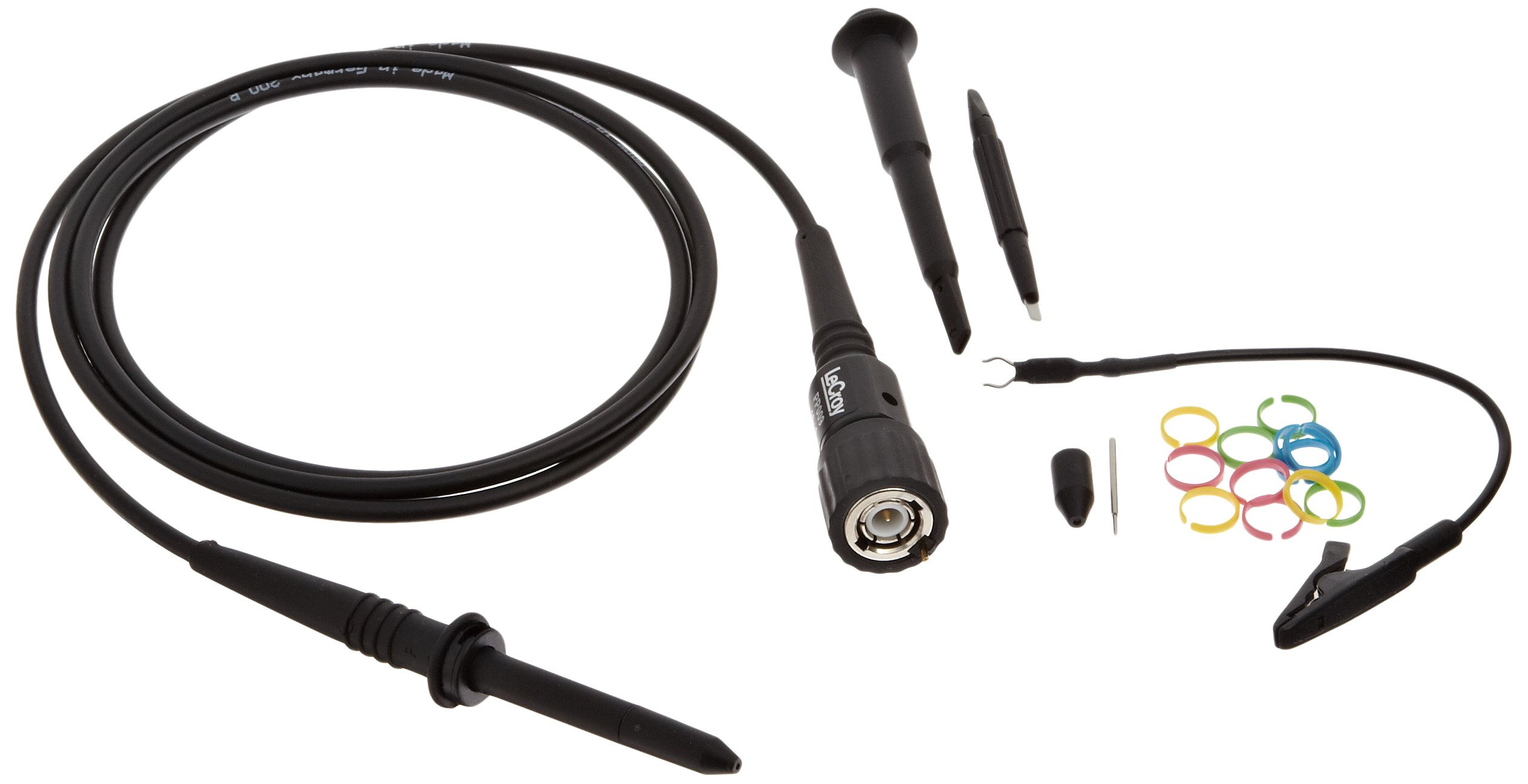

LeCroy PP009-1 Passive Probe, 10 Megaohms, 500 MHz Bandwidth, 400V, 10:1 Attenuation

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Temperature Range
0 to 50  Degrees Celsius
Brand Name
Power Source Type
400 Volts

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 4 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Bandwidth: 500 MHz
  • Input resistance: 10 megohm
  • 400V Maximum input voltage
  • Coupling: 1 megohm AC, 1 megohm DC, ground
  • Humidity: 80 percent maximum up to 31 degree C

Package Details

Shipping Weight: 0.3 pounds
Package Size: 12.3 x 8.2 x 0.5 inches

Product Description

Recommended for WaveSurfer 400 Series, WaveRunner Xi(A) Series (<600 MHz), WaveSurfer Xs(A,B) Series (<600 MHz), and WaveRunner 6 Zi Series Oscilloscopes. LT Series and WaveJet(A) Series (> 350 MHz) Oscilloscopes. Passive Probe. Bandwidth: 500 MHz. Input resistance: 10 megohm. Input capacitance: 9.5 pF. Maximum input voltage: 400 V. Attenuation: 10:1. Coupling: 1 megohm AC, 1 megohm DC, ground. Operating temperature: 0 to 50 degree C. Storage temperature: -40 to 71 degree C: Maximum altitude: 2000 m. Probe diameter: 5mm. Cable length: 1-3/16 meter. Interface: BNC. Attenuation sense pin: Yes.
