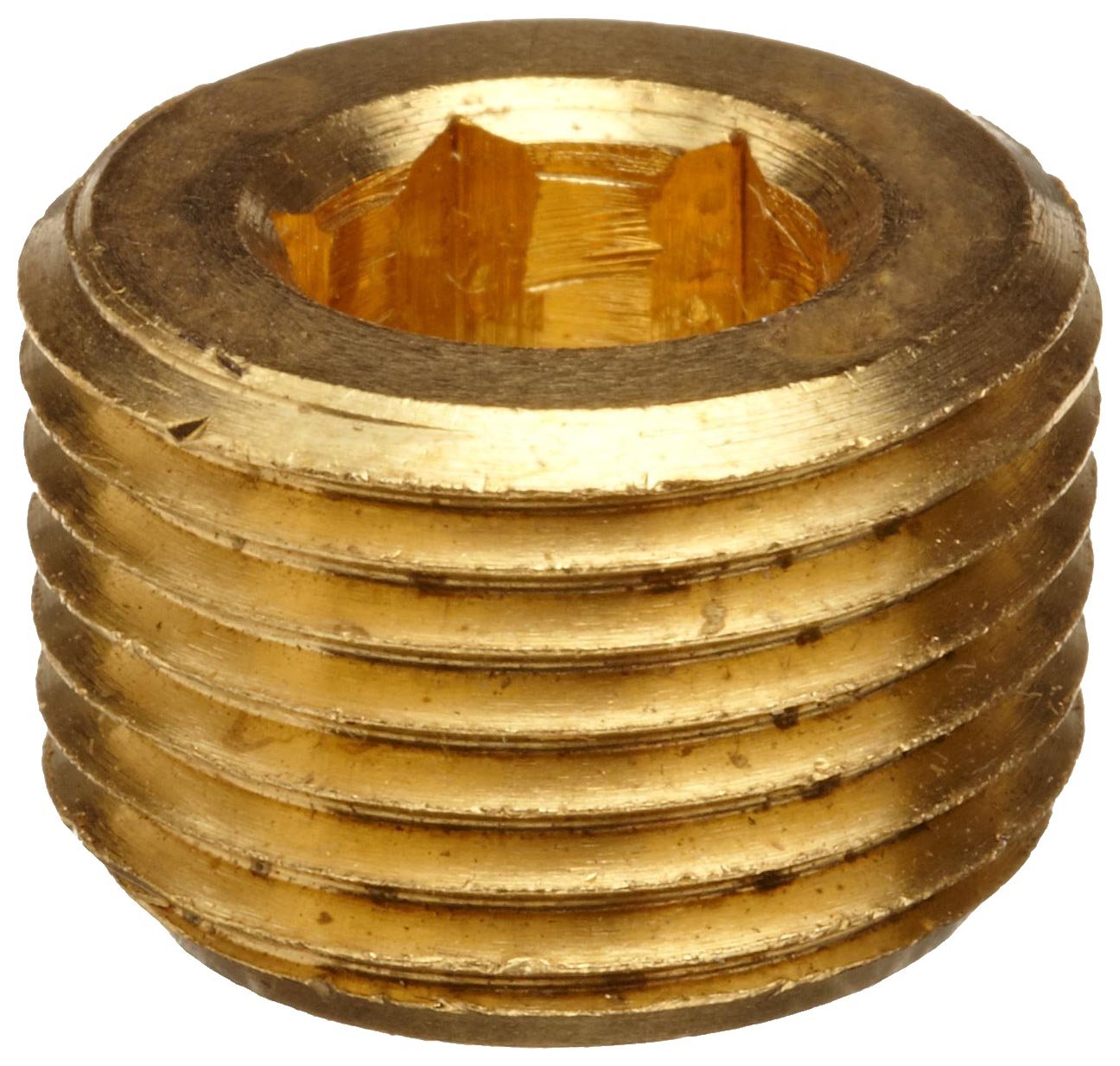

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lead Free Pipe Fitting, Countersink Plug, NPT Male X Female

Be the first to review this item

Product Specifications
Specification Met
SAE J476 , ANSI B1.20.3 , FED-STD-H28
Item Shape
Plug
Pressure Rating Class
Not Rated
Material Type
Brass
Style Name
Threaded
UNSPSC Code
40170000
Maximum Working Pressure
1000  PSI
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 2 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-4 of 4
1/8" 1 1/2" 25 B00N9ST4C0 Usually ships in 1 to 2 months $32.76 Buy Options
1/8"   1 B003TWP2RM Usually ships in 1 to 2 months $0.67 Buy Options
1/4" 1 1/2" 25 B00N9SXY58 Usually ships in 1 to 2 months $38.33 Buy Options
1/4"   1 B003TWP2S6 yes $0.90 Buy Options

Key Features

  • Hex countersunk plug for closing and terminating the end of a pipe
  • Male National Pipe Taper (NPT) threads for use with female threaded pipes
  • Made from lead-free brass for higher corrosion resistance than steel
  • Relative softness of metal enables tighter seals and greater ease in installation
  • Meets standards AE J476, ANSI B 1.20.3, FED-STD-H28/8, and C2745 for quality assurance

Product Description

The Merit Brass hex countersunk plug is a class 125 lead free brass pipe fitting with male National Pipe Taper (NPT) threads for closing the end of a pipe. The plug inserts into female pipes or fittings and connects with NPT threads, which create a tighter seal than straight threads. This plug has a countersunk hexagonal head for increased leverage during installation and disassembly with a wrench. It is made from lead-free brass which is comparable in strength to stainless steel and more corrosion resistant. This class 125 fitting meets standards SAE J476, ANSI B 1.20.3, FED-STD-H28/8, and C2745 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. The company, family-owned since 1937 and headquartered in Cleveland, OH, distributes pipe fittings in the United States and Canada.
