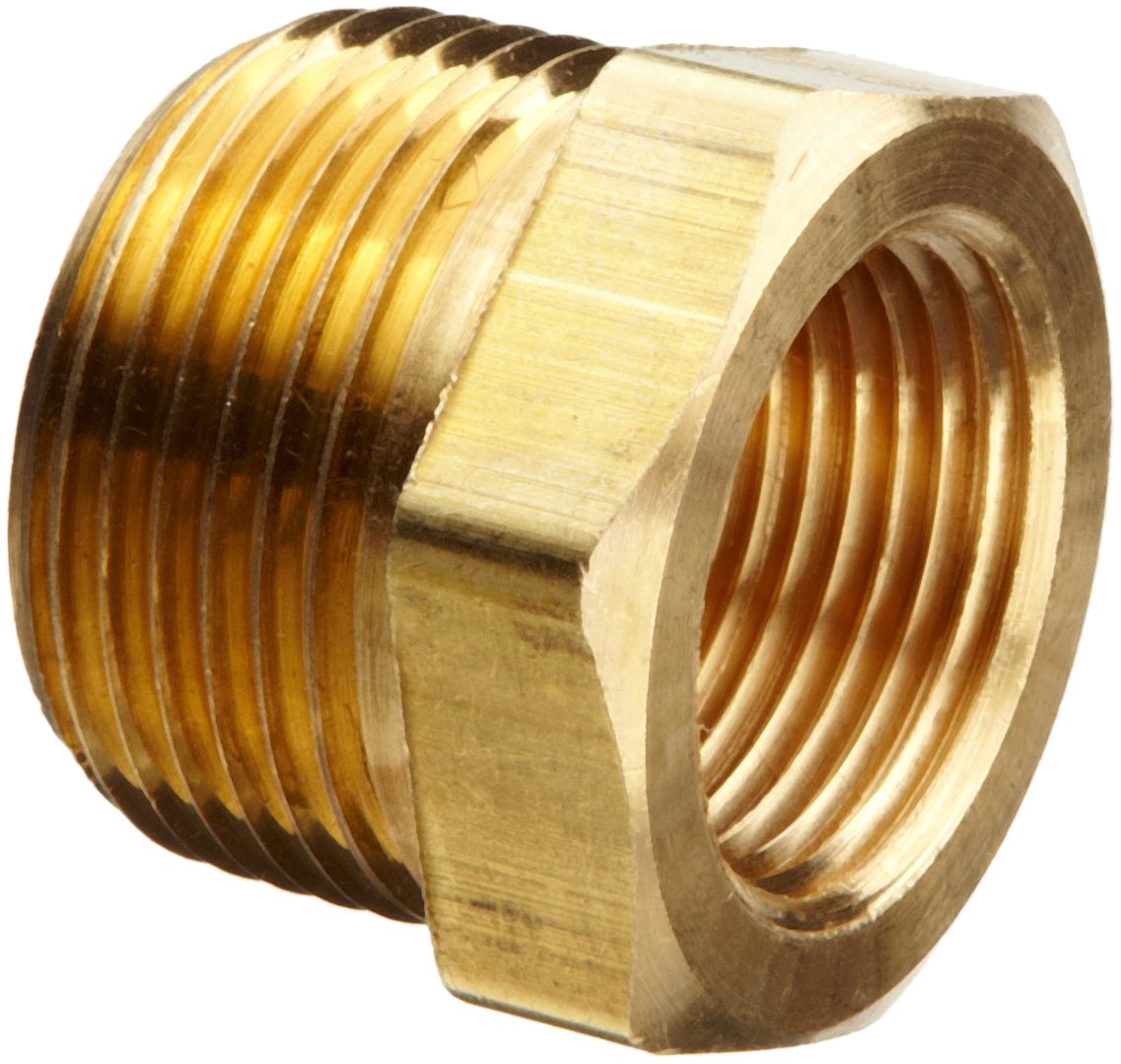

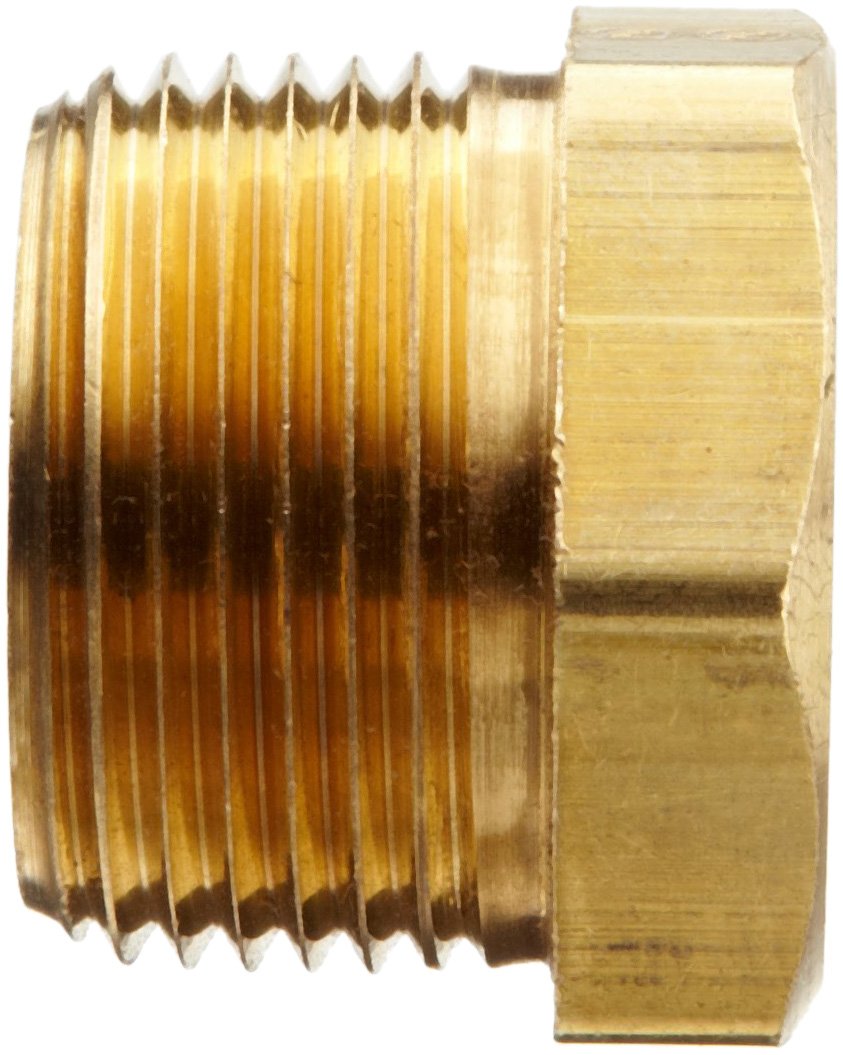

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lead Free Pipe Fitting, Face Bushing, NPT Male X NPT Female

Be the first to review this item

Product Specifications
Specification Met
SAE J476^ANSI B1.20.3^FED-STD-H28
Item Shape
Bushing
Pressure Rating Class
Not Rated
Material Type
Brass
Style Name
Threaded
UNSPSC Code
40170000
Maximum Working Pressure
1000  PSI
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 10 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-6 of 6
3/8" x 1/8" 2" 25 B00N9SS38Q yes $37.53 Buy Options
3/8" x 1/8"   1 B003TWP2GS yes $1.40 Buy Options
1/2" x 1/8" 5" 25 B00N9SS9JE yes $80.56 Buy Options
1/2" x 1/8"   1 B003TWP2HC yes $2.70 Buy Options
3/4" x 1/8" 5 1/2" 25 B00N9T513K yes $146.68 Buy Options
3/4" x 1/8"   1 B003TWP2I6 yes $6.50 Buy Options

Key Features

  • Hex bushing for connecting pipes of different sizes
  • Male and female National Pipe Taper (NPT) threads for connecting two pipes
  • Made from lead-free brass for higher corrosion resistance than steel
  • Relative softness of metal enables tighter seals and greater ease in installation
  • Manufactured to standards NSF/ANSI 61, AB1953, and S.152 for lead-free quality assurance

Product Description

The Merit Brass hex bushing is a class 125 lead-free brass pipe fitting with male National Pipe Taper (NPT) threads on one end and female NPT threads on the other end for connecting pipes of different sizes. It has a hexagonal head for increased leverage and use with a wrench. Lead-free brass is comparable in strength to stainless steel and is more corrosion resistant. This class 125 fitting meets specifications SAE J476, ANSI B1.20.3, FED-STD-H28/8, and C27450 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
