Koyo Torrington Track Roller, Standard Stud, Unsealed/Slotted, Steel, Inch

Be the first to review this item

Product Specifications
Number of Items
1
Maximum Rotational Speed
0  RPM
Bore Diameter
N/A  inches
Material Type
Steel
Static Load Capacity
0  pounds
Dynamic Load Capacity
0  pounds
Brand Name
Koyo Torrington
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share
Currently showing 1-0 of 0
ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price

Currently showing 1-0 of 0

No results match your selection criteria.

Key Features

  • Track roller bearing with needle rollers supports moderate radial and shock loads in cam- and track-type applications
  • Stud-type design with a screwdriver slot for through-hole or threaded mounting
  • Thick outer ring helps minimize deformation under bending stresses
  • Full complement of rollers for higher radial load capacity than caged rollers
  • Meets ANSI/ABMA standard 18.2 for quality assurance

Product Description

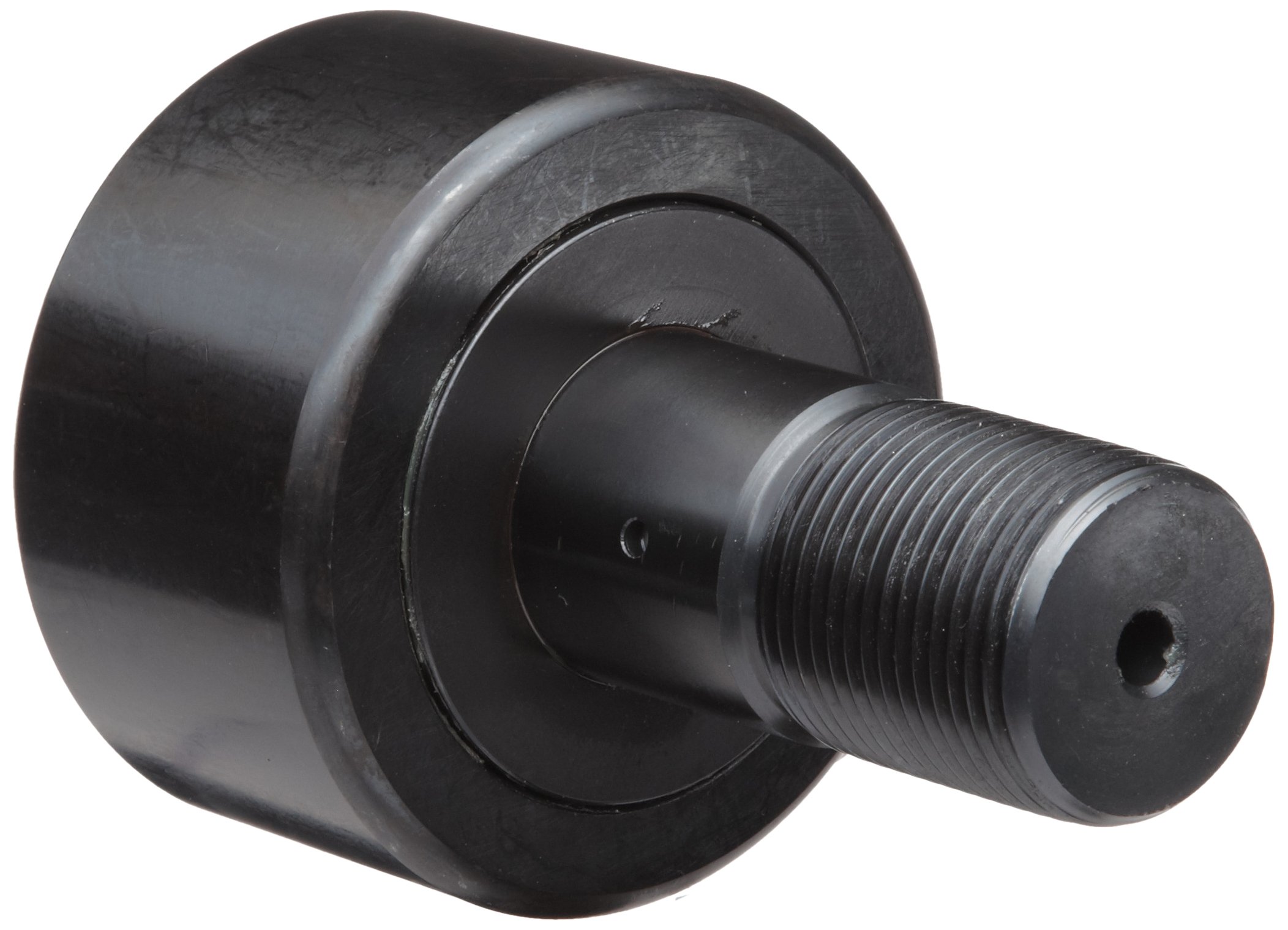

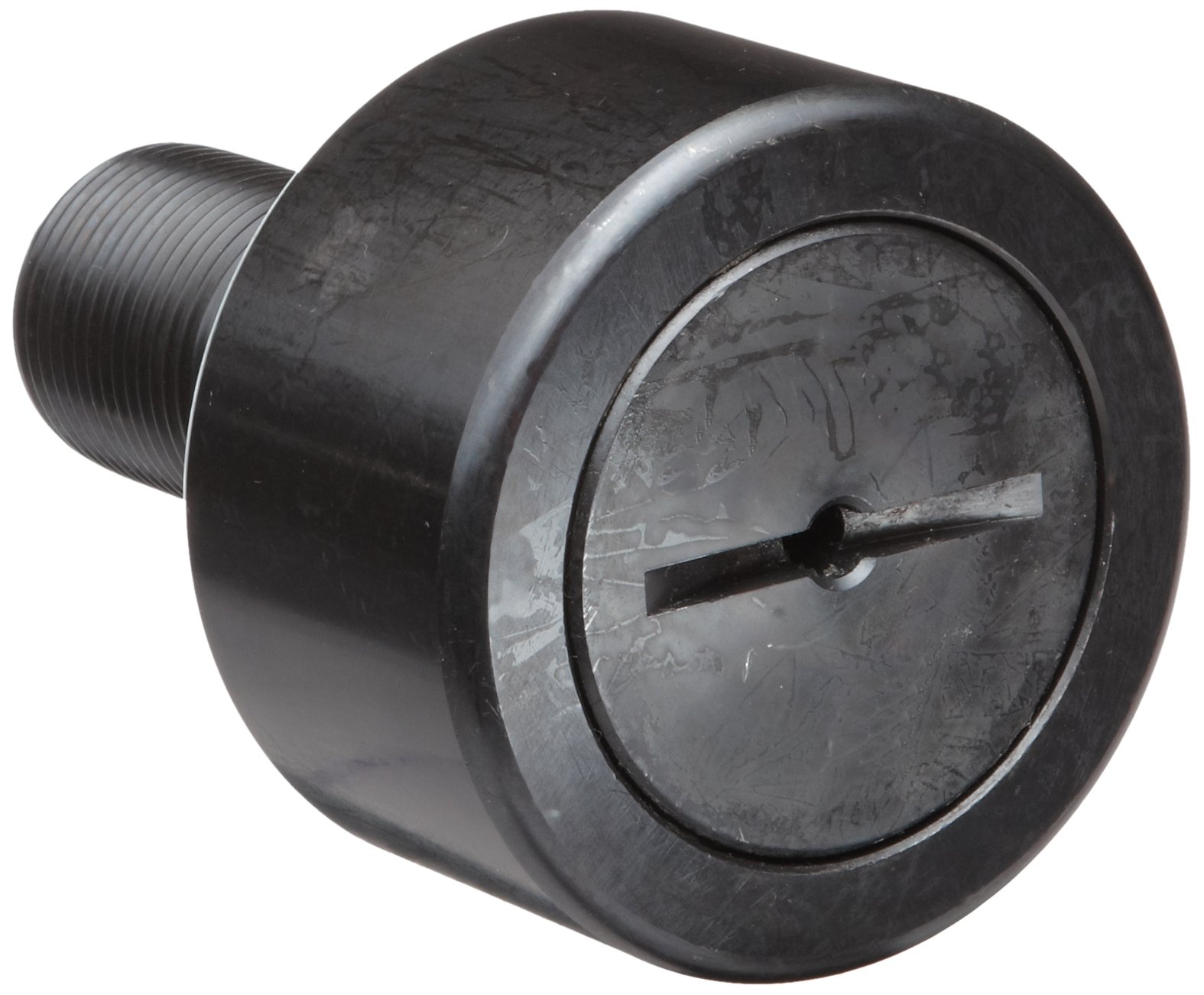

This Koyo Torrington steel stud-type track roller bearing with a screwdriver slot and lip seals handles moderate radial and shock loads in cam- and track-type applications. This track roller bearing, also called a cam follower, has a thick-walled outer ring that helps minimize deformation under heavy radial and shock loads. It has a non-separable, threaded stud-type design for through-hole or threaded mounting, a screwdriver slot on the flange end that helps keep the stud from turning while tightening the mounting nut, and a full complement of needle rollers for a higher radial load-carrying capacity than caged rollers. This track roller is made of bearing steel treated with black oxide for corrosion protection. Its operating temperatures range from -30 to +110 degrees C. All inch-series stud-type track rollers with a screwdriver slot can be relubricated through the flanged end of the stud. Sizes 12 and larger can also be relubricated through the threaded end of the stud and through a cross-drilled hole in the stud shank. Both stud ends accept a standard nominal inch drive-type grease lubrication fitting (not included). All Stud-type track rollers come with lubrication fitting plugs for closing off unused holes. This track roller bearing meets American National Standards Institute/American Bearing Manufacturers Association (ANSI/ABMA) standard 18.2 for quality assurance and is suitable for use in a broad range of applications including process transfer lines, ram support rollers, conveyors, machine tools, and indexing equipment, among others.

Track runner bearings, also called track roller bearings, are rolling element bearings with a thick-walled outer ring that rotates directly on cam and track surfaces. The thick outer ring helps minimize deformation under load stress and enables the bearing to handle heavy rolling and shock loads. Track runner bearings have either a stud-type or yoke-type mounting design. Stud-type track rollers, such as cam followers, have a built-in threaded rod, instead of an inner ring, for either threaded mounting or through-hole mounting onto machine components. Through-hole mounting uses a hexagonal nut on the threaded end to secure the bearing into place. Yoke-type track rollers, such as roller followers, are mounted in a yoke-style housing on a press-fitted or push-fitted shaft or pin. Available in a variety of materials and mounting configurations, track runner bearings are used in a broad range of cam-controlled and linear motion applications including agricultural machinery, conveying equipment, cam drives, material handling equipment, robotics, and automotive equipment, among others.

Koyo Bearings USA manufactures bearings, bearing assemblies, and needle rollers for automotive and industrial applications. The company, founded in 2009 and headquartered in Canton, OH, meets International Organization for Standardization Technical Specification (ISO/TS) standard 16949 and ISO standard 14001.
