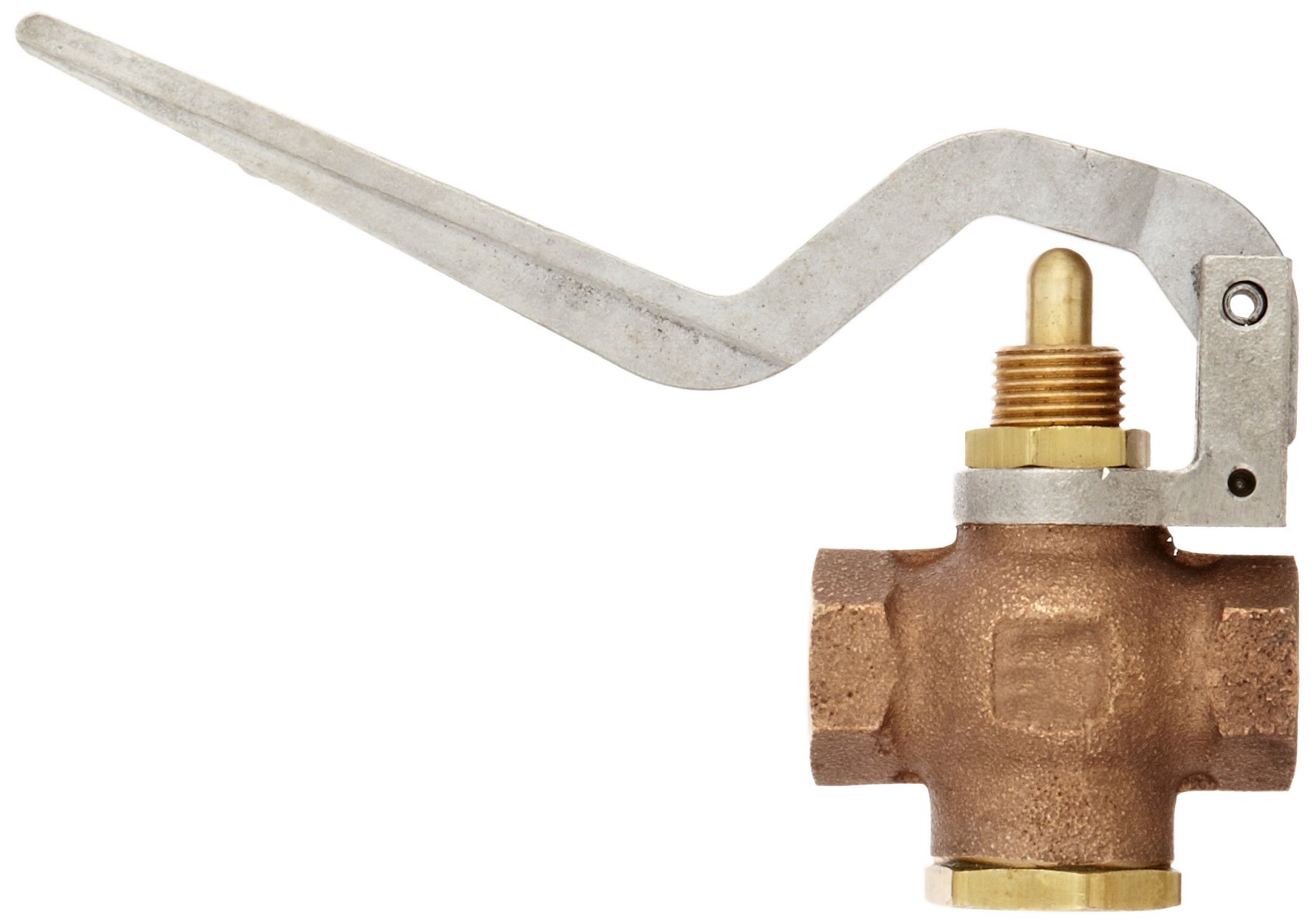

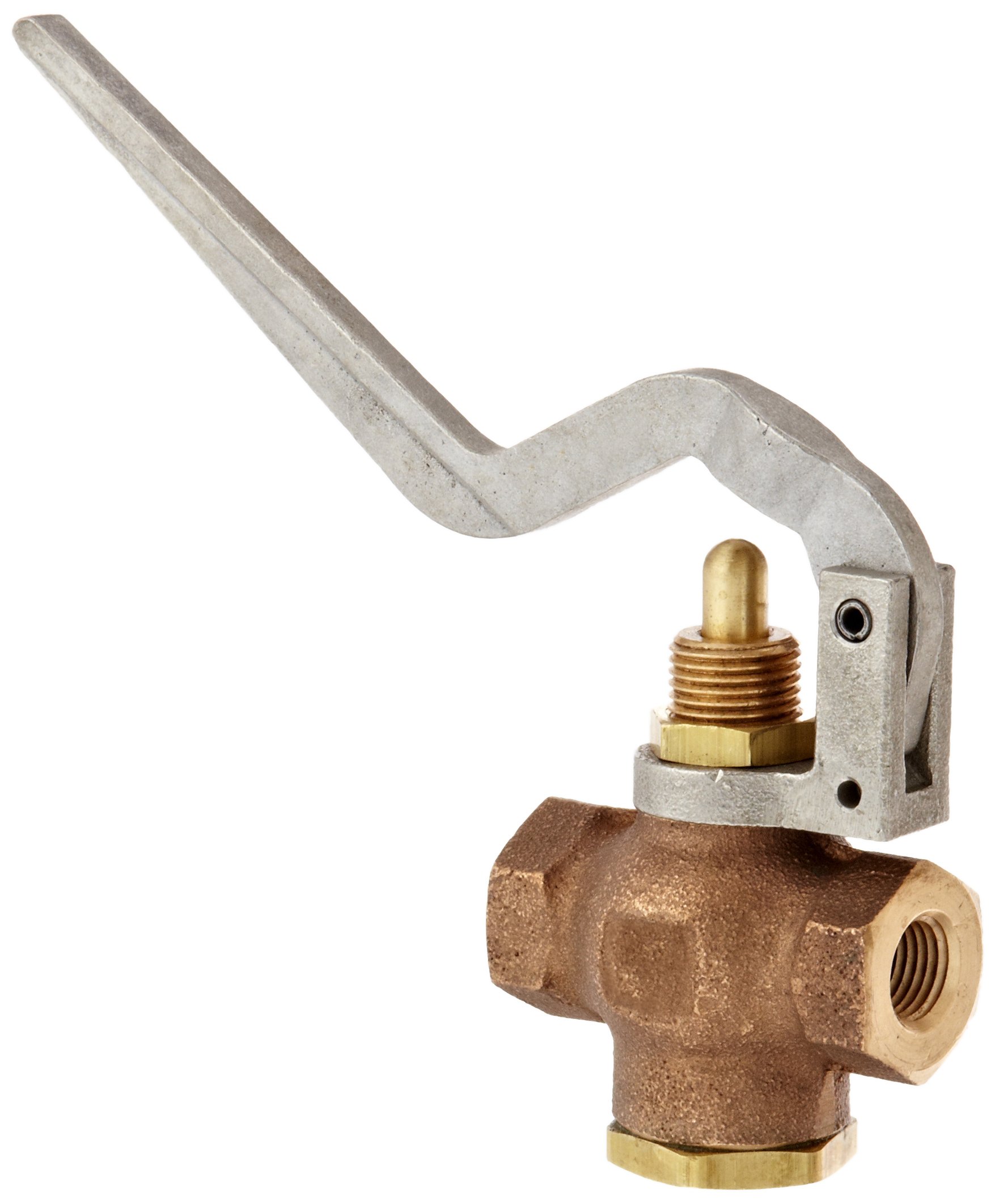

Kingston 305A Series Brass Quick Opening Flow Control Valve, Squeeze Lever, 1/4" NPT Female

Be the first to review this item

ASIN B006U4CTXG

Specifications for this item
Number of Items
1
Overall Height
2-31/32  inches
Material Type
Brass
Part Number
305A-2-1
Handle Type
Squeeze Lever
Brand Name
Kingston Valves
Size Name
1/4"
Manufacturer Series Number
305A Series
Upper Temperature Range
200  Degrees Fahrenheit
Connector Type
NPT Female
Style Name
Threaded
Maximum Working Pressure
400  PSI
Overall Length
2-5/32  inches
System of Measurement
Inch
List price:
$63.98
Price:
$42.37
You save:
$21.61 (34%)
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 14 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Heavy duty construction for lasting performance; Heavy Duty Flow Control
  • Kingston quality design, engineering and precision manufacturing
  • Precision machined for smooth operation
  • Stainless steel or music wire spring depending on set pressure
  • Tested in National Board Approved Quality Assurance Process

Package Details

Shipping Weight: 1.25 pounds
Package Size: 6.4 x 6.4 x 4.8 inches

Product Description

Kingston Model 305A Normally Closed, Quick Opening Valve, often referred to as a Whistle Valve has a body of heavy cast brass with internal components of machined brass. Springs are stainless steel. The standard valve disc and O-ring are Buna-N. Teflon and Viton seals are available on most sizes. Maximum working pressure, 400 psi, at 60°F. Maximum working temperature, 200°F. This valve has been in service for years on agricultural and industrial applications, for both compressed air and liquid. This valve is not recommended for steam service. Applications requiring manual operation at pressures above 150 psi, please refer to Kingston Model 305B Balanced Flow Control Valves.
