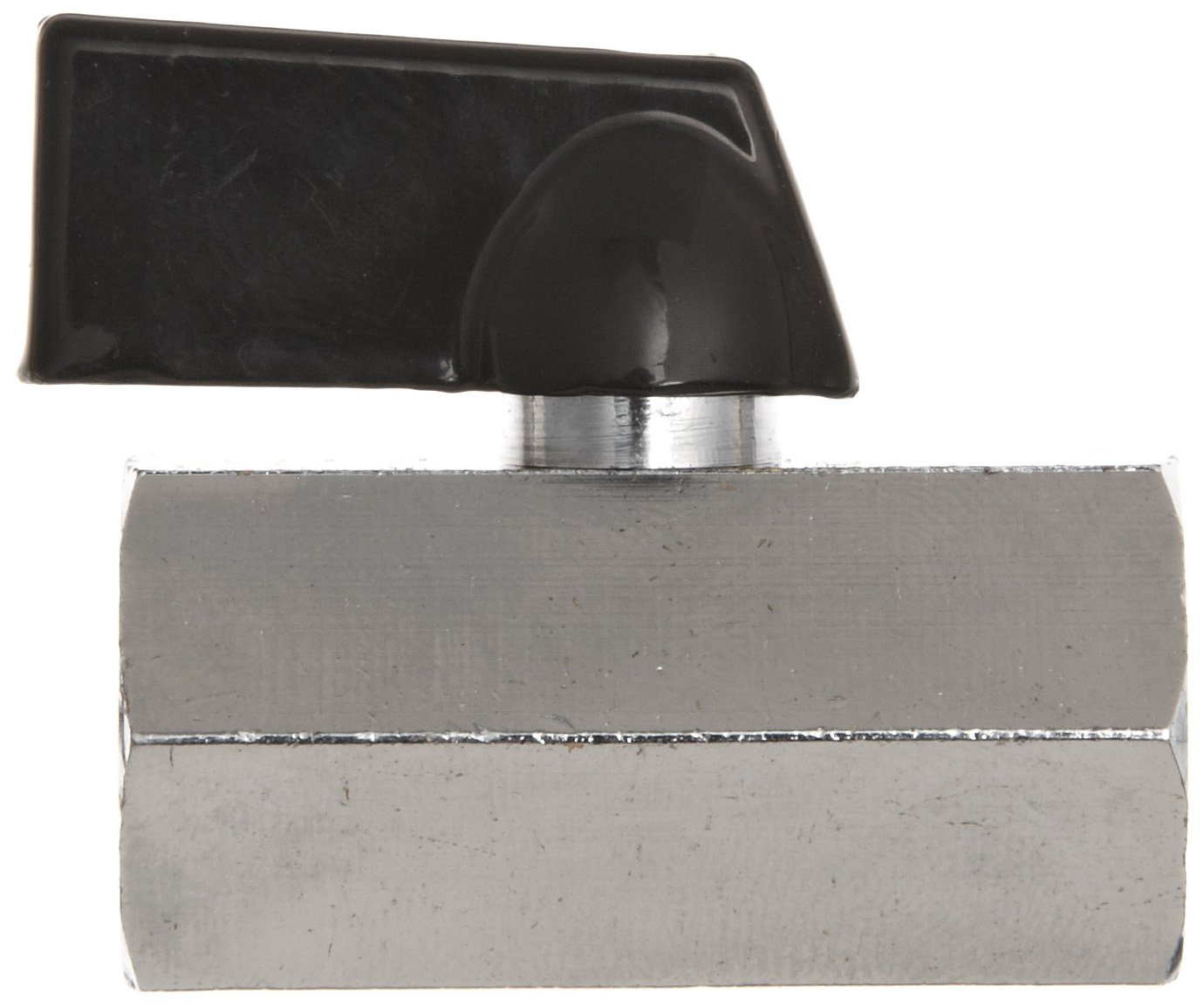

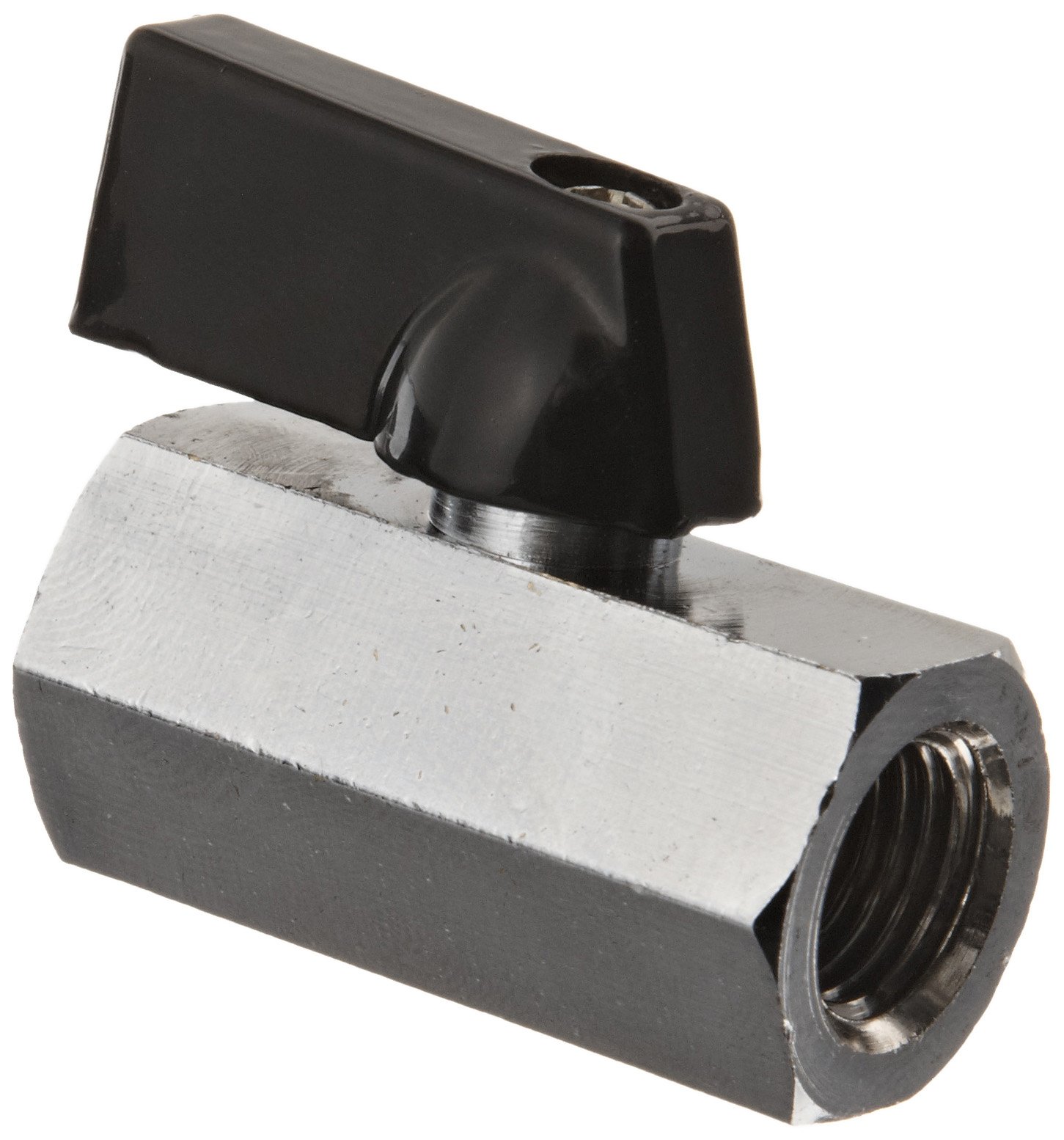

Kingston KMBVF Series Brass Mini Ball Valve, Lever, 1/4" NPT Female

Be the first to review this item

ASIN B006U4E7CW

Specifications for this item
Overall Height
1-9/64  inches
Item Shape
Inline
Part Number
KMBVF-2
Handle Type
Lever
Brand Name
Kingston Valves
Style Name
Threaded
Number of Items
1
Material Type
Brass
Maximum Steam Pressure Description
Not Rated
Size Name
1/4"
Manufacturer Series Number
KMBVF
Ball Material Type
Chrome plated Brass
Upper Temperature Range
400  Degrees Fahrenheit
Maximum Pressure
400  PSI
Connector Type
NPT Female
System of Measurement
Inch
Overall Length
1-39/64  inches
List price:
$7.01
Price:
$6.46
You save:
$0.55 (8%)
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 5 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Chrome-plated brass for higher corrosion resistance than regular brass or steel
  • Lever handle for on/off manual control
  • Full port flow for higher operating efficiency than standard port
  • Inline valve for connecting two pipes going in the same direction
  • Female NPT threads for connecting to male threaded pipe fittings

Package Details

Shipping Weight: 0.2 pounds
Package Size: 3.2 x 3 x 0.8 inches

Product Description

This Kingston KMBVF Series mini ball valve is made of chrome-plated brass for higher corrosion resistance than regular brass or steel, and has a lever handle for on/off manual control, and full port flow for higher operating efficiency than standard port. This inline valve has 1/4" female National Pipe Taper (NPT) threads for connecting two male threaded pipes going in the same direction. This full port ball valve is pressure rated to 400 pounds per square inch (psi) at a maximum operating temperature of 400 degrees F, and is suitable for use in air, water, or inert gas applications.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Kingston manufactures safety valves, check valves, and flow control valves for industrial applications. The company, founded in 1908, is headquartered in Torrance, CA.
