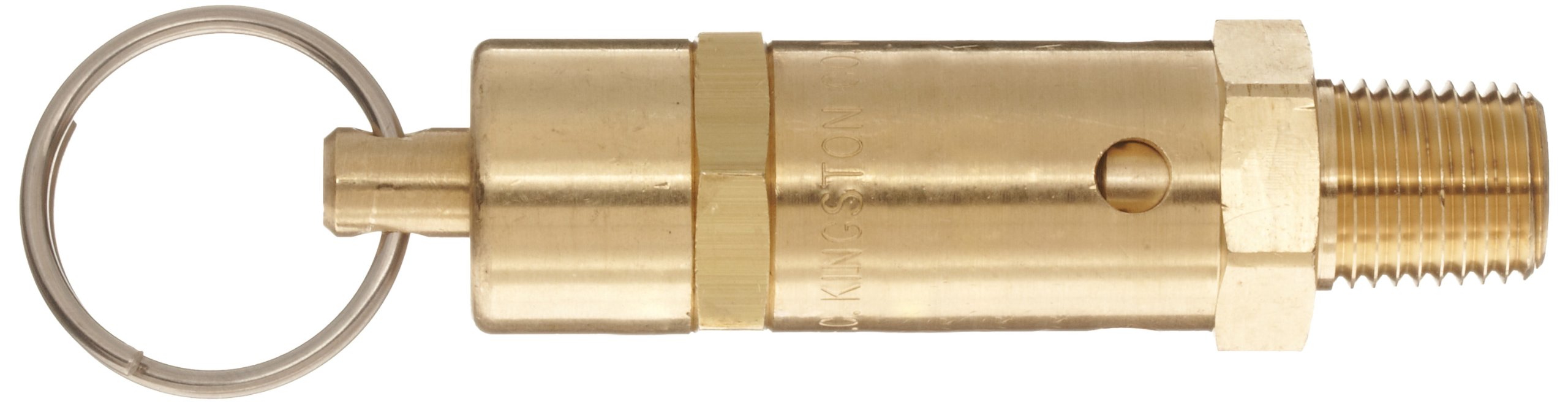

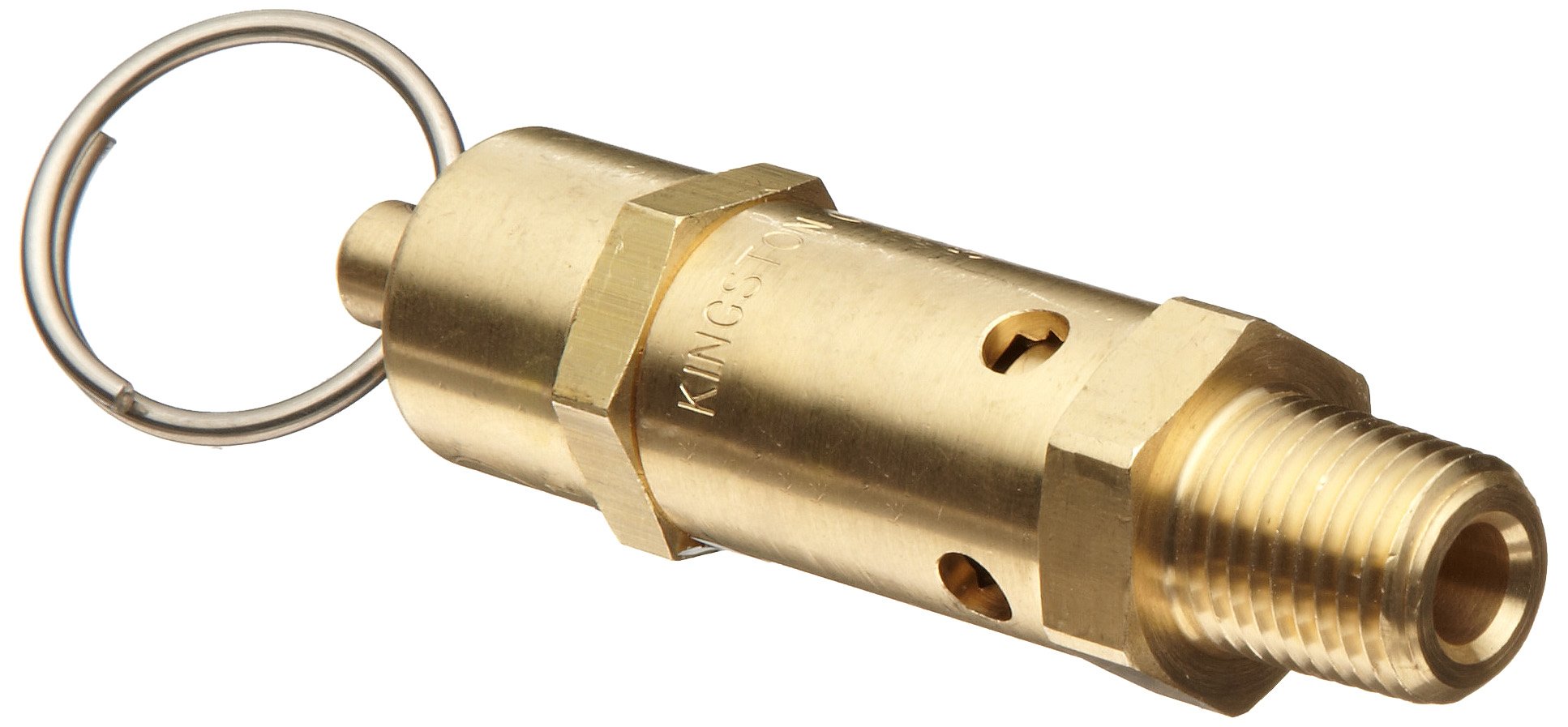

Kingston 112CSS Series Brass ASME-Code Safety Valve, 50 psi Set Pressure, 1/4" NPT Male

Be the first to review this item

ASIN B006U4G9WI

Specifications for this item
Overall Height
3-1/8  inches
Part Number
112CSS-2-050
Brand Name
Kingston Valves
Maximum Inlet Pressure
50  PSI
Specification Met
ASME
Style Name
Threaded
Number of Items
1
Material Type
Brass
Size Name
1/4"
Manufacturer Series Number
112CSS Series
Ball Material Type
Stainless Steel
Upper Temperature Range
400  Degrees Fahrenheit
Connector Type
NPT Male
UNSPSC Code
40141606
Maximum Working Pressure
50  PSI
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 18 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Brass Construction, ASTM B16
  • Every safety valve is set and tested at the factory
  • Heavy duty construction for lasting performance
  • Kingston quality design, engineering and precision manufacturing
  • 50 psi Set Pressure

Package Details

Shipping Weight: 0.25 pounds
Package Size: 4 x 1 x 0.9 inches

Product Description

The Kingston Model 112CSS Safety Valve is an ASME Code Certified, precision machined brass valve with a hard seat. This valve supports ASME Code applications up to 300 psi. It also features a stainless steel ball for durability and a pull ring for manual testing. As Kingston's most popular valve, it is suited for a wide variety of applications. Alternative versions to the Kingston Model 112CSS are available in electroless nickel plating, Model 112CSSEN and all Stainless Steel, Model 112CR. Any version of the Kingston Model 112C Series Safety Valve can be delivered with an ASME certified steam rating. The Kingston Model 112CSS Safety Valve, like every Kingston Safety Valve, is set and tested at factory for quality and dependability. The Kingston Model 112CSS Safety Valve is approved in Massachusetts and Washington DC and is stamped with UV & NB symbols. Registered in all Canadian provinces and territories. Set pressure range 25 to 300 psi (5 psi increments only). Maximum temperature 400°F.
