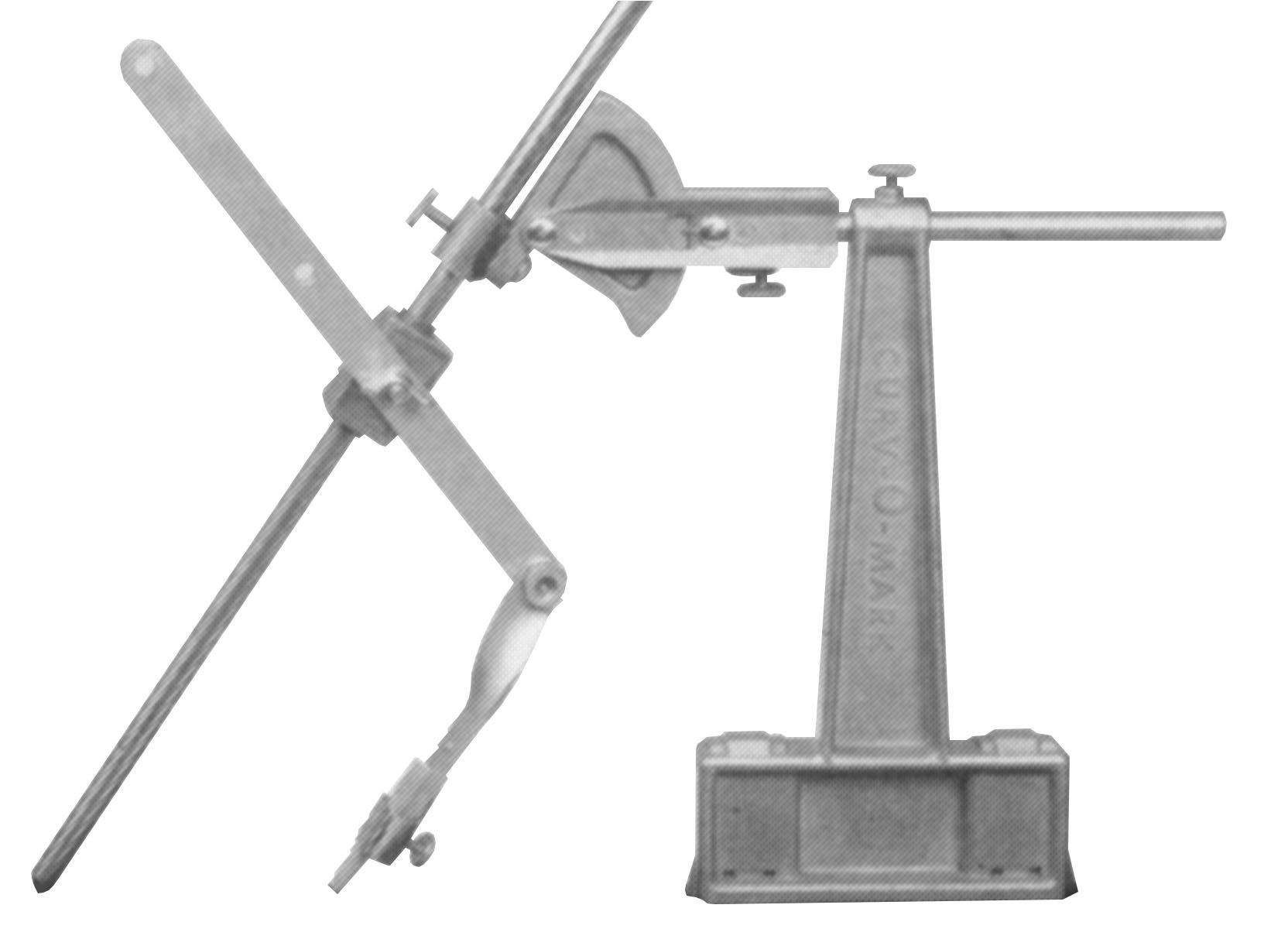

Jackson Safety 14784 Curv-O-Mark #14 Circle-Ellipse Projector

Be the first to review this item

ASIN B002FCI5Y4

Specifications for this item
Number of Items
1
Part Number
14784
Item Weight
3.88 pounds
UPC
024886073934
Brand Name
Jackson Safety
EAN
0024886073934
UNSPSC Code
27112300

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 1 day 1 hr 50 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Ideal for creating perfect circles, ellipses or oblong circles on any irregular flat or round surface
  • Attachments to develop larger diameter circles are available
  • Features a protractor with sliding rod and an adjustable lever to lock in the specified layout
  • Strong, 20-pound pull magnetic base holds the Projector in position during layout
  • Durable web strap (included) holds the unit secure on non-magnetic surfaces and can be used on either side of the vertical column

Package Details

Shipping Weight: 4.05 pounds
Package Size: 14 x 5.9 x 2.5 inches

Product Description

Ideal for creating perfect circles, ellipses or oblong circles on any irregular flat or round surface. Can be used to lay out lateral intersections of different diameter pipes, or to project circles from 1-1/2 to 18 in diameter on flat surfaces intersecting at angles from 0 to 70 degrees from vertical. Attachments to develop larger diameter circles are available. Features a protractor with sliding rod and an adjustable lever to lock in the specified layout. Strong, 20-pound pull magnetic base holds the Projector in position during layout. Durable web strap (included) holds the unit secure on non-magnetic surfaces and can be used on either side of the vertical column. The Projector is equipped with a soapstone crayon and also works with chalk, pencil or steel scribe.
