Kerick Valve MA3P2 PVC Mini Float Valve, Tank Mount, Adjustable Arm, 1.5 gpm at 60 psi, 3/8" NPT Male

Be the first to review this item

ASIN B0077RBBFM

Specifications for this item
Pressure Flow Rate
1.5  Gallons per Minute
Part Number
MA3P2
Brand Name
Kerick Valve
Specification Met
NSF Listed
Style Name
Threaded
Number of Items
1
Material Type
PVC (Polyvinyl Chloride)
Outside Diameter
3/8  inches
Size Name
3/8"
Manufacturer Series Number
M
Mounting Type
Tank
Maximum Pressure
100  PSI
Connector Type
NPT Male
UNSPSC Code
40141610
System of Measurement
Inch
Overall Length
1  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 23 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Estimated rate of flow up to 1.5 gpm at 60 psi
  • PVC for corrosion resistance
  • Tank mount with extended threads on inlet side of valve for mounting through tank wall
  • Includes 1.5x4" float ball attached to adjustable valve shutoff arm
  • 3/8" NPT male inlet and free-flow outlet

Package Details

Shipping Weight: 0.1 pounds
Package Size: 8 x 2.6 x 1.7 inches

Product Description

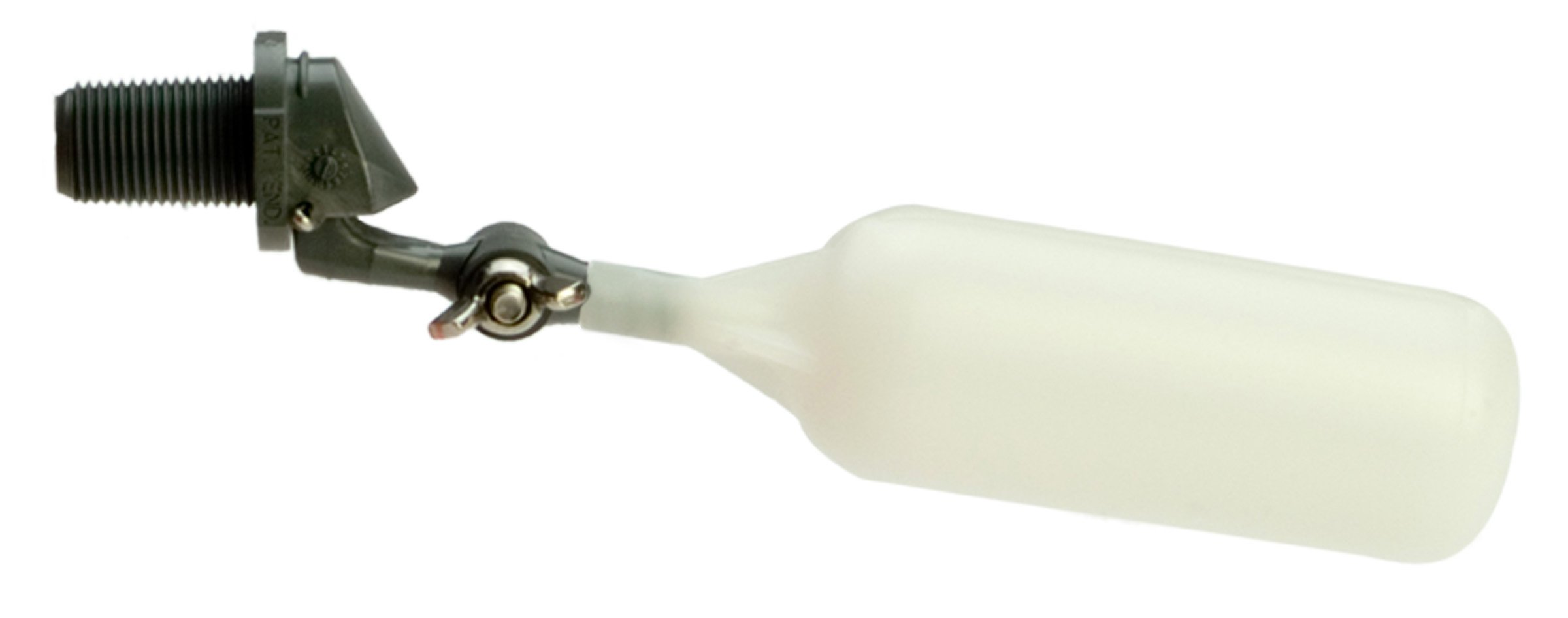

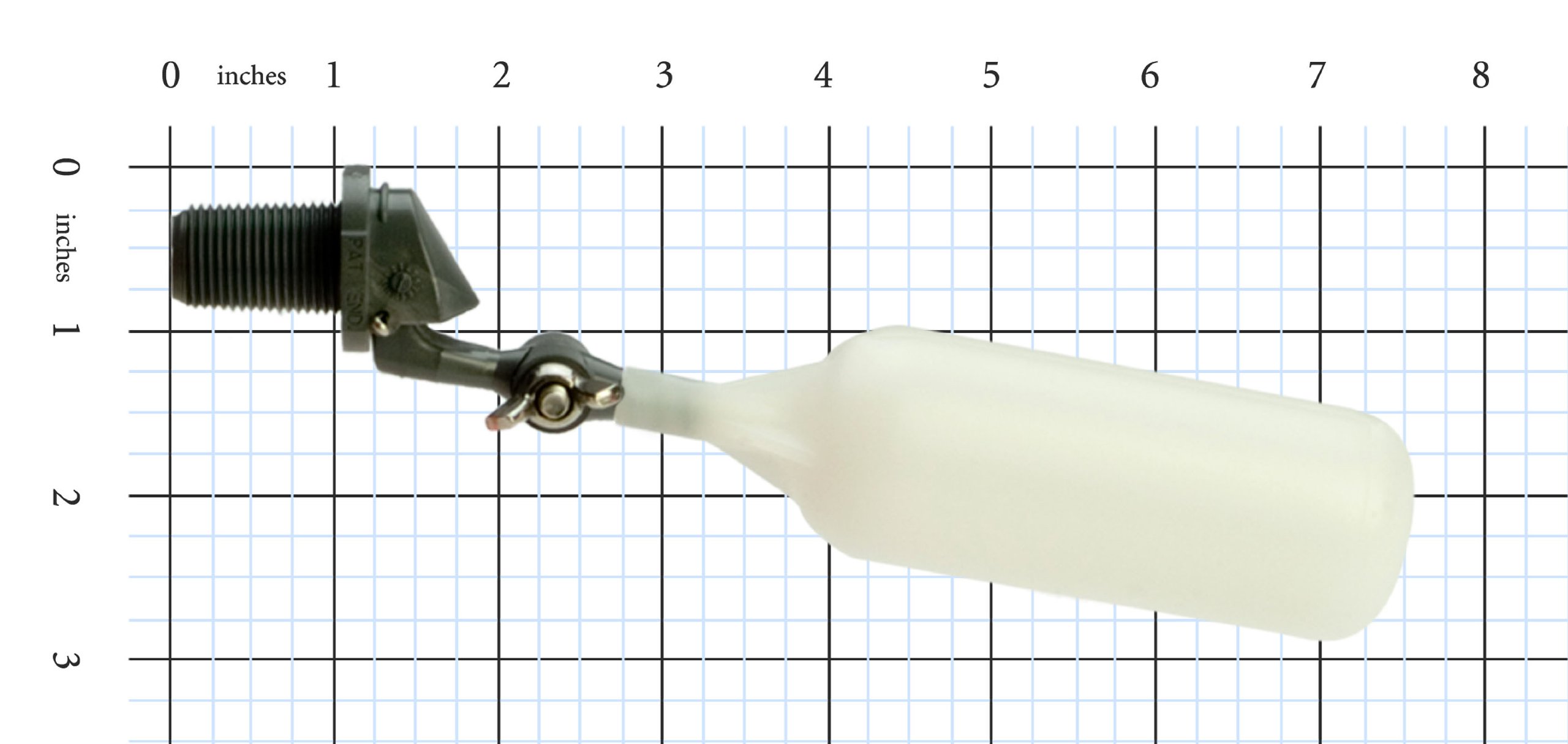

This Kerick MA3P2 float valve is a tank-mount style with an adjustable arm, and is made of PVC with 18-8 stainless steel hardware. The valve has a 0.093" orifice and its estimated rate of flow is 1.3 gallons per minute (gpm) at 40 pounds per square inch (psi) and 1.5 gpm at 60 psi. The valve inlet has 3/8" NPT male extended threads with a sealing washer and jam nut for mounting through a tank wall, and the valve outlet is free flowing. The valve is made of National Sanitation Foundation (NSF) approved PVC (polyvinyl chloride), its replaceable seals are made of TPE (thermoplastic elastomer) for durability and chemical resistance, and its hardware is made of 18-8 stainless steel for corrosion resistance. The valve has a 1.5" in diameter and 4" long polyethylene float attached to the adjustable shutoff lever arm. This float valve is suitable for use in a variety of applications, such as fountains and livestock water tanks.

Float valves use a rod and float ball attached to a valve shutoff lever to control flow in or out of a tank. The float ball rises or falls with the level of liquid in the tank, changing the angle of the valve shutoff lever. When the angle of the valve lever changes sufficiently, the valve opens or closes. Float valves are rated according to the volume of liquid that can flow through them at a particular pressure to ensure the tank can be refilled as quickly as it is emptied. The material that a float valve is constructed from must be suitable for the liquid in which it operates, which may be corrosive or at an extreme temperature. Float valves are used to automatically regulate the level of liquid within tanks in a variety of applications, such as fountains, livestock water tanks, cooling towers, and chemical manufacturing plants.

Kerick Valve manufactures fluid level control valves for industrial applications. The company, founded in 1994, is headquartered in Jacksonville, FL.

What's in the Box?
  • MA3P2 valve
  • PF154 float ball
