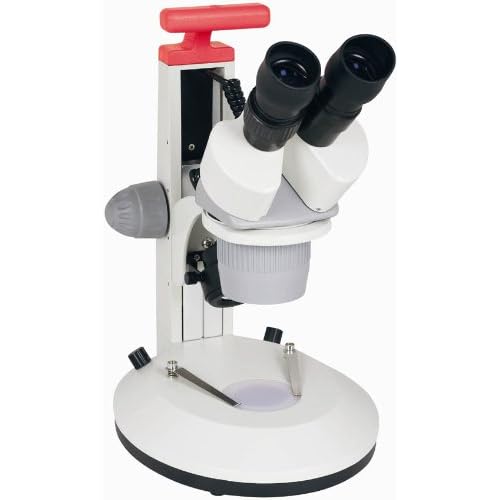

Ken-A-Vision VisionScope 2 Binocular Stereo Microscope

Be the first to review this item

Product Specifications
UNSPSC Code
41111703
Brand Name
Ken-A-Vision

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 10 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
1 B005KC4ISI yes $319.00 Buy Options
1 B005KC4AUY yes $319.00 Buy Options
1 B005KC4HKW yes $317.95 Buy Options
1 B005KC4FX6 yes $319.00 Buy Options
1 B005KC4EG4 yes $319.00 Buy Options
1 B005KC4CL6 yes $319.00 Buy Options

Key Features

  • Stereo microscope for inspection of large specimens and objects creates three-dimensional images
  • Binocular viewing head with 30-degree incline and variable width to ease eye strain and for a more comprehensive view
  • Two eyepieces and choice of lens objectives for a range of total magnification
  • Upper and lower cool LED lighting with on/off switch and dimmer control
  • Powered by 12V DC, detachable power supply

Product Description

The Ken-A-Vision T-VisionScope 2 binocular stereo microscope has upper and lower LED lighting with dimmer and on/off switch, and two eyepieces to create three-dimensional images for the inspection of large specimens and objects. The binocular head has a fixed 30-degree incline and variable width eyepieces for comfortable viewing, and a choice of total magnification up to 80x. Separate coaxial knobs for coarse and fine focus and rack-and-pinion gearing provide sharp focus. The stage has clips to hold the slide in place and black, white, and frosted stage plates for a range of viewing options. The built-in cool white LED light has a dimmer and on/off switch for a range of lighting options. The single-cast aluminum body has a built-in, carrying handle for strength and durability. The microscope includes a cover, power supply with multiple plug clips, and instructions.

Specifications
Eyepiece Two 26mm eyepieces with humidity and climate protection coating
Viewing configuration Binocular with 30 degree incline, 360 degree rotation, and interpupillary adjustment
Nosepiece Built-in turret-designed optics with working distance of 36cm
Illumination Upper and lower LED cool lighting with on/off switch and dimmer control
Focus Oversize fine and coarse focus knobs and 8cm focal range
Stage Two 6cm frosted glass and black and white stage plates
Gearing Rack and pinion
*Overall dimensions 40.0 x 25.4 x 21.6 cm/15.75 x 10 x 8.5 inches (H x W x D)
Weight 2.95kg/6.5lb.
Illumination power source Low voltage external power supply 120 ~ 240V + or - 500mA, detachable
Certificates ISO:9001 – 2000, MiL Std 105e, CE, CSA, RoHS CP

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ken-A-Vision Manufacturing, founded in 1957 and headquartered in Kansas City, MO, manufactures educational products such as microscopes, cameras, and software.

What’s in the Box?
  • Ken-A-Vision binocular research microscope
  • Eyepieces (2)
  • Eyepiece guards (2)
  • Microscope head
  • Frosted stage plate
  • Reversible black or white stage plate
  • Objective cover
  • Power supply with multiple plug clips
  • Microscope cover
  • Instructions
