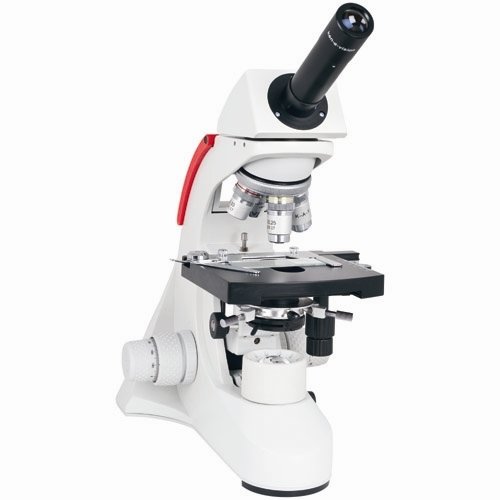

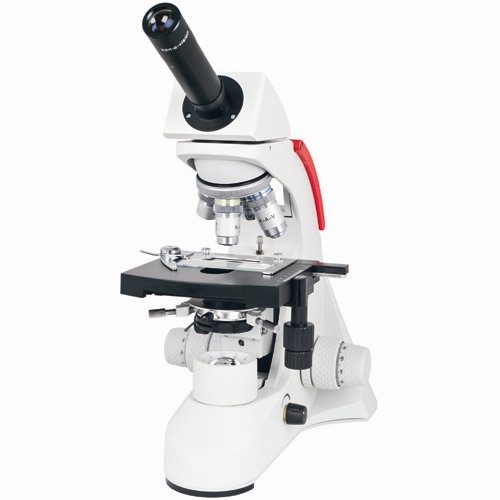

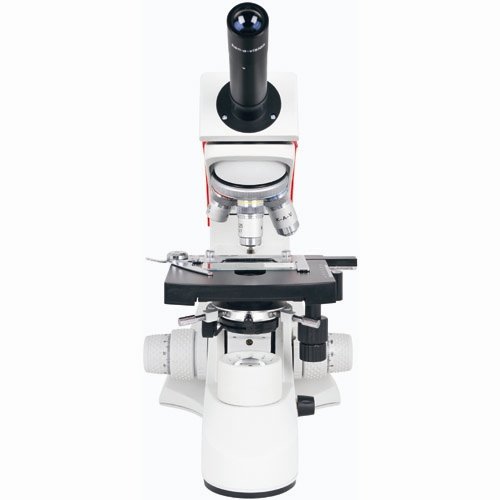

Ken-A-Vision T-19012C Comprehensive Scope 2 - Cordless Monocular Compound Microscope with Mechanical Stage, 10× Eyepiece

Be the first to review this item

ASIN B005KC4TUK

Specifications for this item
Number of Items
1
Overall Height
14  inches
Overall Width
7  inches
Part Number
T-19012C
UPC
012345678912
Brand Name
Ken-A-Vision
Size Name
4×, 10×, 40×S, 100×S, DIN achromat objective lenses
EAN
0012345678912
Overall Length
10  inches
List price:
$449.00
Price:
$381.65
You save:
$67.35 (15%)
Quantity:

Currently Unavailable We don't know when or if this item will be back in stock.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Compound microscope with mechanical stage provides high magnification for biological use and educational applications
  • Monocular viewing head with fixed 30-degree vertical inclination, and 360-degree rotation capability
  • 10x eyepiece with reverse-mounted 4-position stop and reverse-mounted 4x, 10x, 40xS, and 100xS DIN achromatic lens objectives with humidity and climate control coating
  • Abbe condenser and bright and cool LED white light with dimmer and on/off switch
  • Cordless microscope has a built-in rechargeable NiMH battery

Package Details

Shipping Weight: 12.05 pounds
Package Size: 20 x 15.9 x 10 inches

Product Description

The Ken-A-Vision T-19012C Comprehensive Scope 2 cordless, monocular compound microscope with a mechanical stage has LED lighting with dimmer control (rheostat) and on/off switch, a 10x widefield eyepiece with reverse-mounted 4x, 10x, 40xS, and 100xS DIN achromatic lens objectives with humidity and climate control protection, and is designed for biological use and educational applications. The monocular head has a fixed 30-degree incline and 360 degree rotation for comfortable viewing, and a total magnification up to 1000x. Separate coaxial knobs for coarse and fine focus provide sharp focus. The mechanical stage has clips to hold the slide in place, a stop to prevent slide damage, and separate knobs for X- and Y-axis adjustment. The Abbe condenser and built-in bright and cool white LED light has dimmer control (rheostat) with a separate on/off switch for a range of lighting options. The single-cast aluminum body has a built-in, retractable, carrying handle for strength and durability. A built-in rechargeable NiMH battery (included) enables the microscope to be used away from power sources. The microscope includes an allen wrench, cover, power supply, and instructions.

Specifications
Eyepiece 10x widefield
Objective lenses 4x, 10x, 40xS, and 100xS DIN achromatic
Viewing configuration Monocular with 30 degree incline and 360 degree rotation
Nosepiece Reverse 4-hole with four-position ball-bearing stop and 360 degree rotation
Illumination Bright and cool LED white light with dimmer control and on/off switch
Condenser Abbe
Focus Coaxial coarse and fine focus knobs
Stage 130 x 120 mm mechanical stage with stop, slide clips, and separate knobs X- and Y-axis adjustment
Housing construction Single-cast aluminum
Illumination power source Low voltage external power supply 120 ~ 240V 50/60 H2 0.2A ± DC 7.5V 800mA, with rechargeable battery
*Overall dimensions 35.6 x 18 x 25.4 cm/14 x 7 x 10 inches
Weight 4.7kgs/10.4lbs
Certificates ISO:9001 – 2000, CE, CSA, RoHS

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ken-A-Vision Manufacturing, founded in 1957 and headquartered in Kansas City, MO, manufactures educational products such as microscopes, cameras, and software.

What’s in the Box?
  • Ken-A-Vision T-19012C cordless microscope
  • Allen wrench
  • Microscope cover
  • Power supply
  • Instructions
